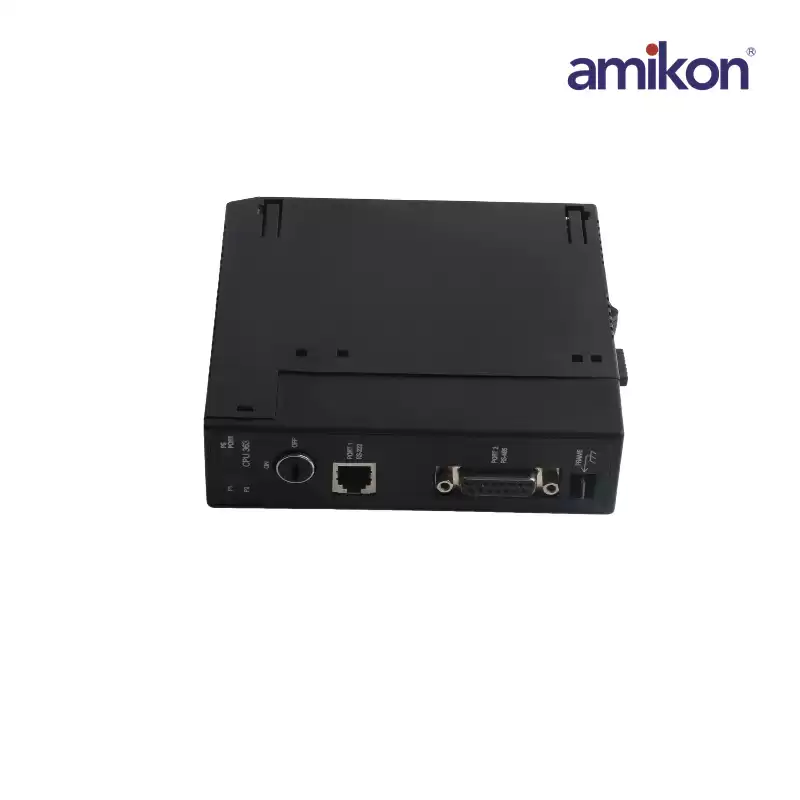

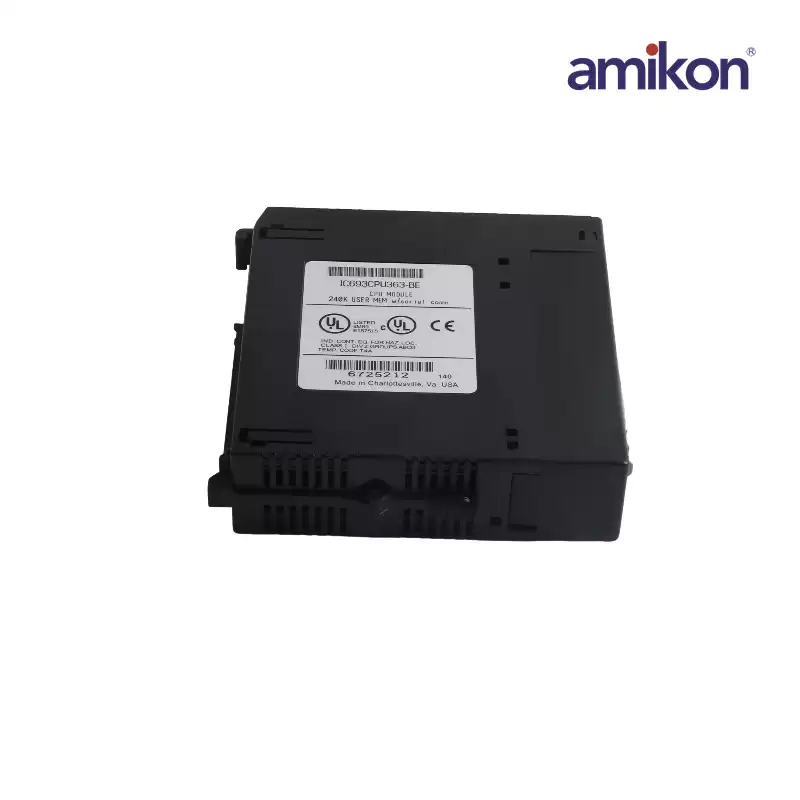

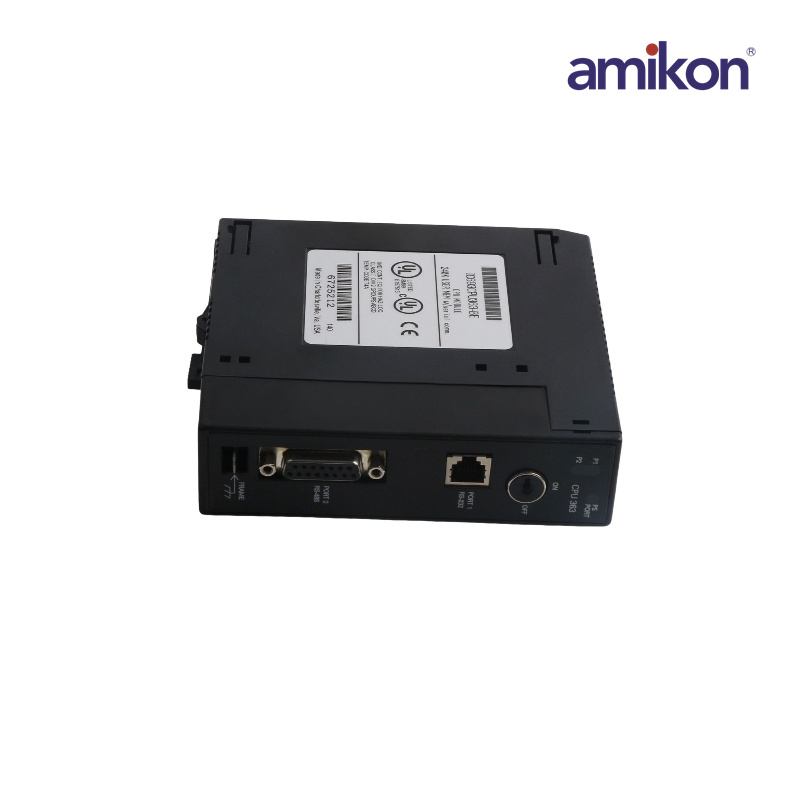

General Electric IC693CPU363 cpu module
|
|
Dimensions: 3.5x13x13.5cm
|
Weight: 0.34kg
|
Operating temperature ：0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit) |
|
Serial port ：RS-485 (via power supply）
|
Storage temperature ：-40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit)
|
|
IC693CPU363
|
The IC693CPU363 features a 80386EX processor with clock speed of 25 MHz and typical scan rate of 0.22 ms per 1K for Boolean contacts. The embedded memory of this controller amounts to 240KB which is internally partitioned to accommodate different registers and internal functions. It has Two (2) serial ports, One (1) port having a physical interface of RJ45 while the other port having a 15-pin sub-D connector, both supporting RS232 and RS485 communication standards. It also has a tertiary RS485 port which is situated on the power supply. All these ports allow download, upload of user program, perform commissioning tasks and fine tuning of the program. These ports operate independently and may be configured for simultaneous operation to accommodate other data exchange functions such as communication with visualization components. Other communication protocols supported by the IC693CPU363 are Ethernet, FIP, Profibus, GBC, GCM, GCM+ option modules.
|
