Dimensions: 4cmx18cmx17.2cm
|
Weight:1.26kg
|
Product Package: Original Package
|
|
Condition: 100% New Original
|
Product Origin: USA
|
|
Full Description: New Factory Package Cleaned and Tested. With 1 Year Warranty.
|
|

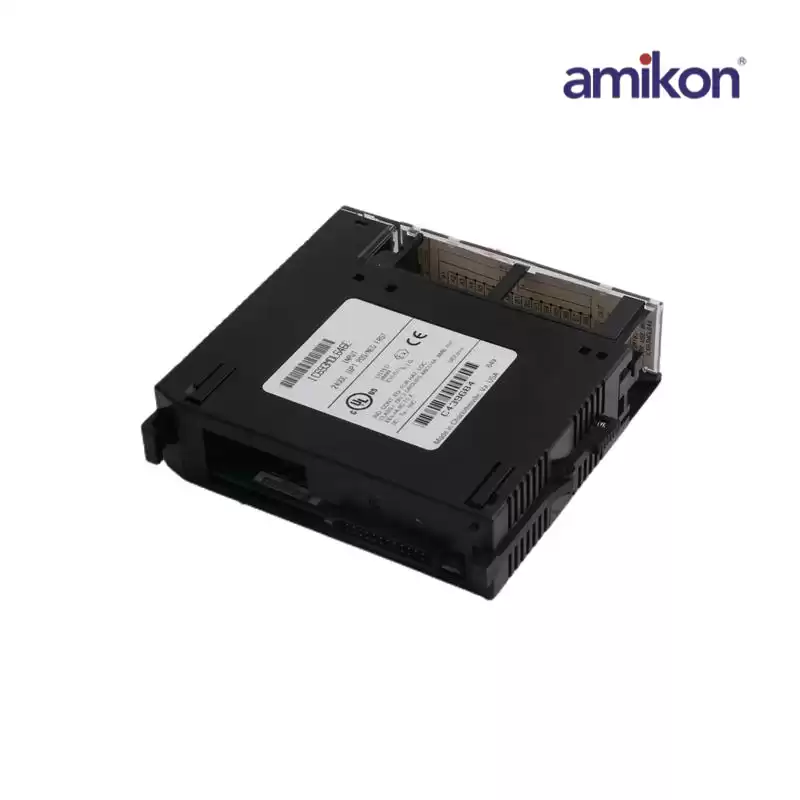

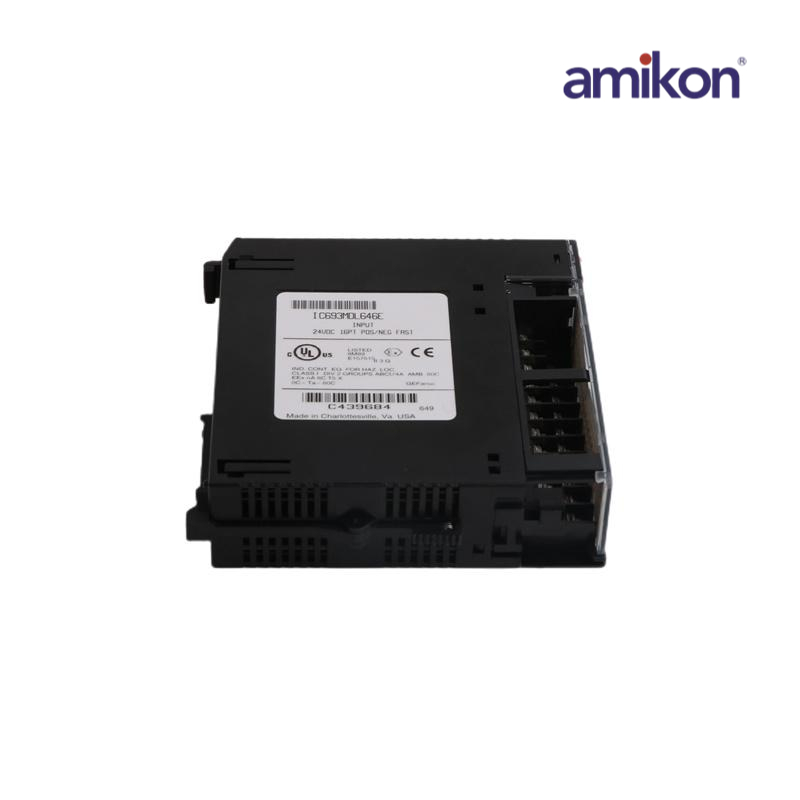

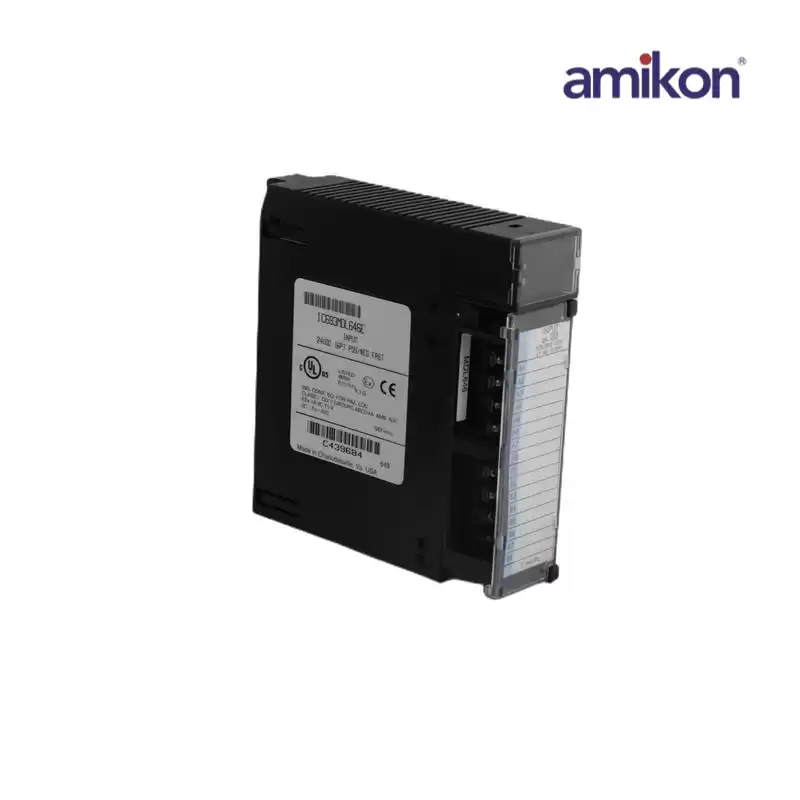

IC693MDL646
|
The IC693MDL646 is designed to have either positive Logic or negative logic characteristics. Input characteristics make it compatible with a wide array of user supplied input devices such as limit switches, push buttons as well as proximity switches. Power to run the field devices is normally supplied by the user or an isolated +24VDC supply on the power supply.
This IC693MDL646 module can be installed in any I/O slot in a Series 90-30 PLC system. Other specifications include an input voltage range of 0 to 30 VDC and input current of 7 mA. The on-state voltage is between 11.5 to 30 V and on-state voltage 0- +5V DC. On-state current rating is 3.2mA minimum and off-state 1.1mA maximum.
|
