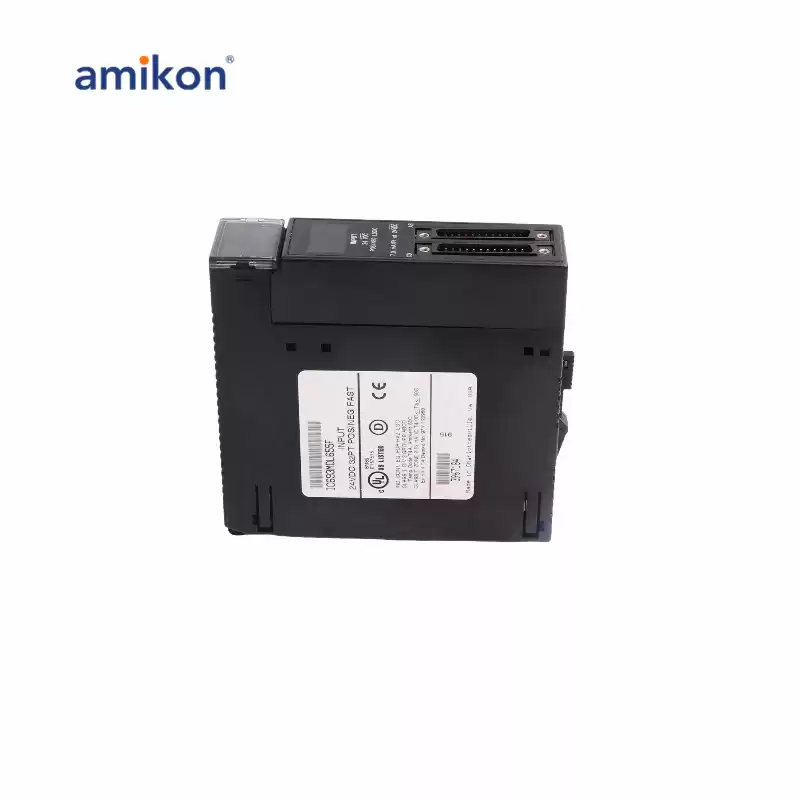

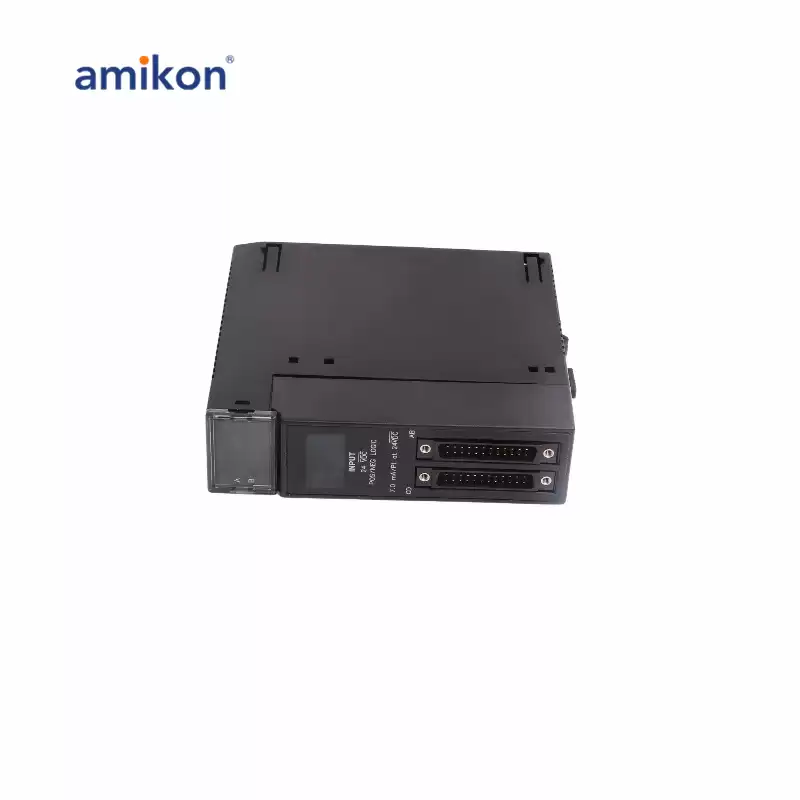

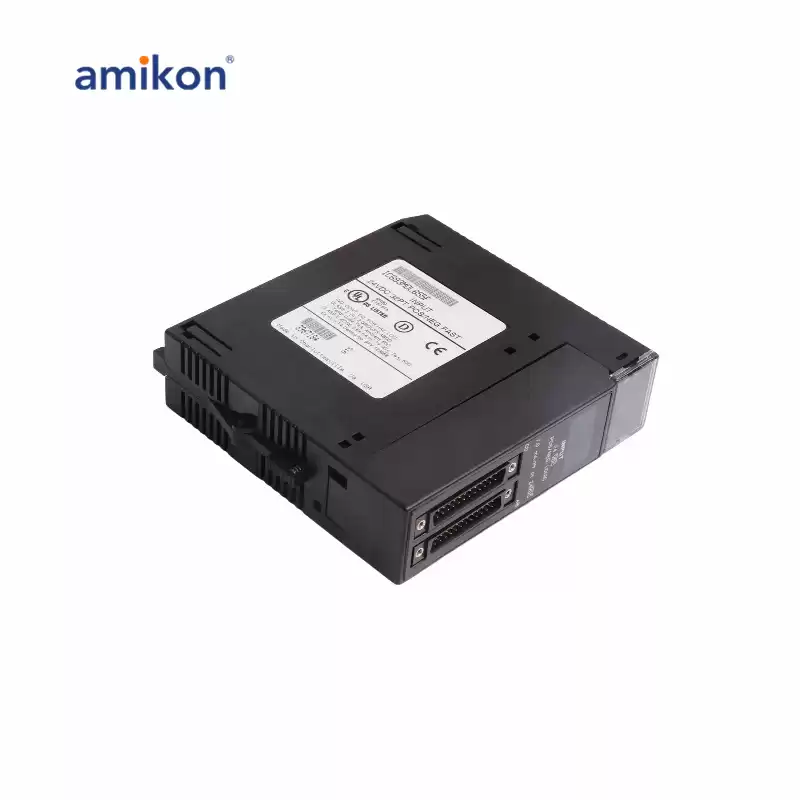

The IC693MDL655 module is a 24 Volts DC input module. This module features positive or negative logic and it comes with 32 input points which are divided into 4 groups of 8 inputs each. The IC693MDL655 module features an input voltage range of 0 to 30 Volts DC. The isolation is rated as 1500 Volts between the field side and the logic side.
|
|
|
IC693MDL655 Data sheet
|
High-density, digital input module that is part of Emerson Automation’s Series 90-30 Programmable Logic Controller (PLC) platform. This input module is designed to be installed to any Series 90-30 baseplate whether CPU baseplate, I/O Expansion baseplate or Remote I/O baseplate.
|
|
It is directly mounted to any available I/O slot of a 5-slot or 10-slot baseplate and occupies single sot only. This module has been designed to work with the Series 90-30 Programmable Logic Controller. It has 32 discrete input points, divided into four groups of eight.
|
|
They are able to operate with either positive or negative logic. There are opto-couplers on this module, which provide backplane isolation between the field side and logic side.
|
|
