Technical Specifications for IC693MDL730
|
Manufacturer
|
General Electric
|
|
Condition
|
100% New Original
|
|
Brand
|
General Electric
|
Number of Points
|
8
|
|
Part Number
|
IC693MDL730
|
Inrush current
|
9.4 A For 10 ms
|
|
Product Name
|
Output module
|
Series
|
Series 90-30
|
|
Manufacture Year
|
2022
|
output voltage
|
12 to 24 VDC
|
|
Product Package
|
Original Package
|
Shipping term
|
TNT DHL FEDEX EMS UPS
|

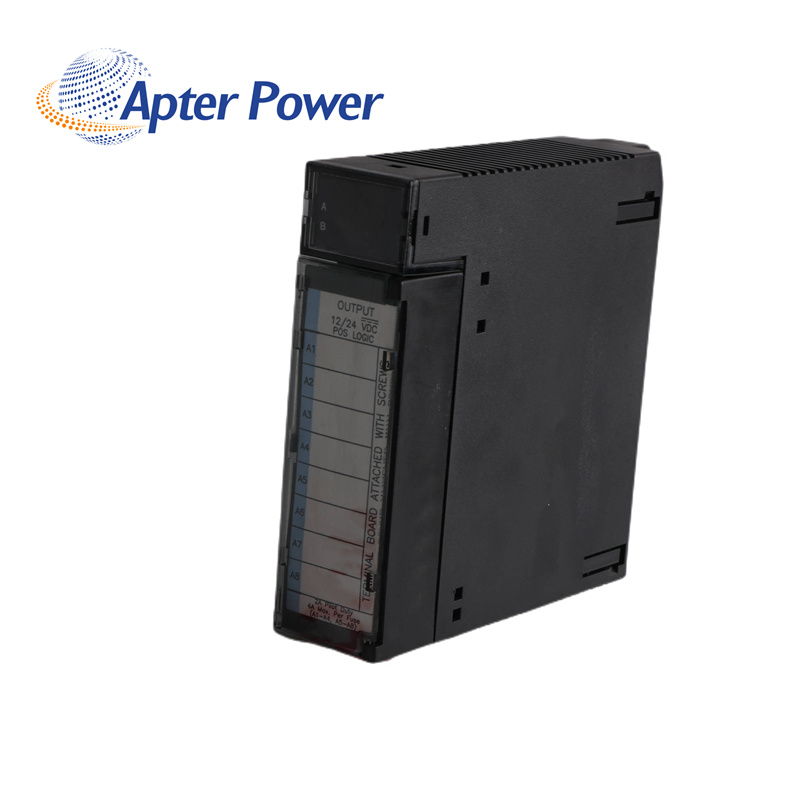

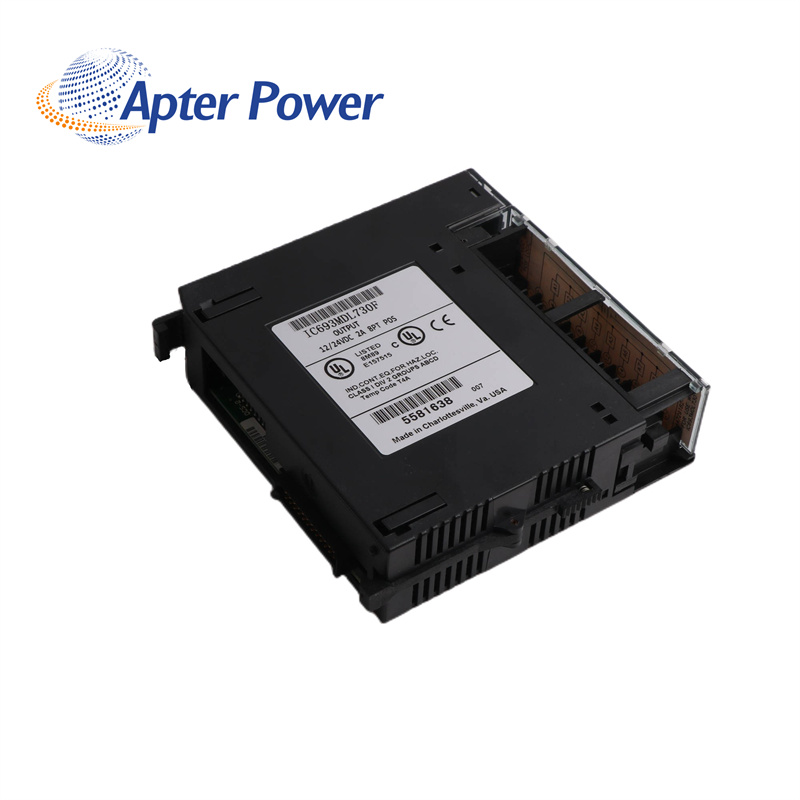

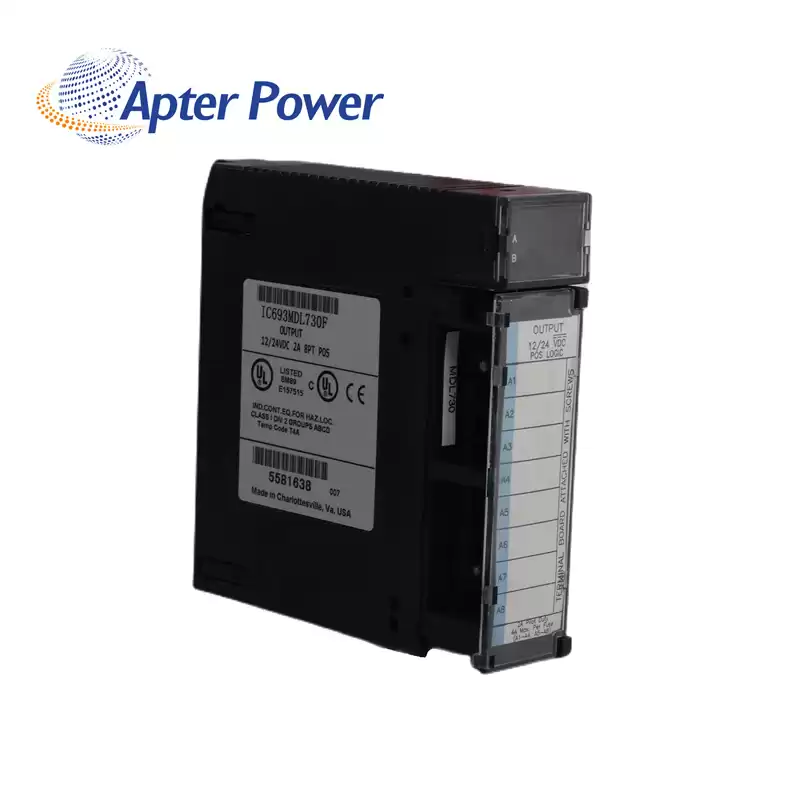

About IC693MDL730
|
The IC693MDL730 comes with isolation between the field side and logic side amounting to 1500 Volts. Output channels have an inrush current rating of 9.4 Amperes for 10 ms; maximum output voltage drop of 12 Volts; maximum off-state leakage current of 1 mA along with a typical On and off response time of 2ms for each transition.
The IC693MDL730 is compatible for use with a variety of electrical loads particularly motor starters, solenoids, and indicators. An external power supply must be wired to the module to provide operational power. The IC693MDL730 PLC module comes with a 12 to 24 Volts DC voltage rating with positive logic and 2 Amps of output current.The component features DC power and it comes with 8 points. The unit features 2 Amps of load current per point while the response time is rated as 2 milliseconds ON and 2 milliseconds OFF.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to replace.
