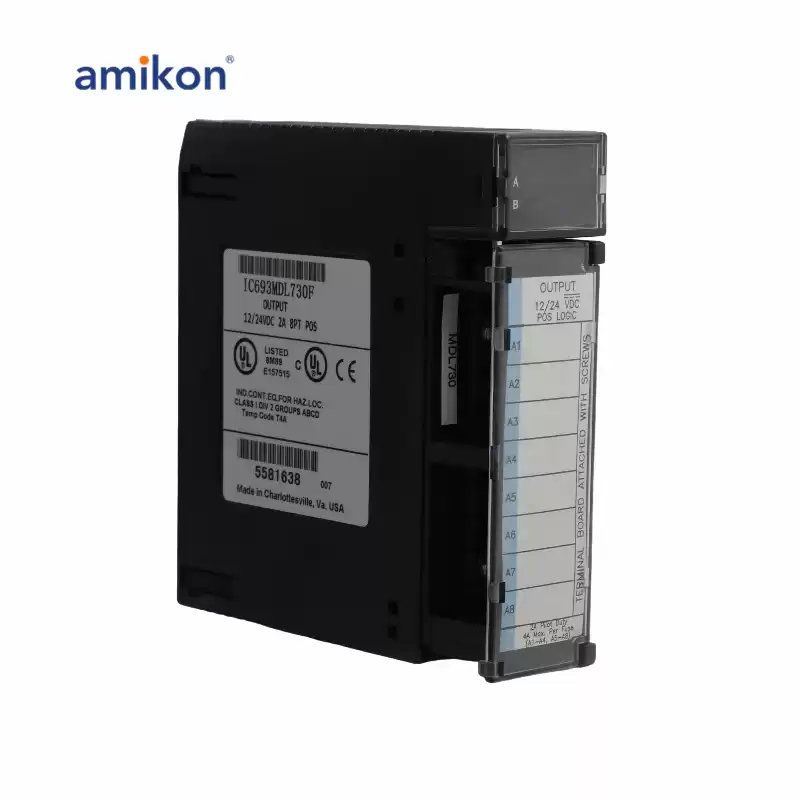

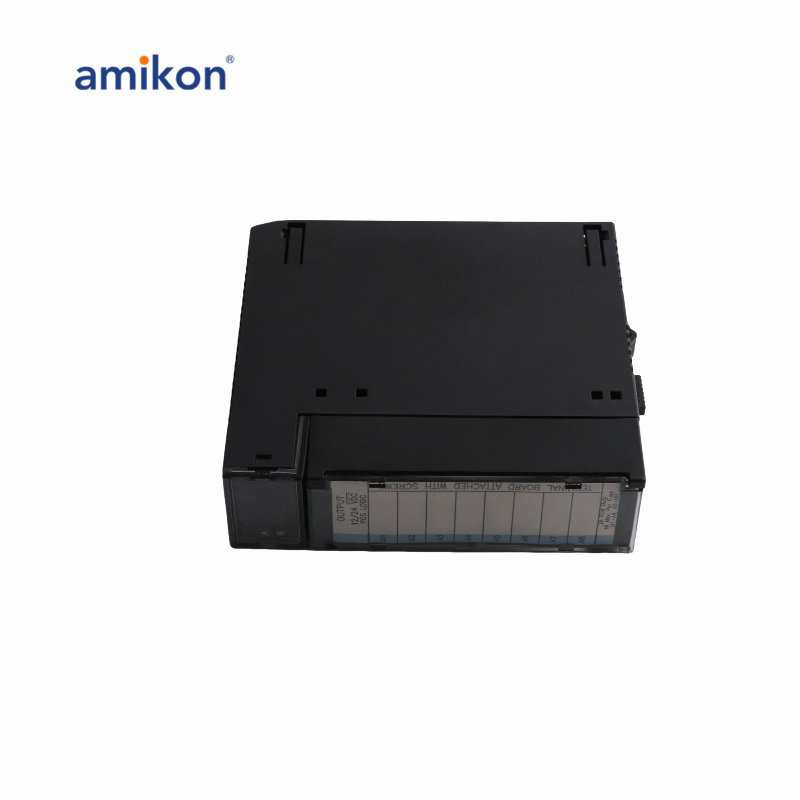

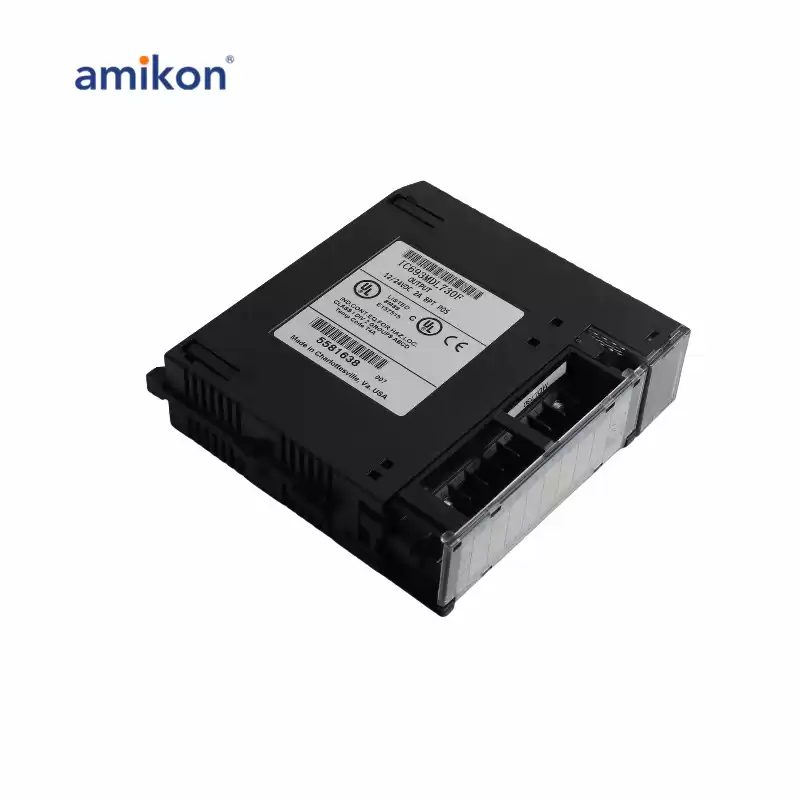

The IC693MDL730 comes with isolation between the field side and logic side amounting to 1500 Volts. Output channels have an inrush current rating of 9.4 Amperes for 10 ms; maximum output voltage drop of 12 Volts; maximum off-state leakage current of 1 mA along with a typical On and off response time of 2ms for each transition.
|
|
|
IC693MDL730 Data sheet
|
compatible for use with a variety of electrical loads particularly motor starters, solenoids, and indicators. An external power supply must be wired to the module to provide operational power. The IC693MDL730 PLC module comes with a 12 to 24 Volts DC voltage rating with positive logic and 2 Amps of output current.
|
|
The component features DC power and it comes with 8 points. The unit features 2 Amps of load current per point while the response time is rated as 2 milliseconds ON and 2 milliseconds OFF.
|
|
12/24 Volt DC Positive Logic Output.Fast ship and Good quantity Product description.The 12/24 volt DC Positive Logic 2 Amp Output module for the Series 90-30 ProgrammableLogic Controller provides 8 output points in one group with a common power input terminal.
|
|
