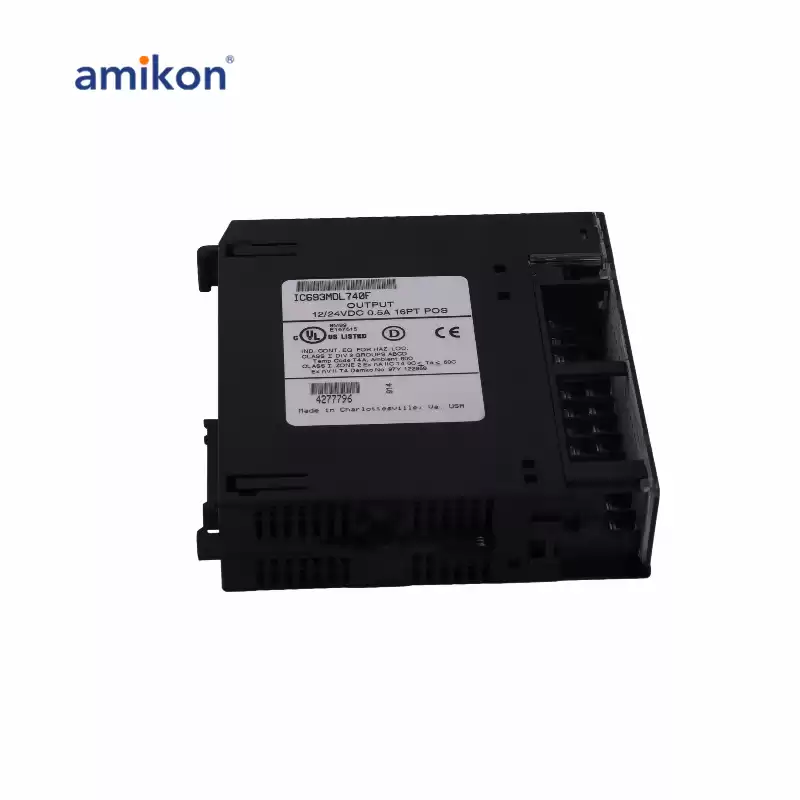

IC693MDL740 is a 12/24 volt DC Positive Logic 0.5 Amp Output module for the Series 90-30 Programmable Logic Controller provides 16 output points in two groups of eight with a common power output terminal for each group. This output module is designed to have positive logic characteristics in that it sources current to the loads from the user common or positive power bus.
|
|
|
IC693MDL740 Data sheet
|
The output device is connected between the negative power bus and the module output. The output characteristics are compatible with a wide range of user-supplied load devices, such as: motor starters, solenoids, and indicators. Power to operate the field devices must be supplied by the user.
|
|
An insert goes between the inside and outside surface of the hinged door. The surface towards the inside of the module (when the hinged door is closed) has circuit wiring information, and circuit identification information can be recorded on the outside surface.
|
|
The output electronic device is placed in between the output module and the power bus. The rated voltage required for the IC693MDL750 module is 12/24 volts DC, and the output current is a maximum of 0.5 amps per point with a maximum of 2 amps per common.
|
|
