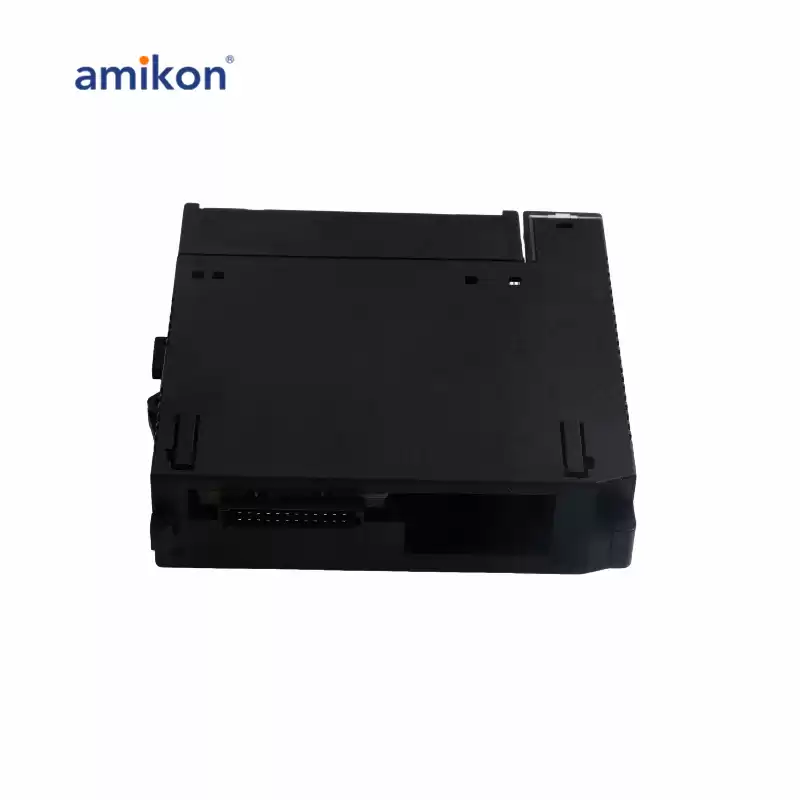

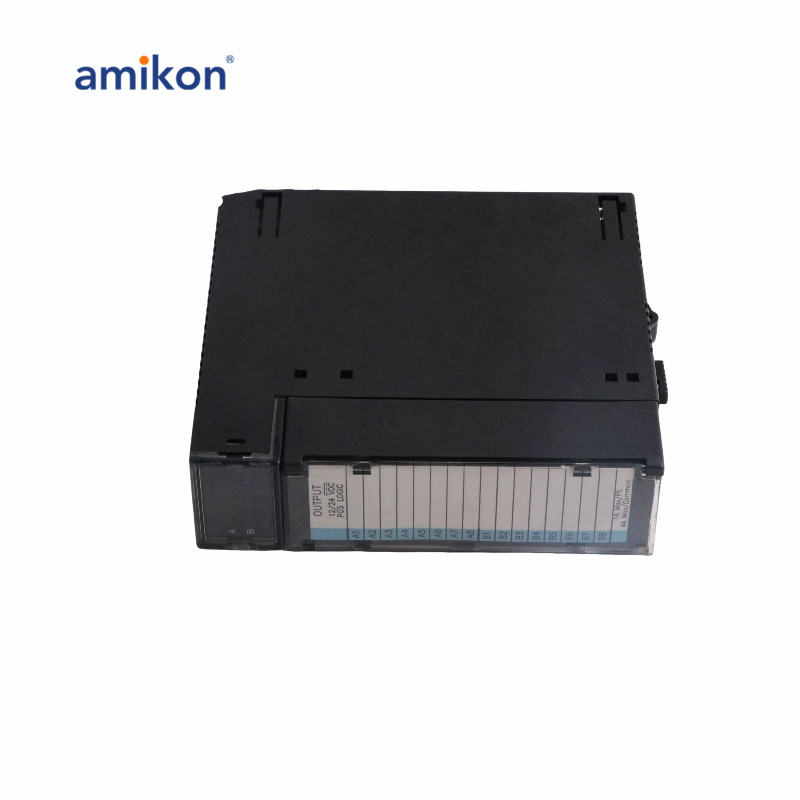

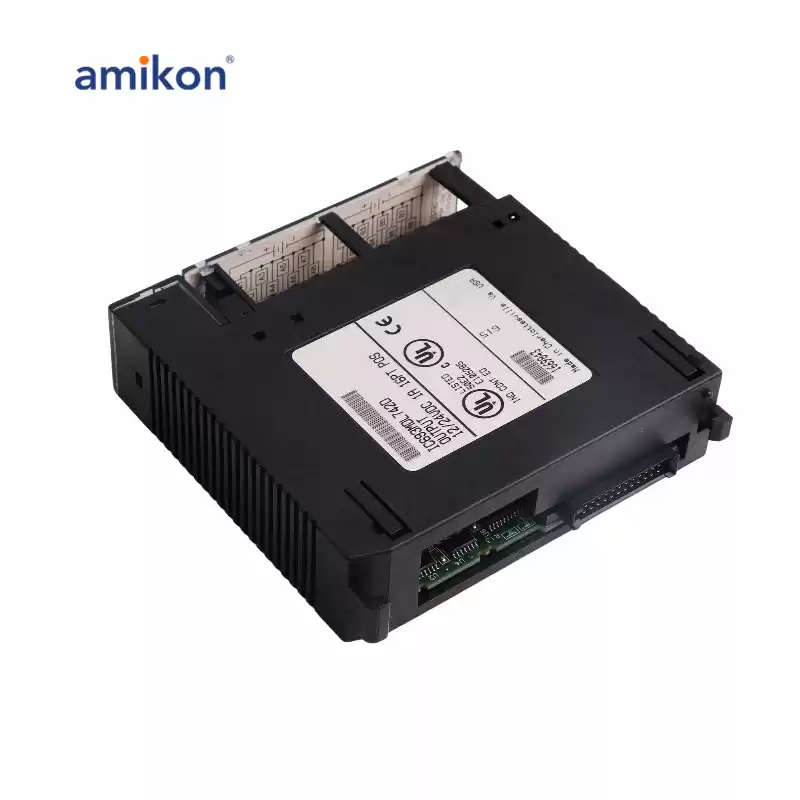

IC693MDL742 is a Series 90-30 component module. This module is specifically a discrete output module with integral Electronic Short Circuit Protection (ESCP). This module supports Positive logic wiring configuration and delivers an output voltage range of 12-24 VDC, +20%, -15%. Similarly, it has output current ratings of 1 Ampere per point, maximum; Maximum of 4 Amperes per group when operated at 50 Degree Celsius, and 3 Amperes per group at 60 Degree Celsius.
|
|
|
IC693MDL742 Data sheet
|
module is a 12 to 24 Volts DC positive logic Electronic Short Circuit Protection (ESCP) output module. The IC693MDL742 module provides 16 output points arranged in 2 groups of 8. Each group has a common power output terminal.
|
|
module is a 12 to 24 Volts DC positive logic Electronic Short Circuit Protection (ESCP) output module. The IC693MDL742 module provides 16 output points arranged in 2 groups of 8. Each group has a common power output terminal.
|
|
Among the load devices that are compatible with the output characteristics of this module are solenoids, indicators and motor starters. Output devices like these must be connected between the negative power bus and the module output.
|
|
