Technical Specifications for IC693MDL752
|
Manufacturer
|
General Electric
|
|
Condition
|
100% New Original
|
|
Brand
|
General Electric
|
On-state
|
4.6 amps
|
|
Part Number
|
IC693MDL752
|
Voltage Range
|
0.2 to 28.8 volts DC
|
|
Product Name
|
Output Module
|
Response Time
|
0.5 ms
|
|
Manufacture Year
|
2022
|
Input Current
|
25 mA
|
|
Product Package
|
Original Package
|
Shipping term
|
TNT DHL FEDEX EMS UPS
|

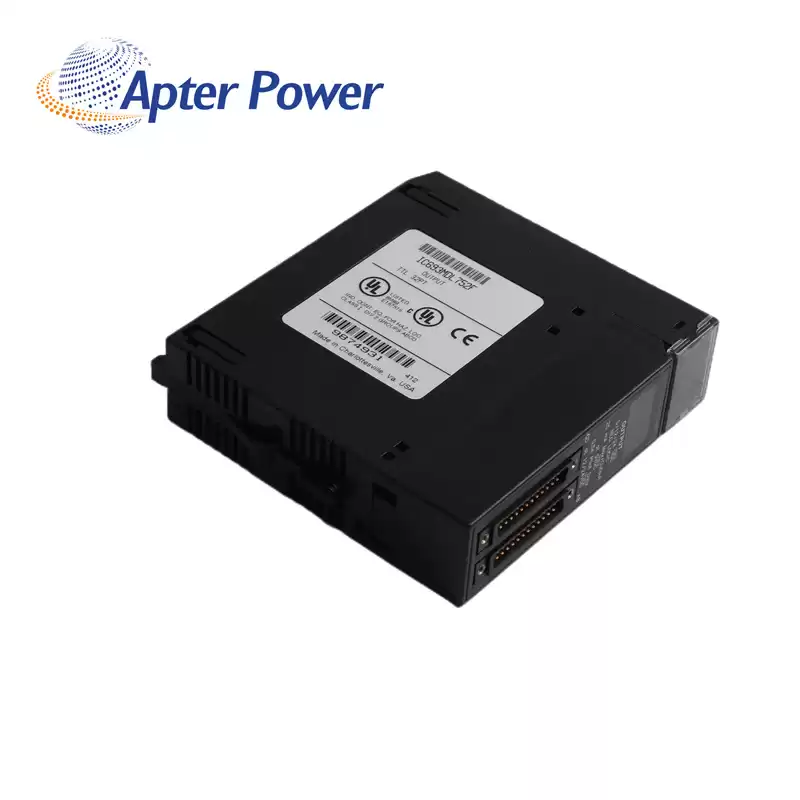

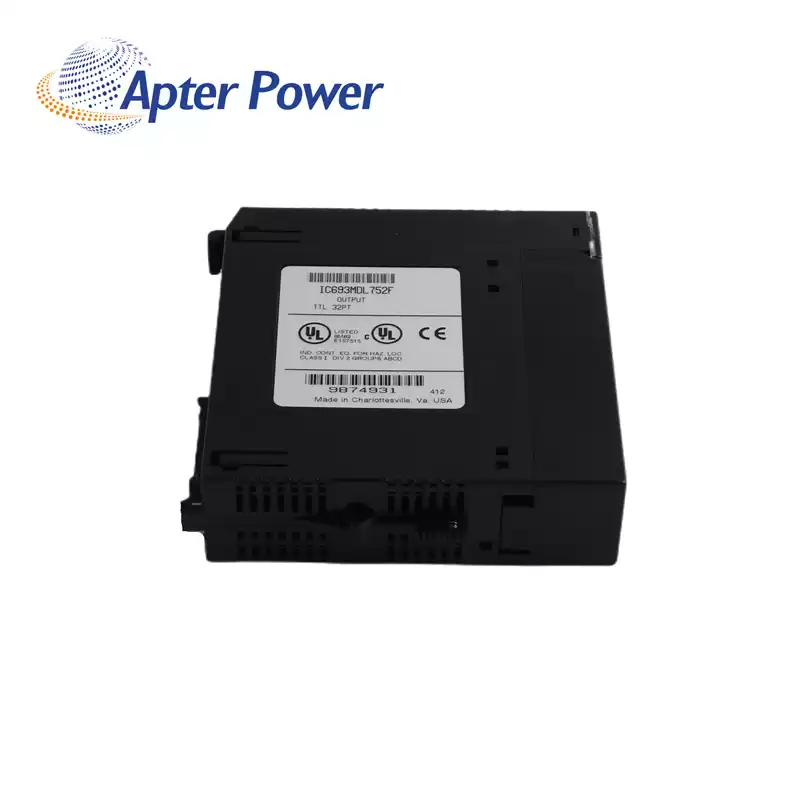

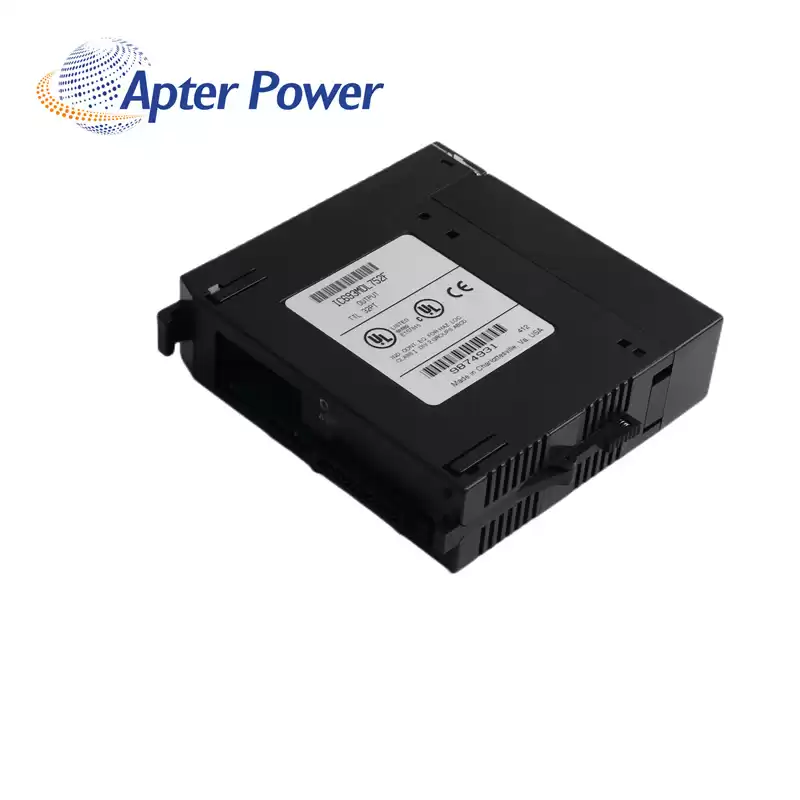

About IC693MDL752
|
The IC693MDL752 operates in two modes: Transistor-Transistor Logic (TTL) and 12/24V modes. In the TTL mode, each output can switch user loads across +5 VDC. In 12/24V mode, user loads can be switched in the range of +12 to -24 VDC. Also, output points, in each mode (TTL and 12/24V), can sink a maximum current of 25 mA and 0.5A per point respectively.
The IC693MDL752 outputs are arranged in four separate groups (labeled A to D), each group comprised of eight outputs each (numbered 1 to 8) with each group having its unique common. It can be installed in any Series 90-30 Programmable Logic Controller (PLC) system having a 5 or 10- I/O slot baseplate.
|
