Dimensions: 4cmx18cmx17.2cm
|
Weight:1.26kg
|
Product Package: Original Package
|
|
Condition: 100% New Original
|
Product Origin: USA
|
|
Full Description: New Factory Package Cleaned and Tested. With 1 Year Warranty.
|
|

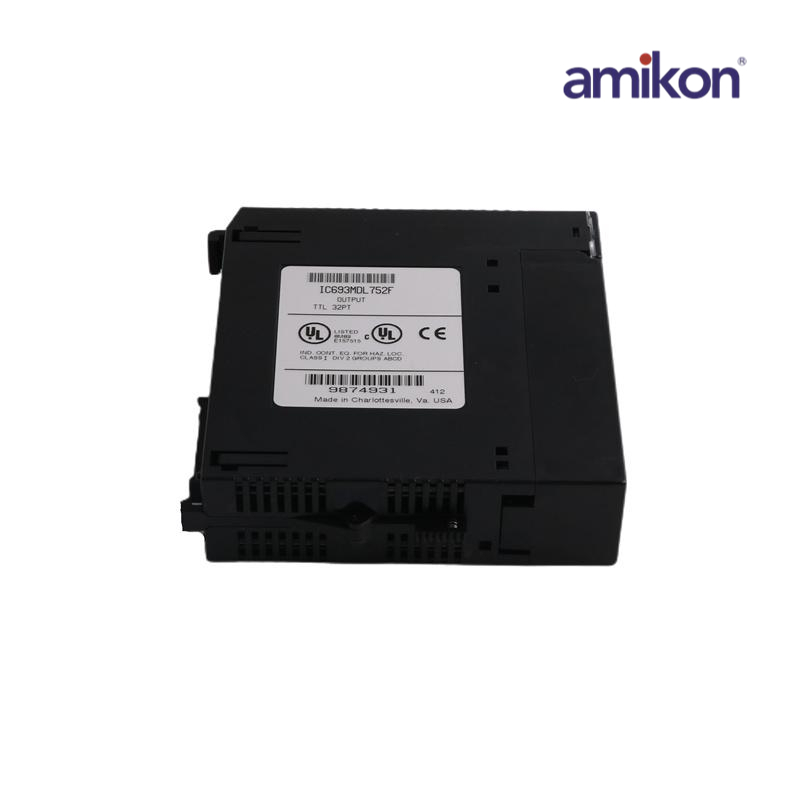

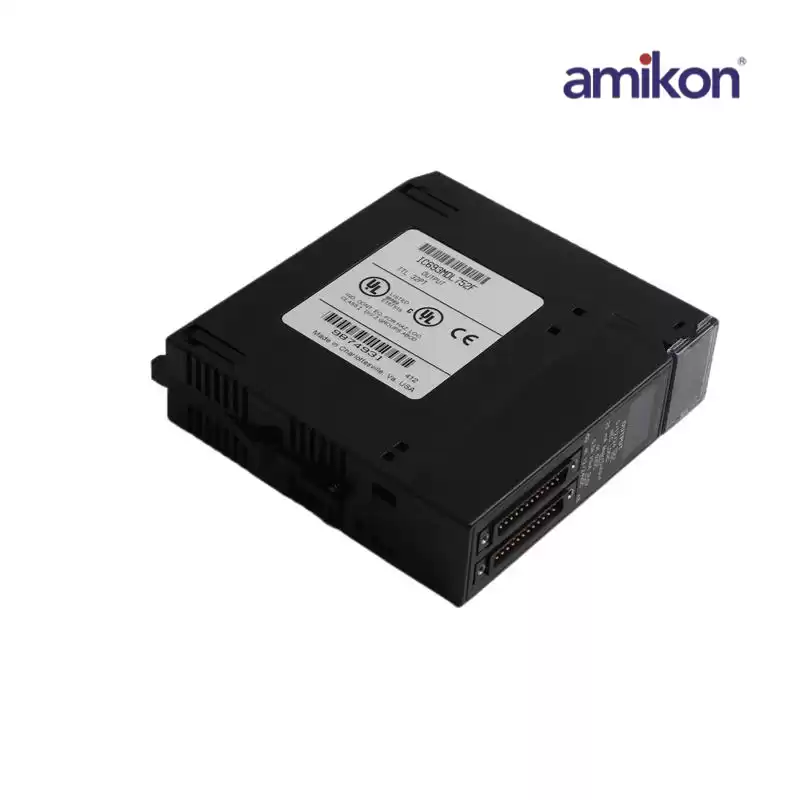

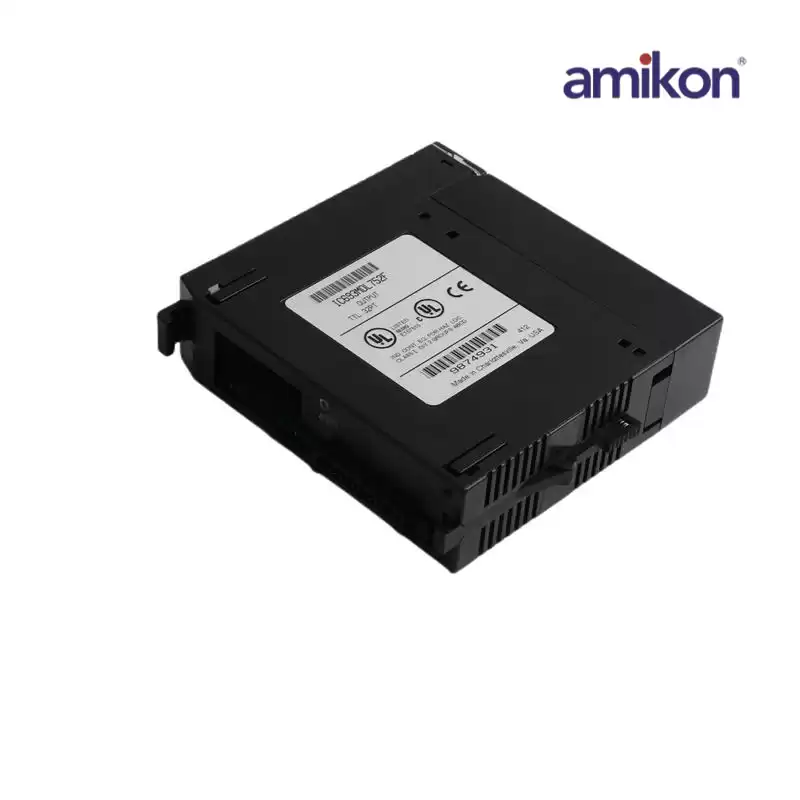

IC693MDL752
|
The IC693MDL752 operates in two modes: Transistor-Transistor Logic (TTL) and 12/24V modes. In the TTL mode, each output can switch user loads across +5 VDC. In 12/24V mode, user loads can be switched in the range of +12 to -24 VDC. Also, output points, in each mode (TTL and 12/24V), can sink a maximum current of 25 mA and 0.5A per point respectively.
The IC693MDL752 outputs are arranged in four separate groups (labeled A to D), each group comprised of eight outputs each (numbered 1 to 8) with each group having its unique common. It can be installed in any Series 90-30 Programmable Logic Controller (PLC) system having a 5 or 10- I/O slot baseplate.
|
