Technical Specifications for IC693MDL753
|
Manufacturer
|
General Electric
|
|
Condition
|
100% New Original
|
|
Brand
|
General Electric
|
On-state
|
5.4 amps
|
|
Part Number
|
IC693MDL753
|
Voltage Range
|
10.2 to 28.8 volts DC
|
|
Product Name
|
Output Module
|
Response Time
|
0.5 ms
|
|
Manufacture Year
|
2022
|
Input Current
|
260 mA
|
|
Product Package
|
Original Package
|
Shipping term
|
TNT DHL FEDEX EMS UPS
|

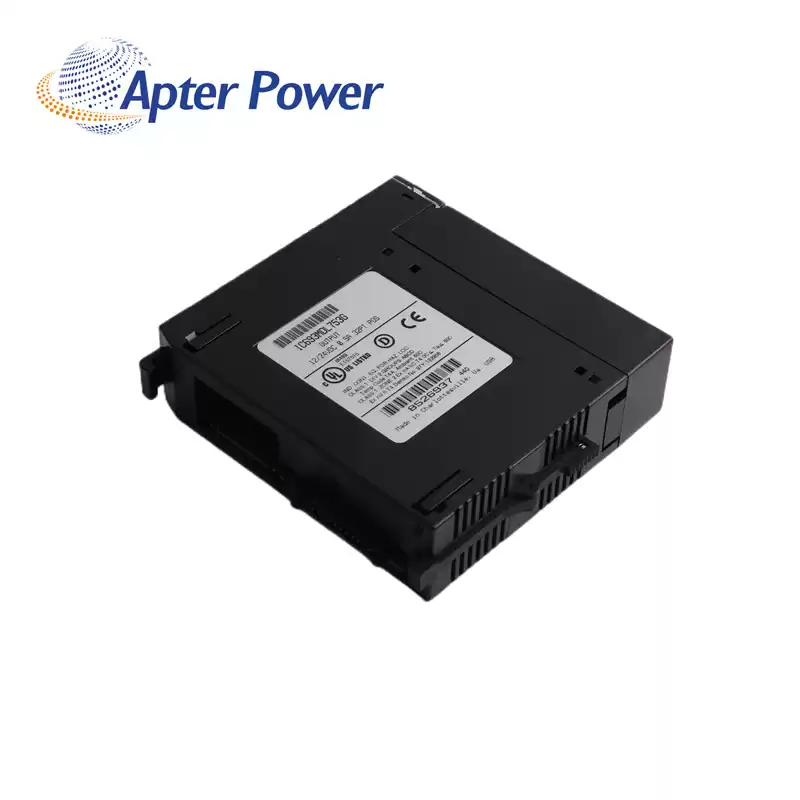

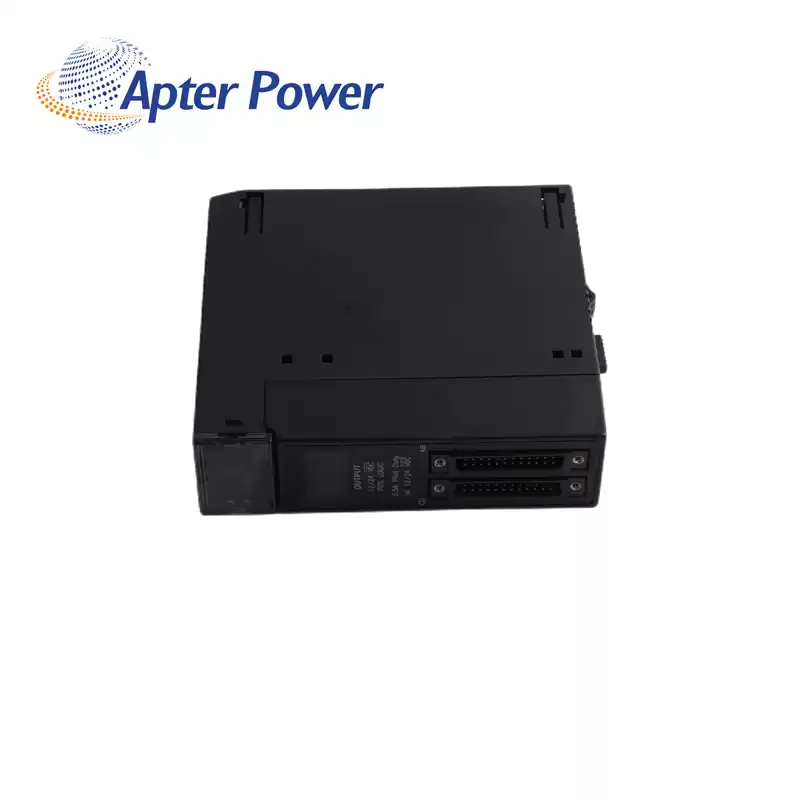

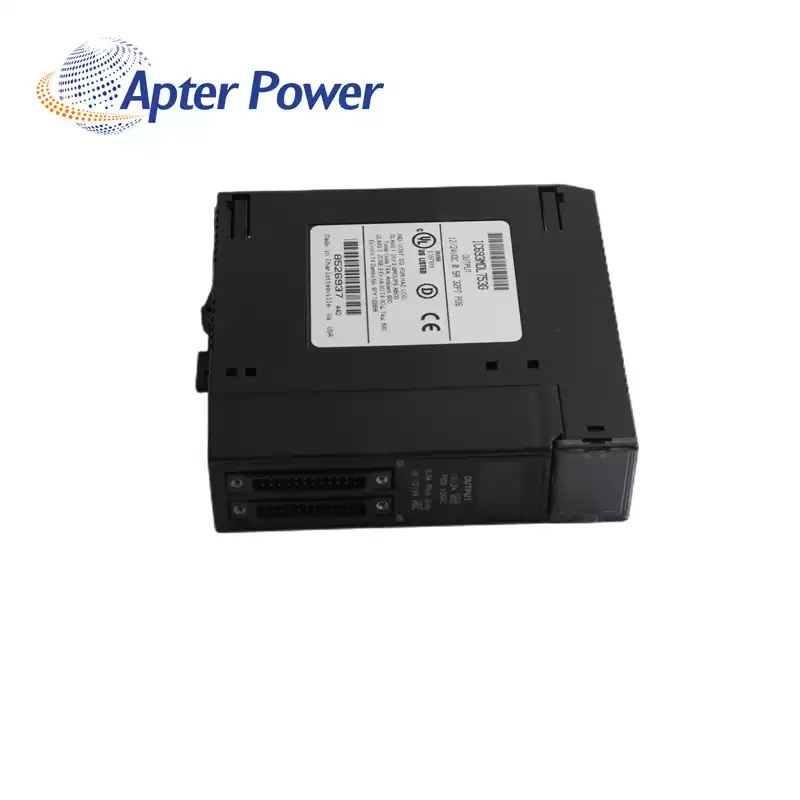

About IC693MDL753
|
The outputs on IC693MDL753 module are capable of switching loads from +12 through +24 VDC (+20%, –15%). They can also source current to a maximum value of 0.5 amps per point. In the group commons, there are user I/O connectors. Each connector has two pins, which can handle up to 3A current. When the user is connecting the group common, it is advised that connections be made to both pins.
The GE Fanuc IC693MDL753 is 12/24 volt DC, 0.5A Positive Logic Output module. Designed for the Series 90-30 Programmable Logic Controller, this output module is equipped with 32 discrete outputs. These outputs have been set up in four separate isolated groups of eight. Each group has its own dedicated common. As they are sourcing type outputs, they switch the loads on the positive side of the power supply to supply current to the load.
|
