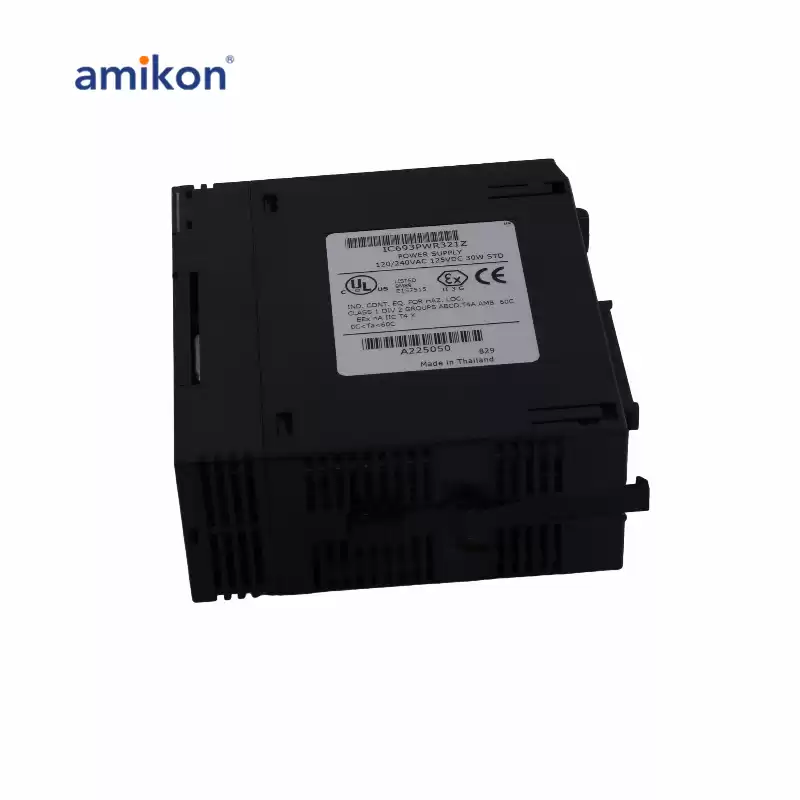

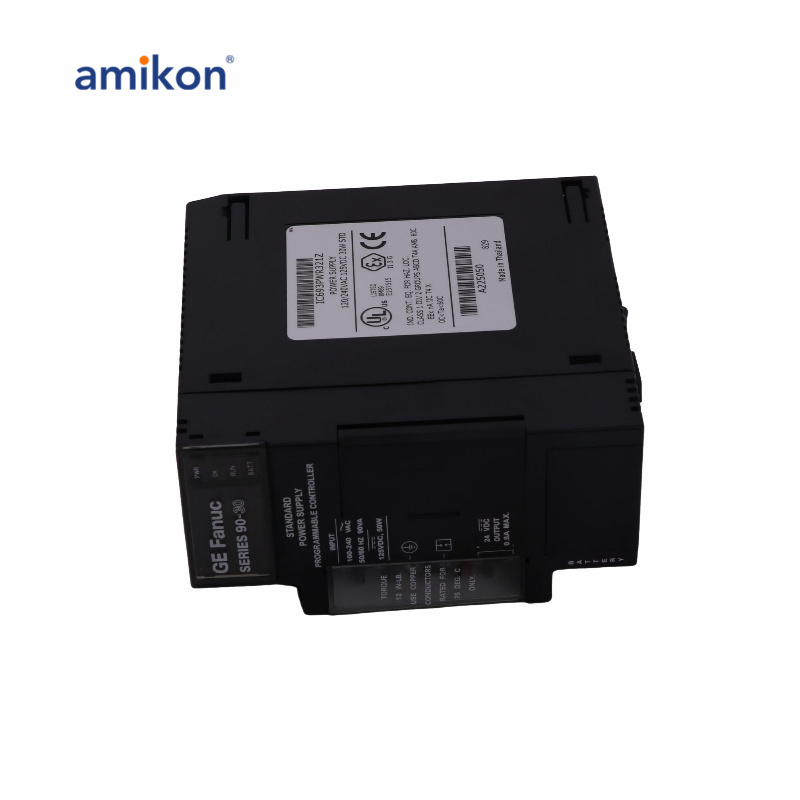

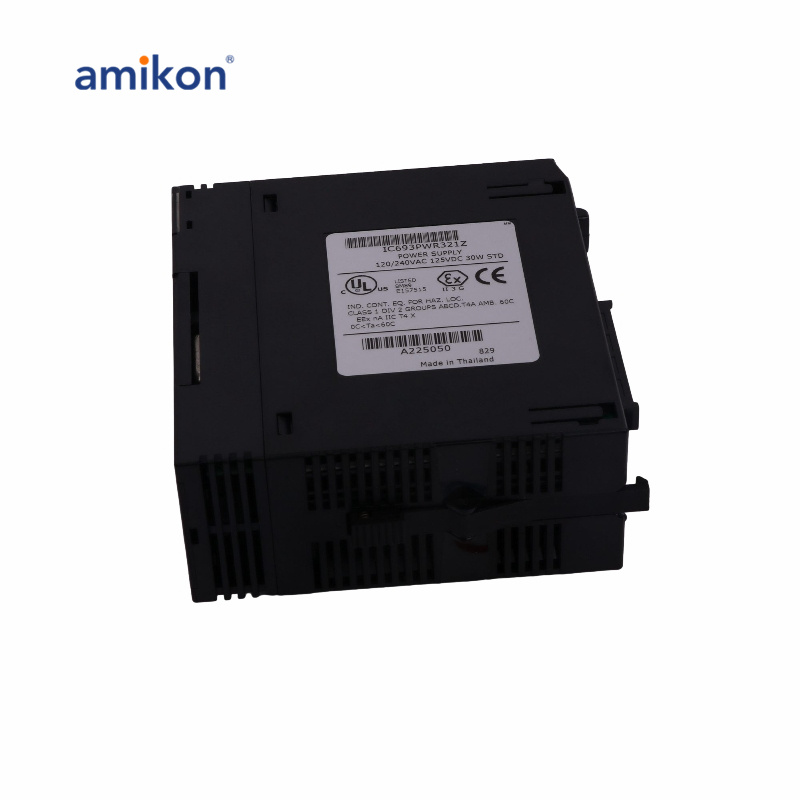

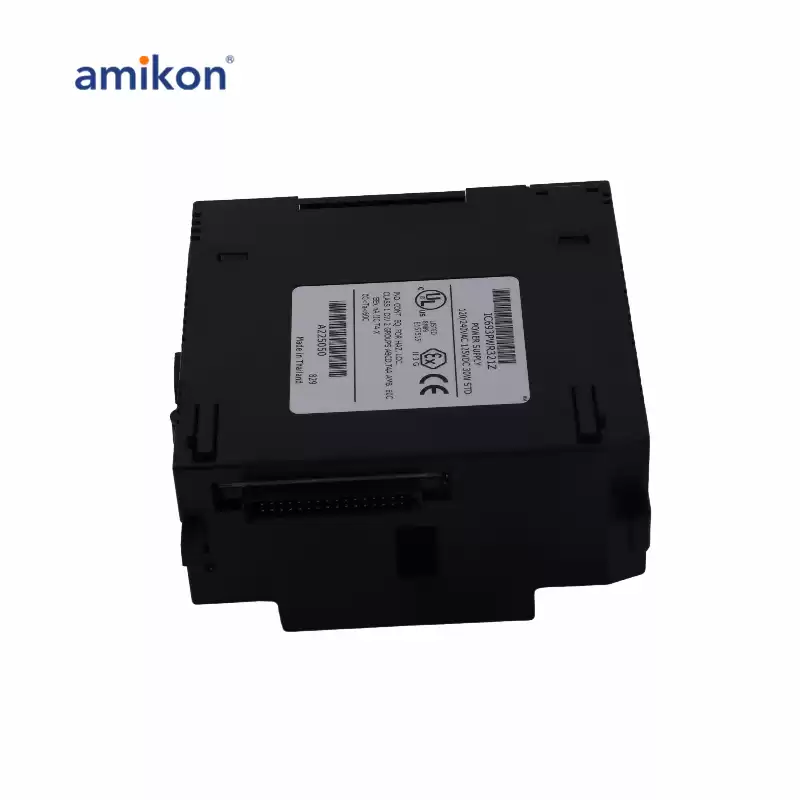

IC693PWR321 is a standard power supply module manufactured by GE Fanuc Automation as part of Series 90-30. It has a power rating of 30 Watts and can be operated with either 120/240 VAC or 125 VDC input voltage.
|
|
|
IC693PWR321 Data sheet
|
+5VDC - 15 Watts +24VDC - 20 Watts +24VDC (Relay) - 15 Watts The +5VDC output is used to power the CPU and other modules in the Series 90-30 system.
|
|
he AC input voltage range of this power supply is 85-264 VAC with nominal values of 120-240VAC. For DC supply voltage, acceptable voltage range is 100-300 VDC with nominal value of 125 VDC.
|
|
The +24VDC (Relay) output is specifically designed for powering relays and is protected from overloads.
|
|
