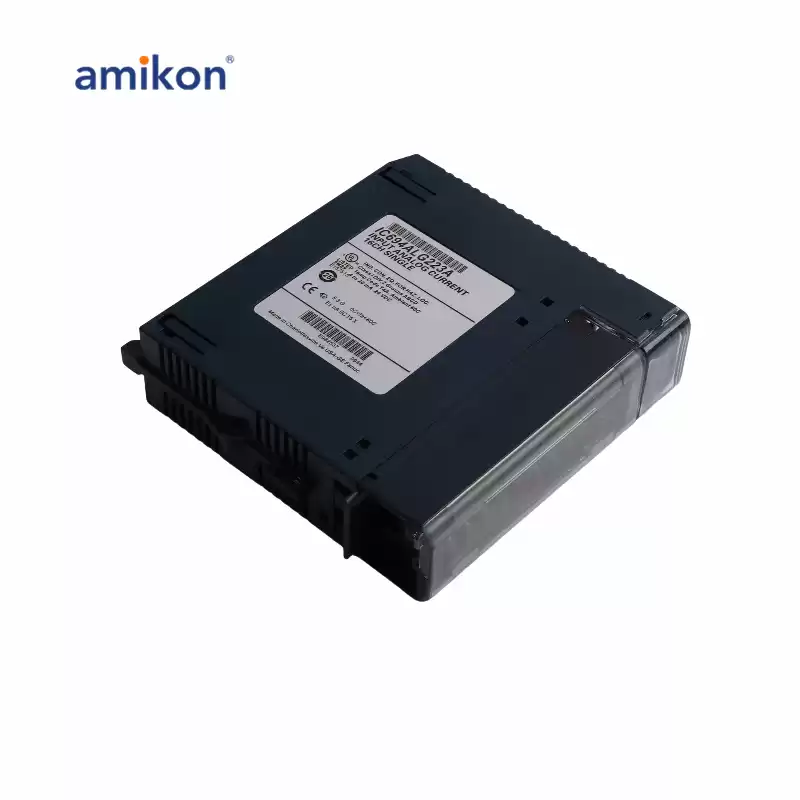

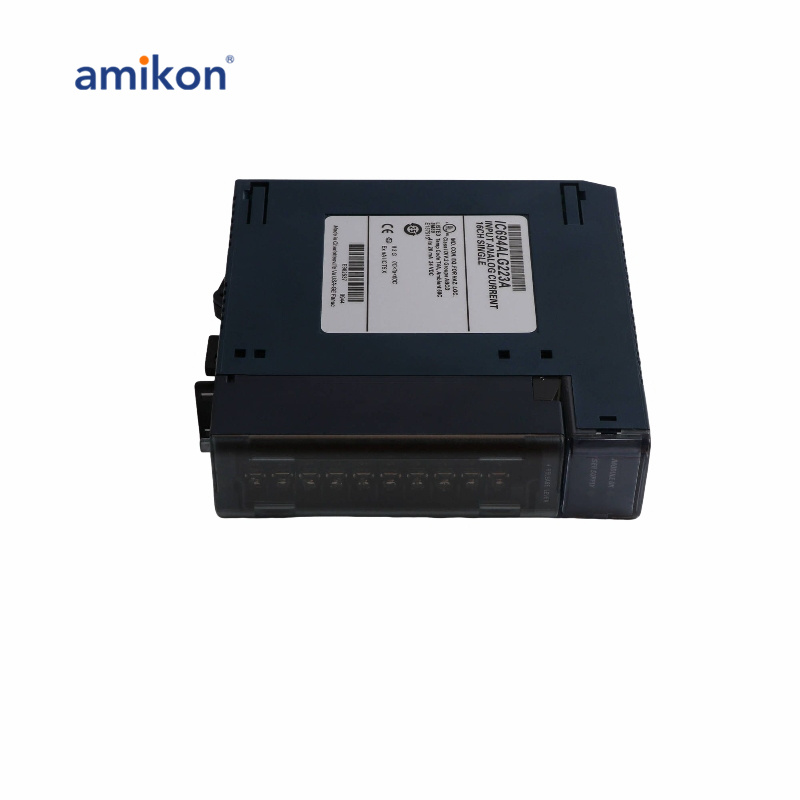

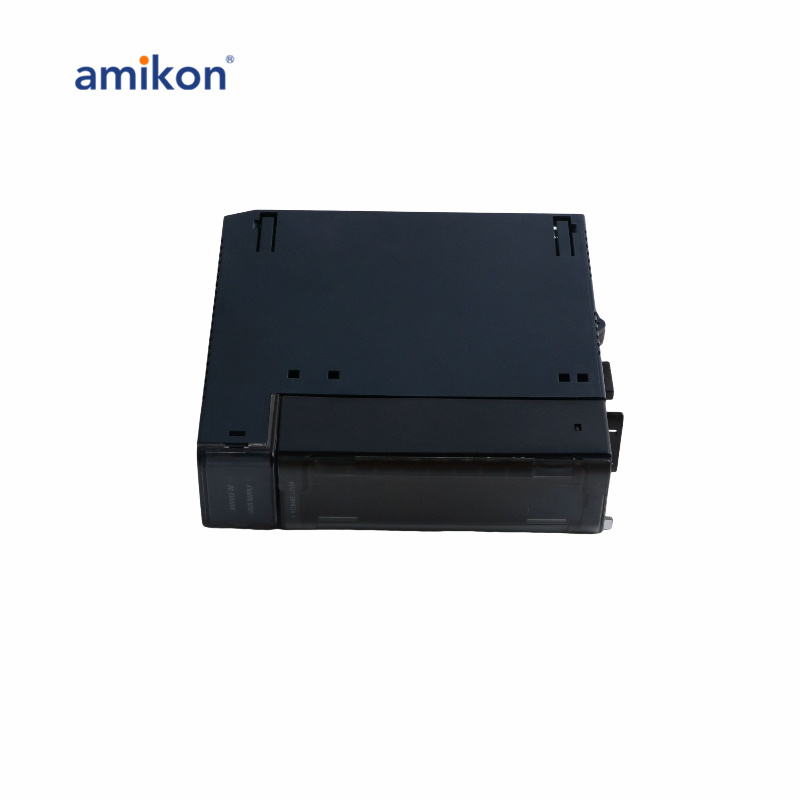

General Electric IC694ALG223 Analog Input Module

Brand new and original sealed//Same Day Shipment

GE Fanuc IC694ALG223 RX3i Analog Current Input Module draws its 5 Volts DC operation voltage from the RX3i programmable logic controller, and the input circuits need to be powered from an external 24 Volts DC power source. The maximum rated current is 120 milliamps from the backplane and 65 milliamps in the input circuits.
RX3i Analog Current Input Module can be configured to receive signals in the most frequently used current ranges, which are 4 to 20 milliamps, 0 to 20 milliamps, or 4 to 20 milliamps enhanced.
IC694ALG223 Data sheet	This module is very simple to install, and the users will just need to find 1 available I/O slot in the RX3i programmable logic controller and proceed to insert the module until it clicks into place.
	16-channel current input module for the GE Fanuc RX3i series of programmable logic controllers (PLCs). It provides 16 single-ended current inputs with a choice of three input ranges: 4 to 20 mA, 0 to 20 mA, or 4 to 20 mA Enhanced.
	The Enhanced range includes a low alarm limit that can detect input current from 4 mA to 0 mA, which provides open-wire fault detection in 4 to 20 mA applications.
