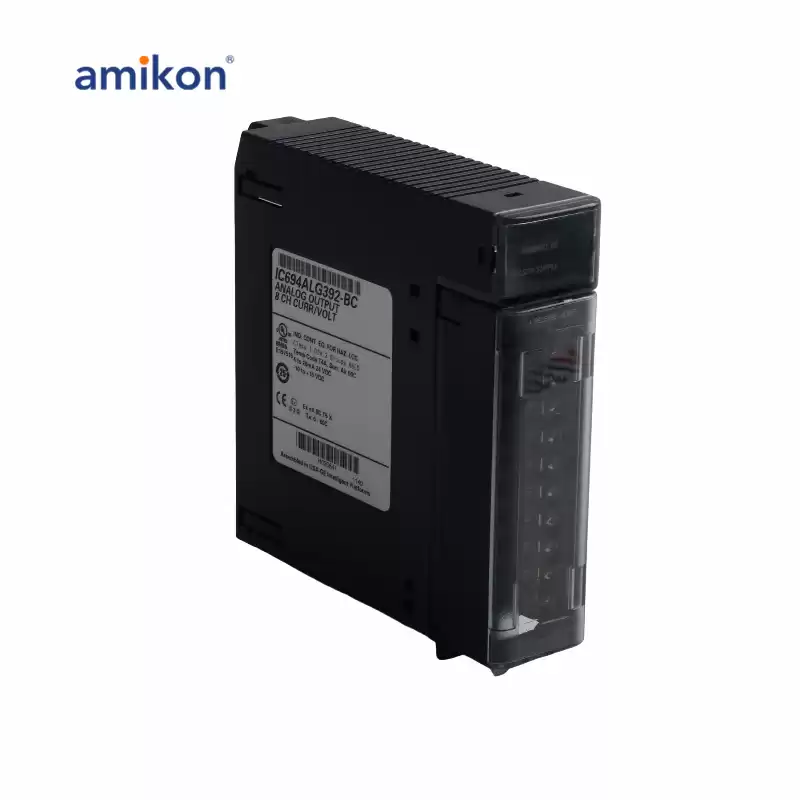

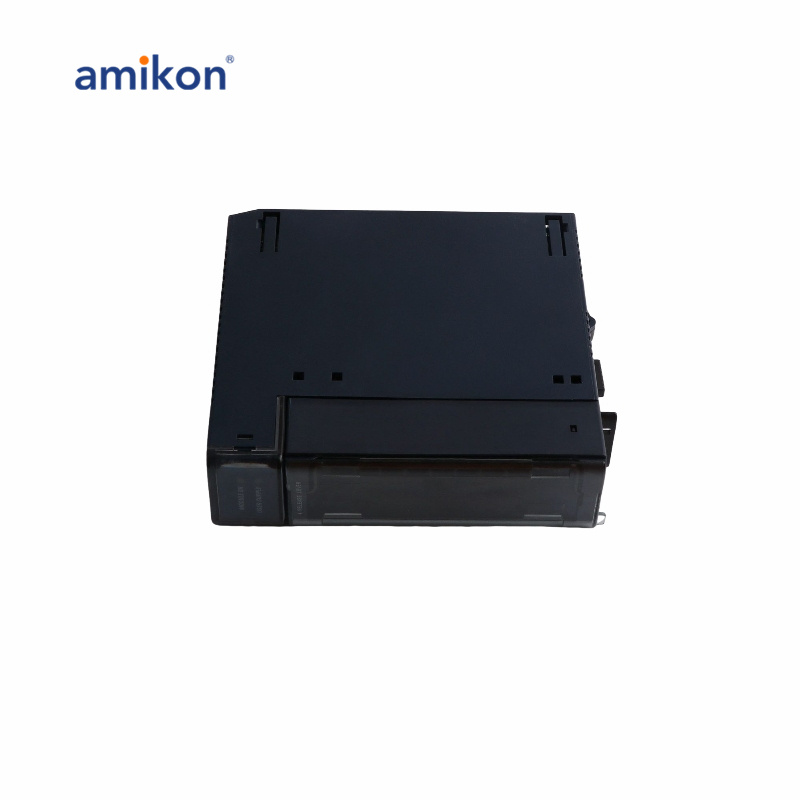

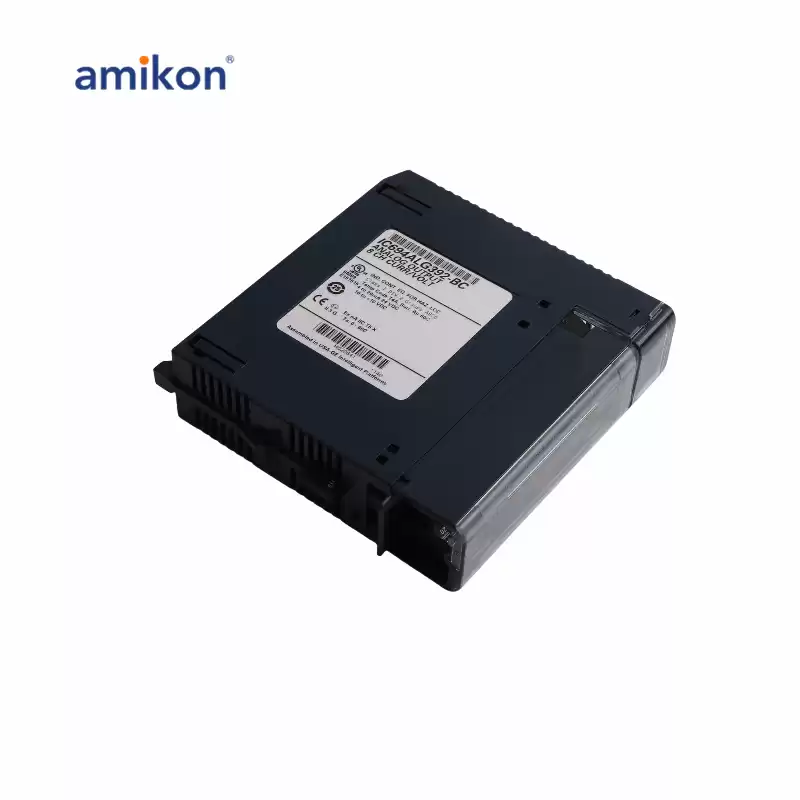

General Electric IC694ALG392 Analog Output Module

Brand new and original sealed//Same Day Shipment

IC694ALG392 Output Module must receive its 24 Volts DC operating power from an external user-supplied power source, which can be connected to the TB1 connector on the left side of the backplane or directly to the module’s terminal block. It supports 24 Volts DC user-supplied power, which supplies a 20 to 30 Volts DC voltage range.
Module refreshes/updates every output channel every 8 milliseconds. The operators can switch between the current mode and the voltage mode via easy and simplified software configuration. The IC694ALG392 Module reports open-wire faults and other fault conditions to the CPU in the current mode.
IC694ALG392 Data sheet	IC694ALG392 High-Density Analog Output Module is an 8-channel current/voltage analog output module designed for the GE RX3i PACSystems control system. This module provides 8 single-ended output channels that are capable of accepting either current loop outputs or voltage outputs.
	IC694ALG392 High-Density Analog Output Module is an 8-channel current/voltage analog output module designed for the GE RX3i PACSystems control system. This module provides 8 single-ended output channels that are capable of accepting either current loop outputs or voltage outputs.
	Module output is capable of converting 15 to 16 bits of binary data from the CPU to analog data for output devices.
