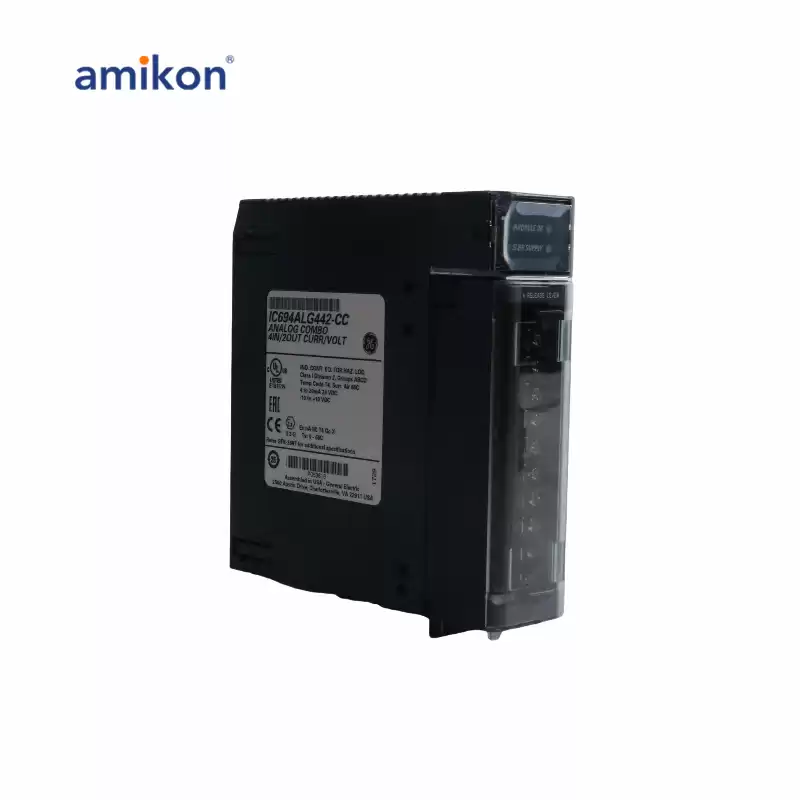

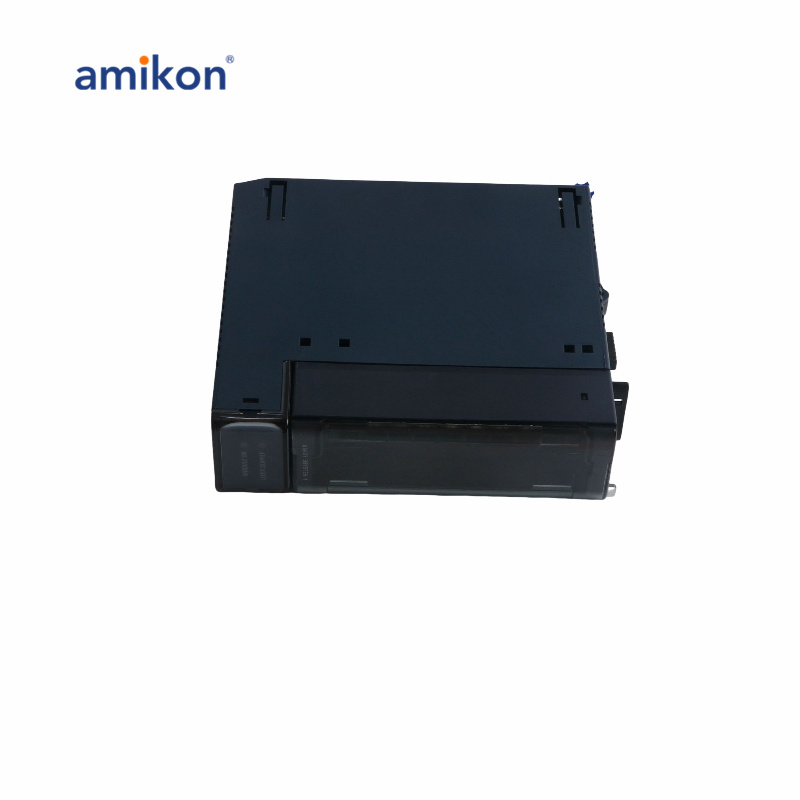

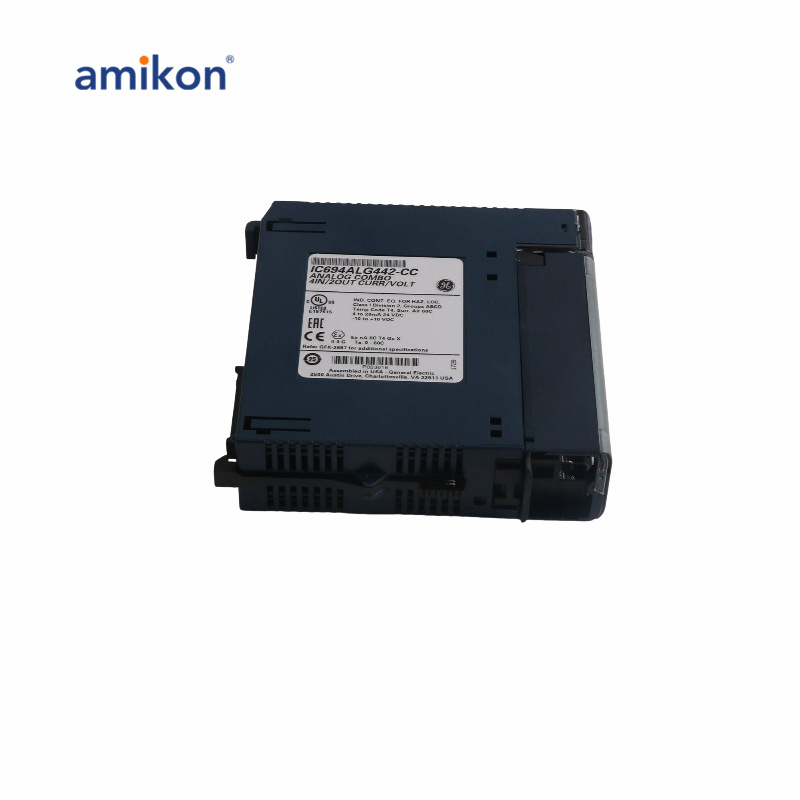

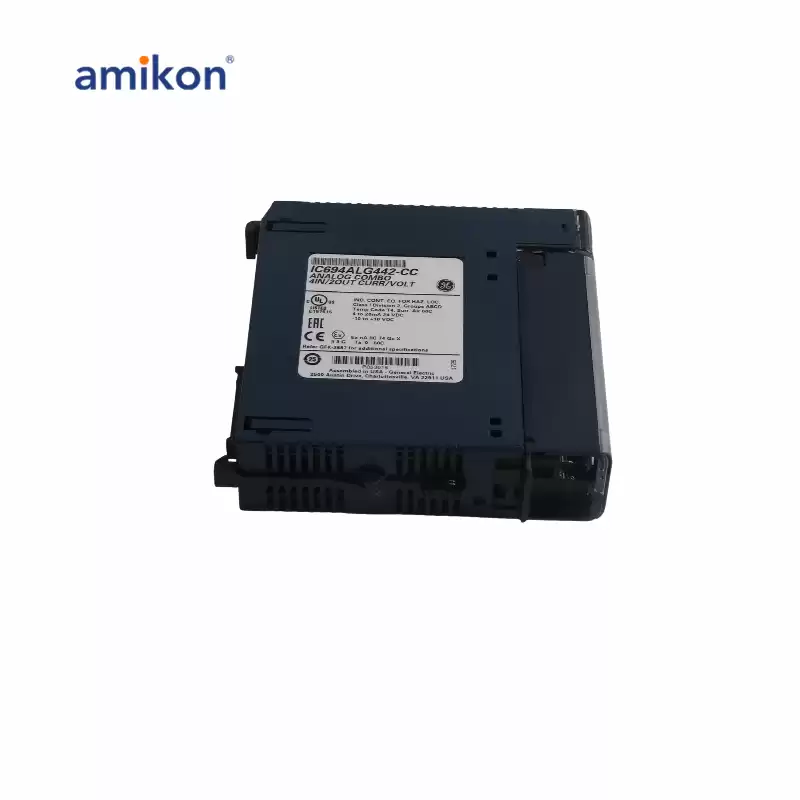

General Electric IC694ALG442 Analog Module

Brand new and original sealed//Same Day Shipment

IC694ALG442 module must be attached to a 24 VDC power from an outside source for proper use. If used with the RX3i Universal Backplane, the external source can be attached through the TB1 connector located on the left hand side of the backplane.
Another option is available through a direct connection on the module’s terminal block. If using the backplane, the external source must be connected to the terminal block. Resolution per bit is based on the configured input or the output range.
IC694ALG442 Data sheet	If the current source is reversed into input, or if it is below the low end of the current range, the module inputs a data word equivalent to the low end of the range.
	Resolution of the translated signal is 12 binary bits from the A/D converter in the %AI. Each channel is capable of 15 to 16 bit converting.
	while the supported input voltage ranges for current inputs are ranges of 0 to 20 milliamps, 4 to 20 milliamps of standard current, or 4 to 20 milliamps of enhanced current.
