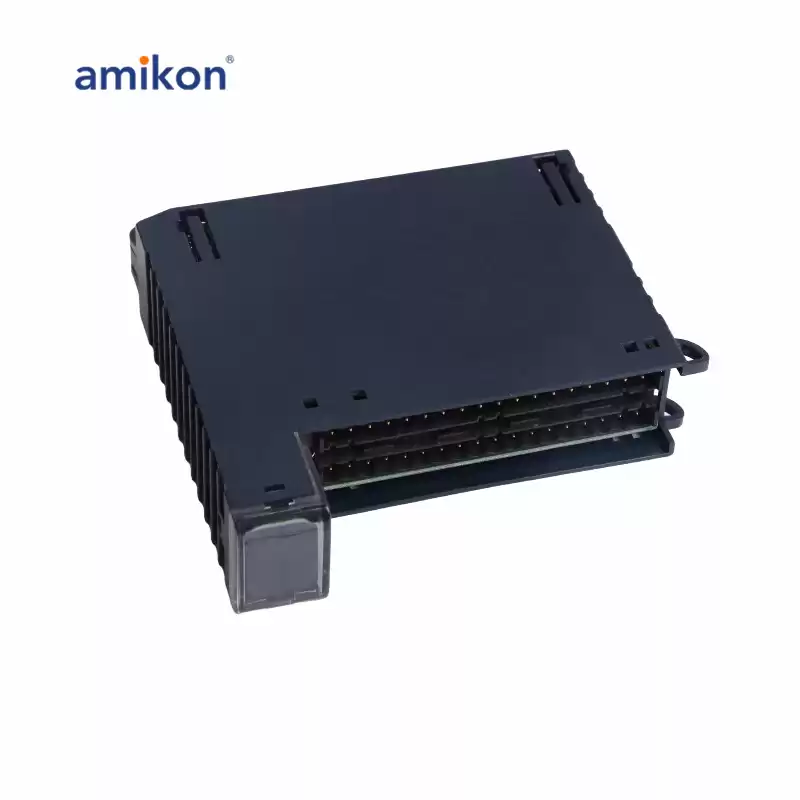

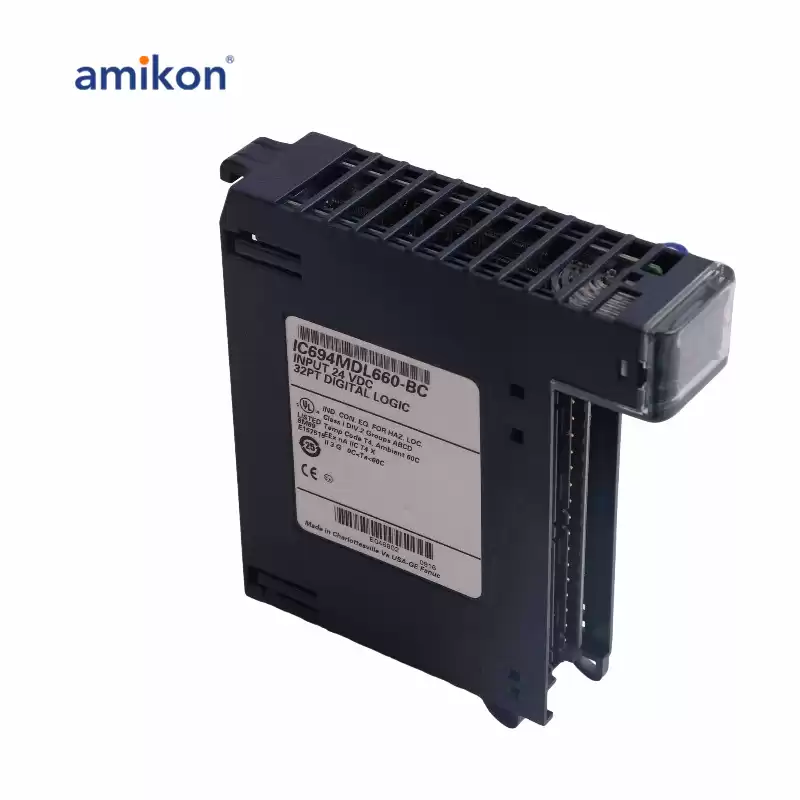

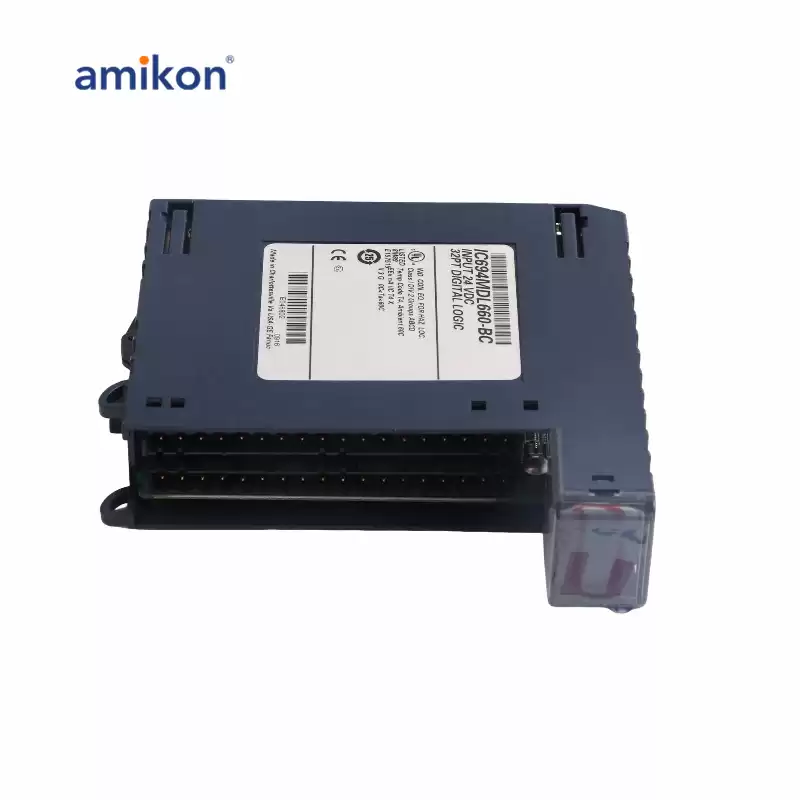

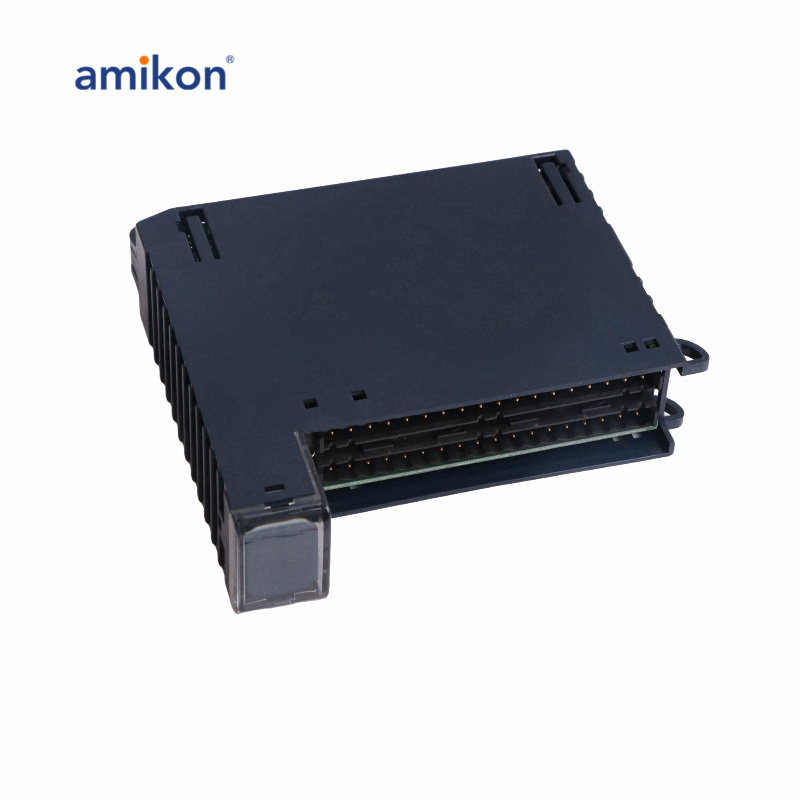

General Electric IC694MDL660 Input module

Brand new and original sealed//Same Day Shipment

IC694MDL660 input module is a logic input module that has been manufactured by GE Fanuc Automation and included in the RX3i PACSystem series. It is made to be used with the RX3i racks. This module comes with 32 inputs that can operate under positive or negative logic.
These inputs are divided into different groups and each of them can operate at a maximum voltage of 30 Volts. designed to accept input signal voltage of 0-30 VDC with nominal input of 24 VDC along with an input current of 7.0 mA per point at rated voltage.
IC694MDL660 Data sheet	Each channel of this module has an On-state voltage range of 11.5-30 VDC while the Off-state voltage is 0-5 VDC. The maximum On-state current is 3.2 mA while the maximum Off-state current is 1.1 mA.
	32-point, 24 VDC, positive/negative logic input module from the GE Fanuc RX3i Series. It provides 32 discrete input points that can be used to sense the state of switches, sensors, or other devices.
	The inputs are positive or negative logic inputs and will operate at levels up to 30V.32 discrete input points 24 VDC, positive/negative logic.
