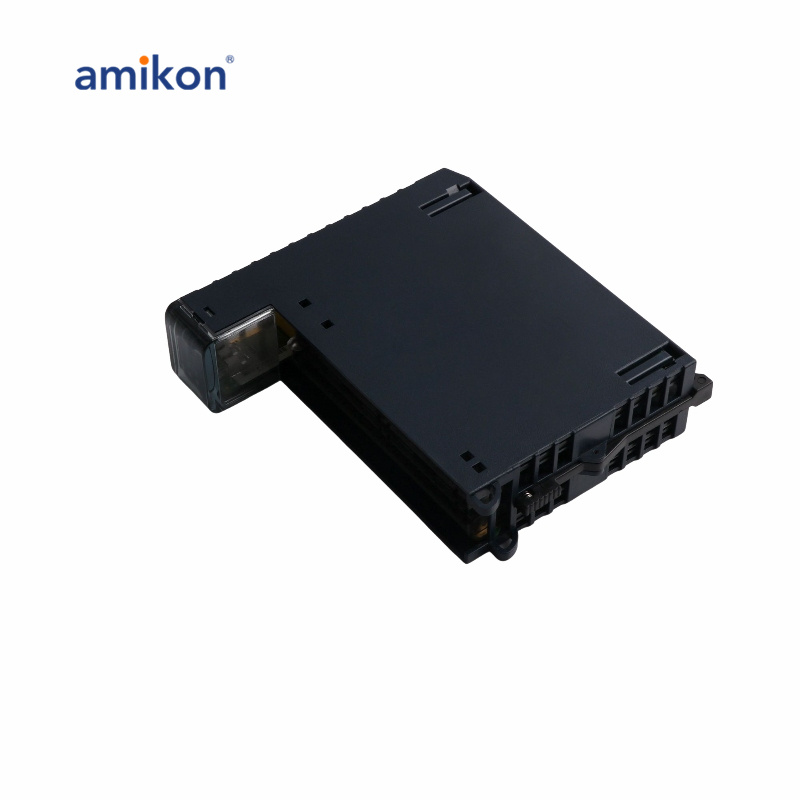

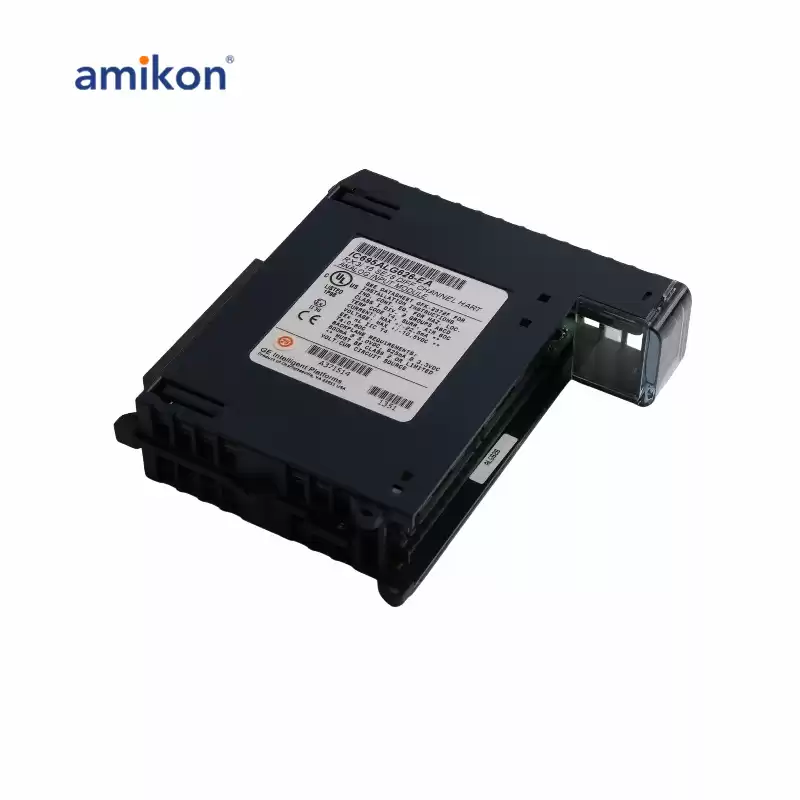

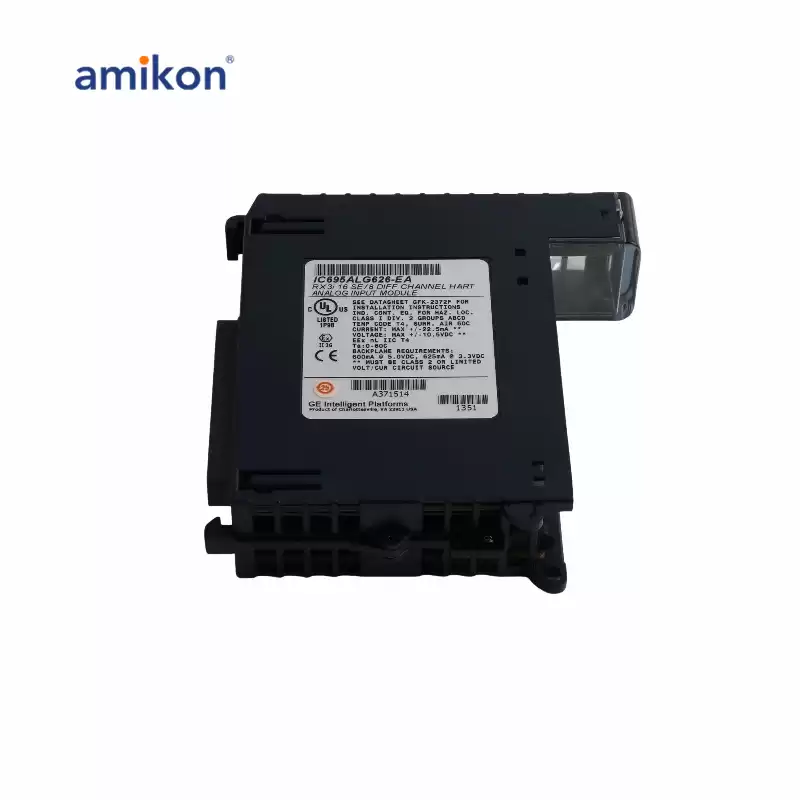

General Electric IC695ALG626 Analog Input Module
Brand new and original sealed//Same Day Shipment
- Dimensions3.5cmx13.5cmx13.5cm
- Weight0.28 kg
- Country of OriginUSA
- Brand/ManufaturerGeneral Electric
- Warranty PeriodOne Year Warranty
- Payment Term100% Advance Payment T/T Bank Wire Transfer
|
The GE Fanuc IC695ALG626 analog input module has a voltage range of +/-10 Volts DC, 0 to 10 Volts DC, +/-5 Volts DC, 0 to 5 Volts DC, or 1 to 5 Volts DC. The current configuration range for the input channels can be either 0 to 20 milliamps, 4 to 20 milliamps, or +/-20 milliamps.
|
|||
|
IC695ALG626 is a 16/8 Channel, Non-Isolated, Differential, Voltage/Current, HART, Analog Input module from the GE Fanuc RX3i Series. This module provides 16 single-ended or 8 differential input channels. |
|||
|
IC695ALG626 Data sheet |
Module IC695ALG626 has 4 internal HART modems. See specifications for this unit on IC695ALG626's website page |
||
|
These modules must be located in an RX3i Universal Backplane. They require an RX3i CPU with firmware version 3.5 or later. Machine Edition Version 5.5 or later must be used for configuration. |
|||
|
Terminal Block. Extended terminal blocks provide the extra shroud depth needed for shielded wiring. |
|||
|
