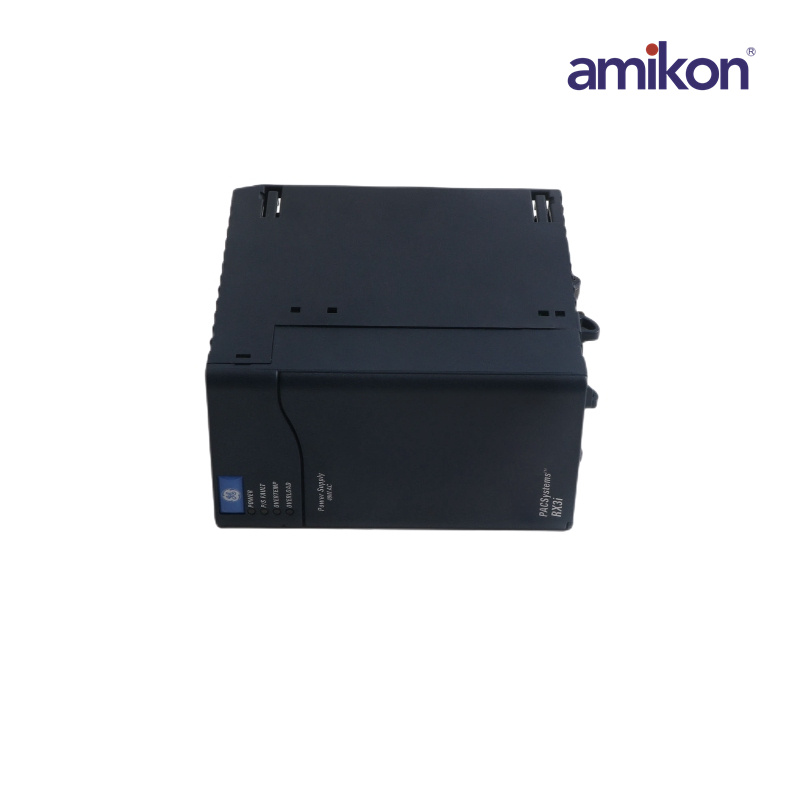

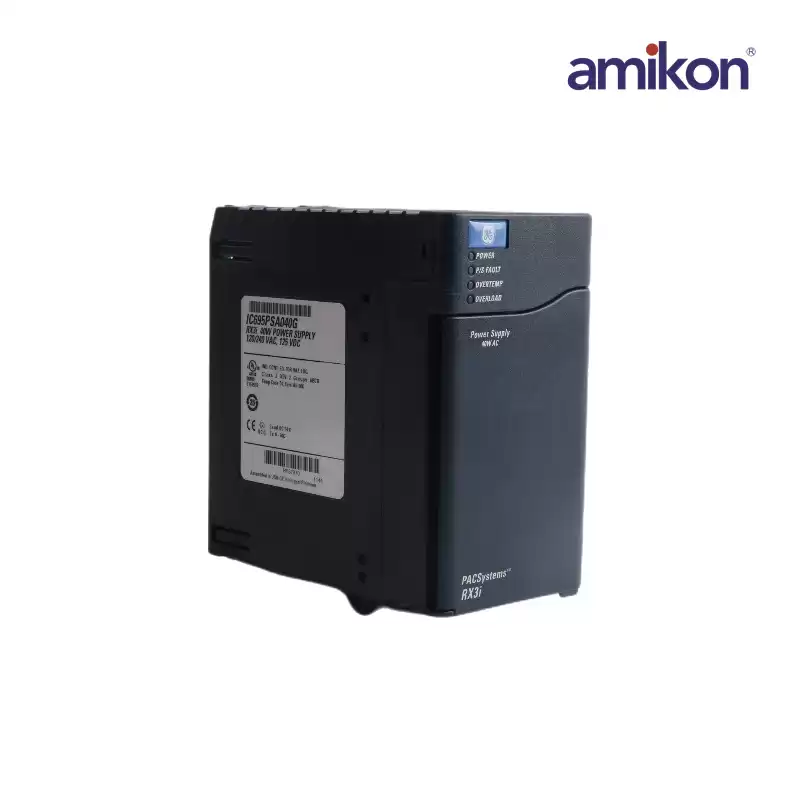

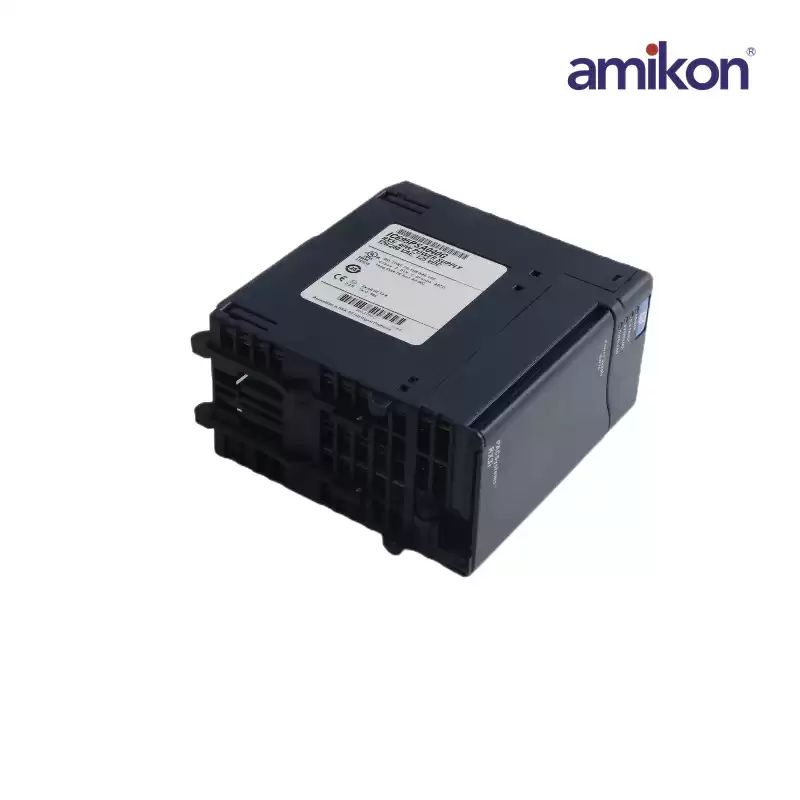

General Electric IC695PSA040 RX3I POWER SUPPLY MODULE
|
|
Dimensions:
|
7x13.3x13.5cm
|
Weight:
|
0.52kg
|
|
IC695PSA040
|
Power Supply IC695PSA040 is a 40-Watt supply that operates from an input voltage source in the range of 85 to 264 VAC or 100 VDC to 300 VDC. This Power Supply cannot be used with other RX3i power supplies in redundant or increased capacity modes. Power Supply version IC695PSA040C and before may cause equipment damage if inadvertently installed in the same backplane as another RX3i power supply.
The Power Supply indicates when an internal fault occurs so the CPU can detect loss of power or log the appropriate fault code. Power (Green/Amber). When this LED is green, it indicates power is being supplied to the backplane. When this LED is amber, power is applied to the Power Supply but the Power Supply switch is off.Over Temperature (Amber). When this LED is lit, it indicates the Power Supply is near or exceeding its maximum operating temperature.
|
