Technical Specifications for IC697ALG230
|
Manufacturer
|
General Electric
|
|
Condition
|
100% New Original
|
|
Brand
|
General Electric
|
Input Power
|
70 Watts
|
|
Part Number
|
IC697ALG230
|
Operating temperature
|
0 to 60°C
|
|
Product Name
|
Analog Input Module
|
Power requirements
|
+240 VDC
|
|
Manufacture Year
|
2021
|
Input Current
|
150 mA
|
|
Product Package
|
Original Package
|
Shipping term
|
TNT DHL FEDEX EMS UPS
|

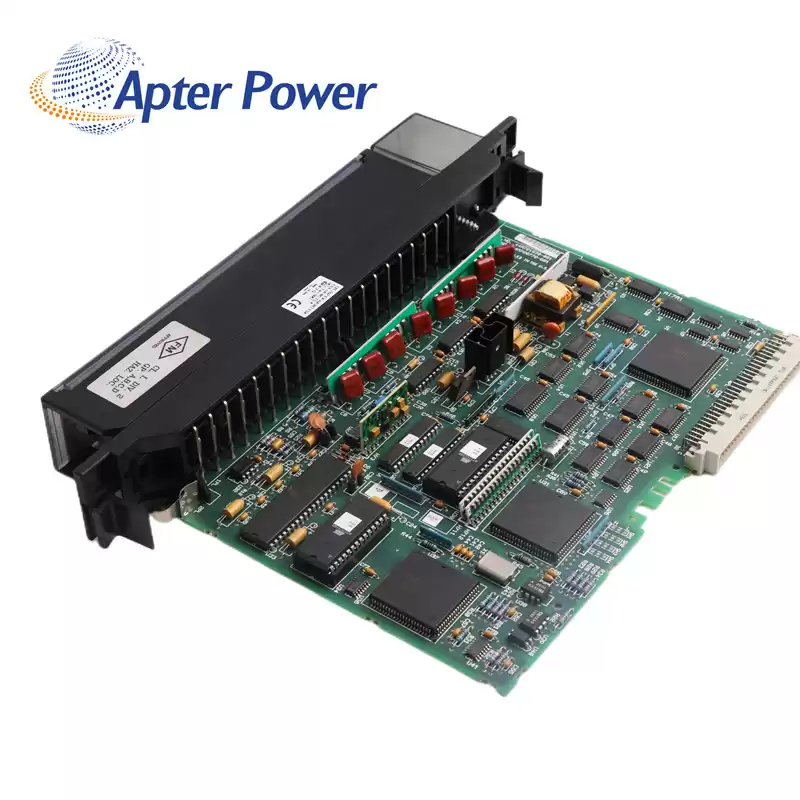

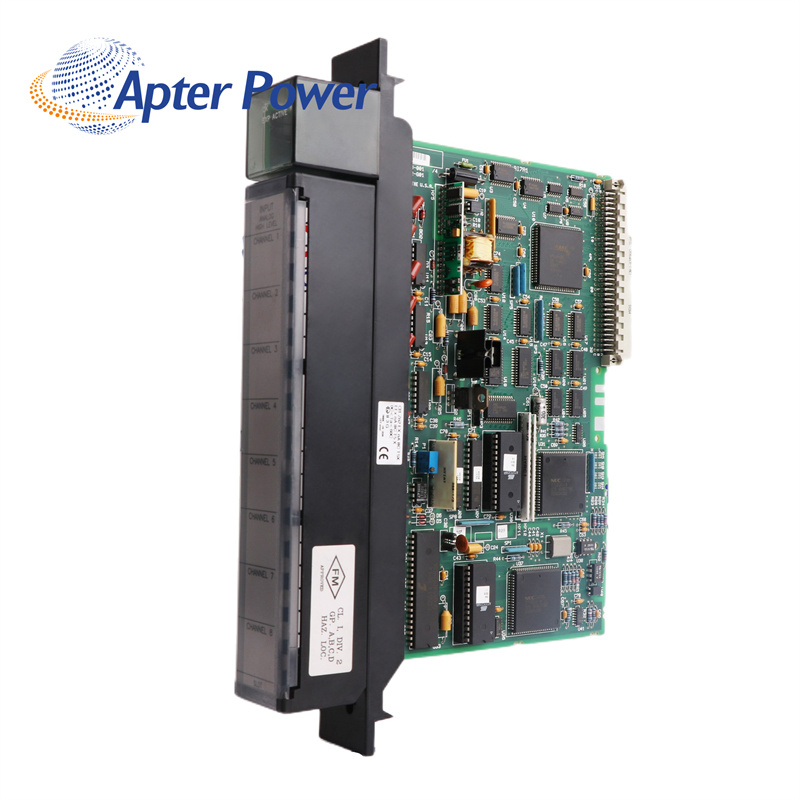

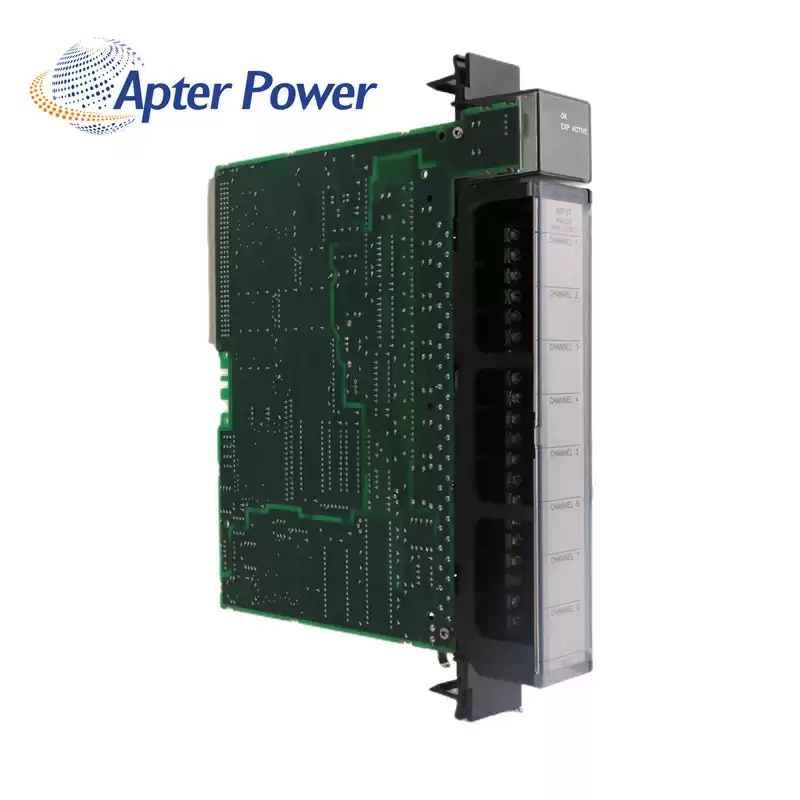

About IC697ALG230
|
The IC697ALG230 is a Analog Input Module.Complete Analog subsystem includes Base Converter
and Expander modules. Base Converter module has eight differential inputs
individually configurable for voltage or current. Accepts unipolar or bipolar Analog Inputs up to " 10
volts full scale. Accepts 4 to 20 milliamp current loop signals. Individual user scaling on each input channel on Base
Converter module; scaling on a per module basis for
Expander modules.
The High Level Analog Input subsystem for the Programmable Logic Controller (PLC) accepts analog inputs of up to Ç 10 volts full scale, or 4 to 20 milliamp
current loop signals. These inputs are converted to
digital form for use by the CPU or other controllers
accessing analog inputs via the VME backplane.The basic converter is 14 bits resolution (1
part in 16384); an oversampling and averaging technique further enhances this resolution. Inputs are
protected against transient and steady-state overvoltage conditions.
|
