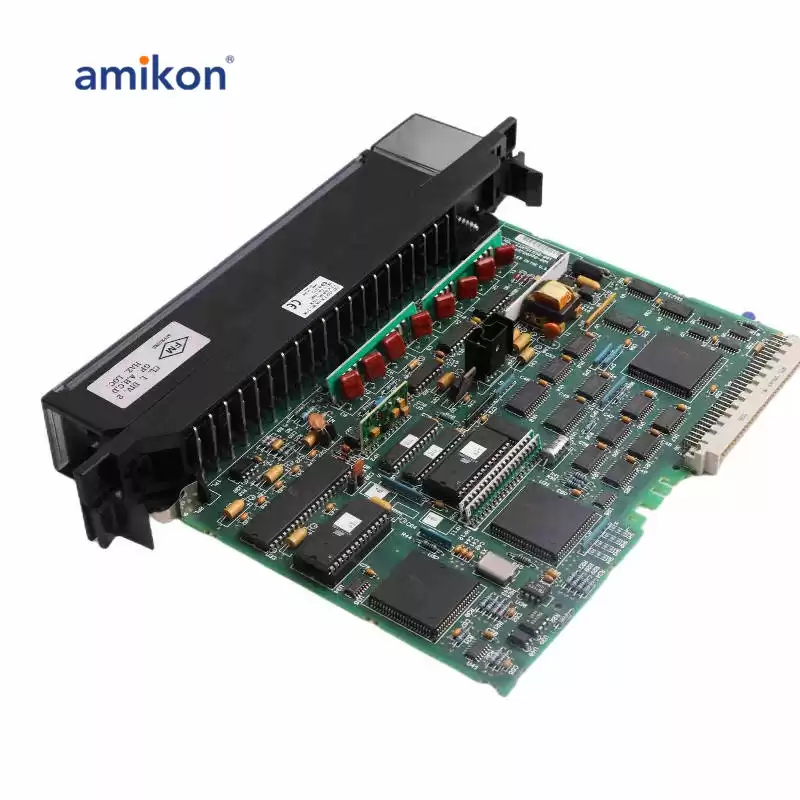

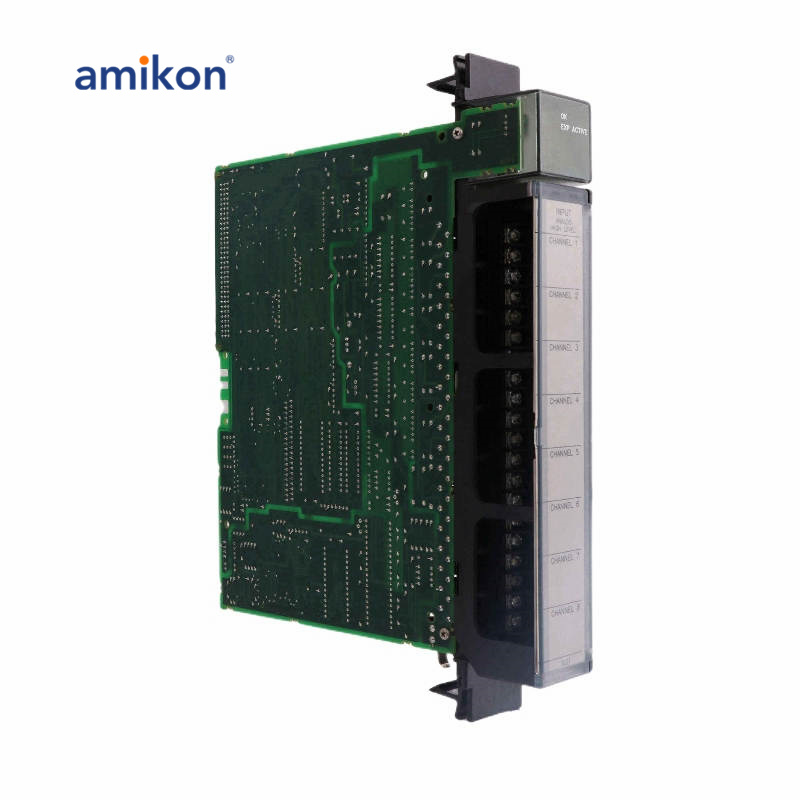

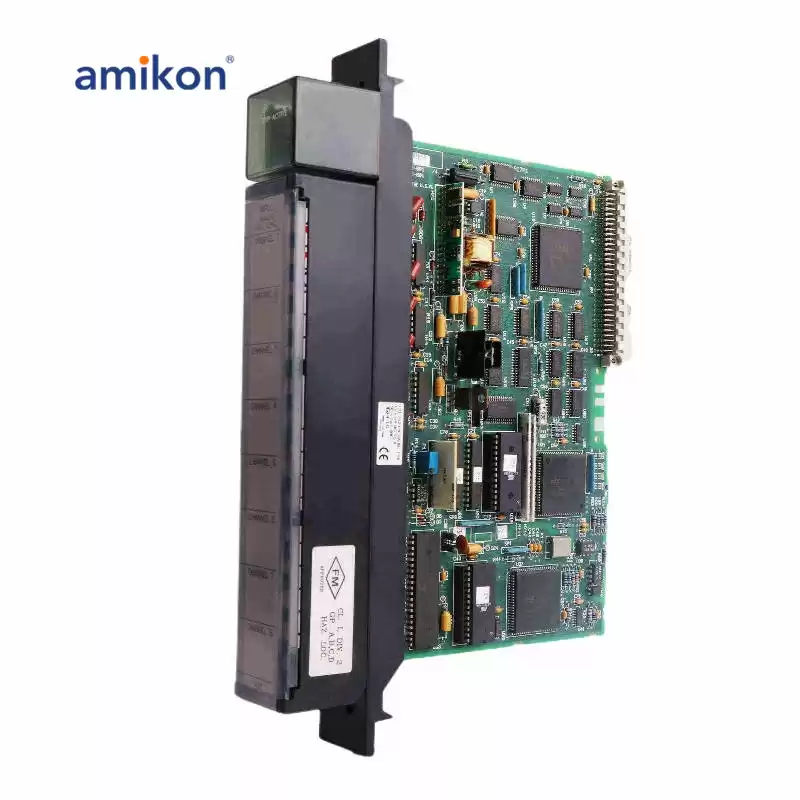

IC697ALG230 is a Analog Input Module.Complete Analog subsystem includes Base Converter and Expander modules. Base Converter module has eight differential inputs individually configurable for voltage or current.
|
|
|
IC697ALG230Data sheet
|
Accepts unipolar or bipolar Analog Inputs up to " 10 volts full scale. Accepts 4 to 20 milliamp current loop signals. Individual user scaling on each input channel on Base Converter module; scaling on a per module basis for Expander modules.
|
|
The High Level Analog Input subsystem for the Programmable Logic Controller (PLC) accepts analog inputs of up to Ç 10 volts full scale, or 4 to 20 milliamp current loop signals.
|
|
These inputs are converted to digital form for use by the CPU or other controllers accessing analog inputs via the VME backplane.
|
|
