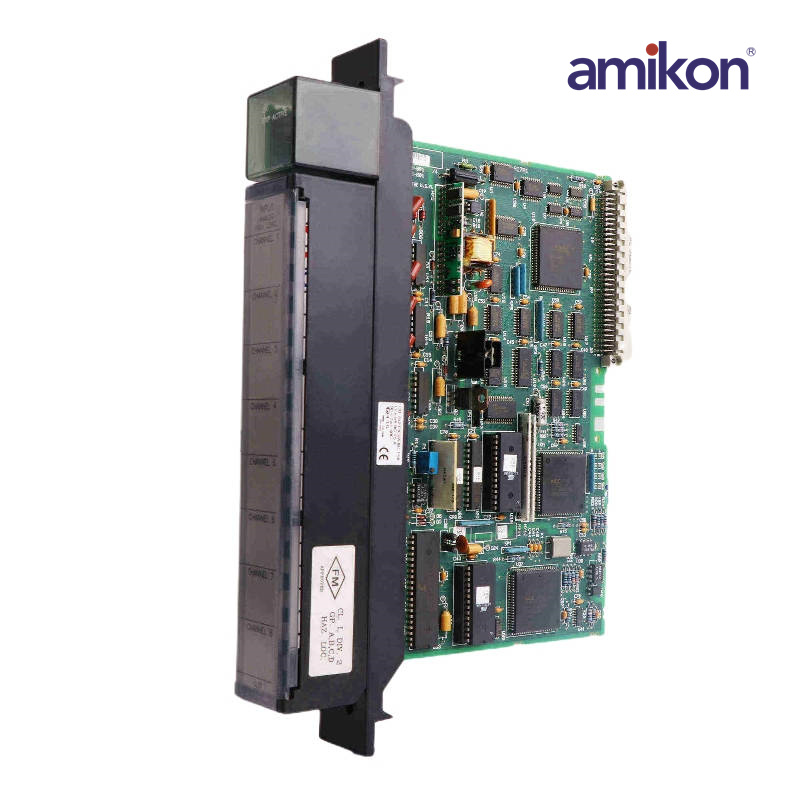

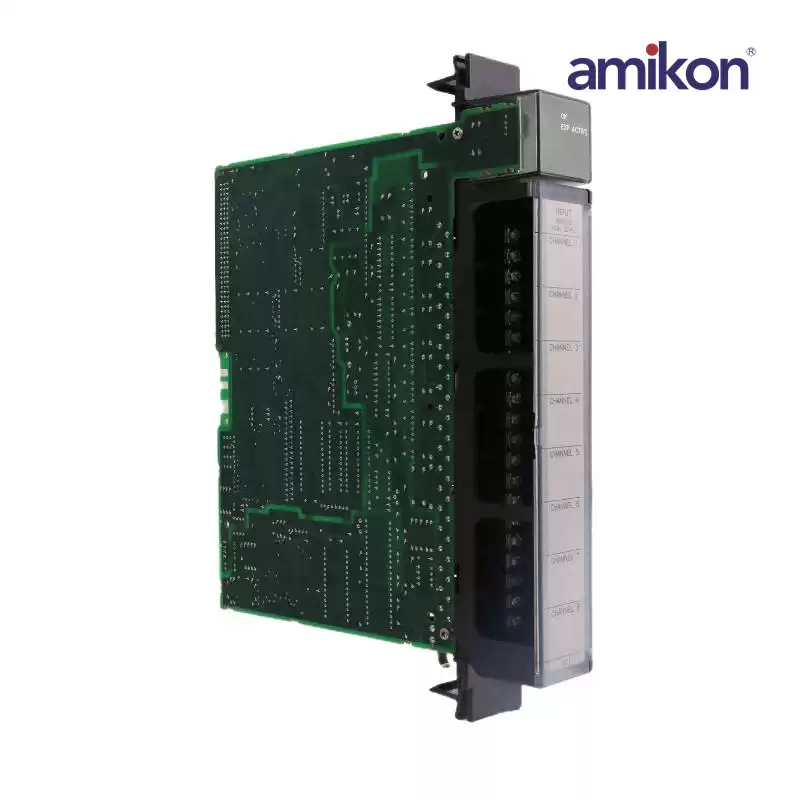

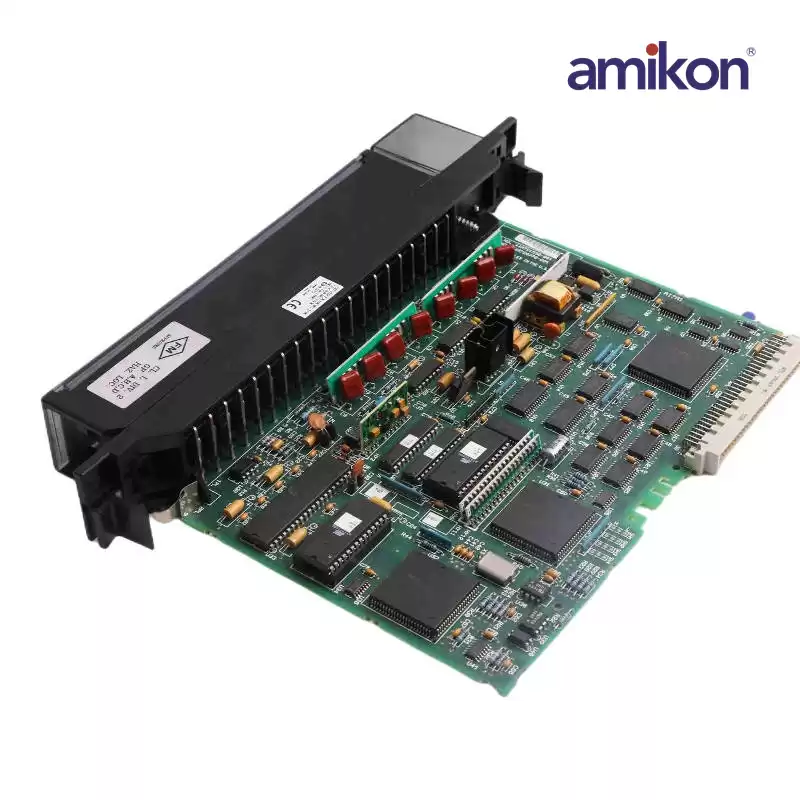

General Electric IC697ALG230 Analog Input Module

Dimensions:4x21.8x29,2cm

Product Package：Original Package

Weight:0.66kg

Shipping Term：TNT DHL FEDEX EMS UPS

Part Number：IC697ALG230

Rated Voltage：12 volts DC

The IC697ALG230 is a Analog Input Module.Complete Analog subsystem includes Base Converter and Expander modules. Base Converter module has eight differential inputs individually configurable for voltage or current. Accepts unipolar or bipolar Analog Inputs up to " 10 volts full scale. Accepts 4 to 20 milliamp current loop signals. Individual user scaling on each input channel on Base Converter module; scaling on a per module basis for Expander modules.

The High Level Analog Input subsystem for the Programmable Logic Controller (PLC) accepts analog inputs of up to Ç 10 volts full scale, or 4 to 20 milliamp current loop signals. These inputs are converted to digital form for use by the CPU or other controllers accessing analog inputs via the VME backplane.The basic converter is 14 bits resolution (1 part in 16384); an oversampling and averaging technique further enhances this resolution. Inputs are protected against transient and steady-state overvoltage conditions.
