Dimensions:4x21.8x29.2cm
|
Voltage Input Range:-10 to +10 volts
|
|
Weight:0.6kg
|
Resolution: 16 bit
|
|
Series：Series 90-70
|
Calibration: Factory set at 10 Volts +/- 2 mV
|
|
Operating temperature:0 to 60°C
|
Accuracy: +/- 0.07% of full scale, +/-0.1% of value
|
|
Current Input Range: 4 to 20 milliamps
|
Power Requirement: 0.4 Amps (2 watts) at +5 Volts
|
|
IC697ALG440 describe

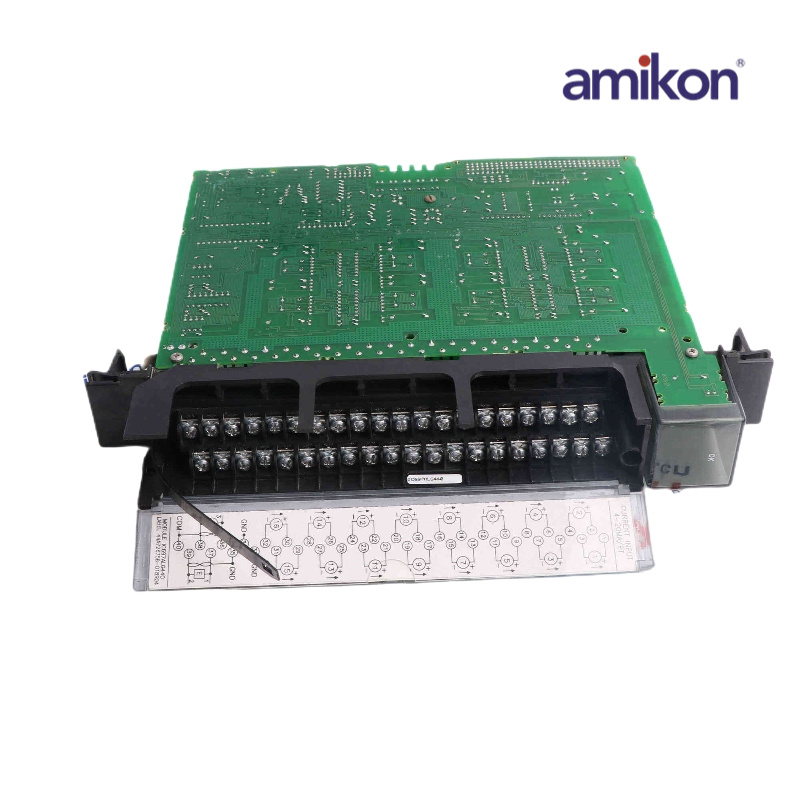

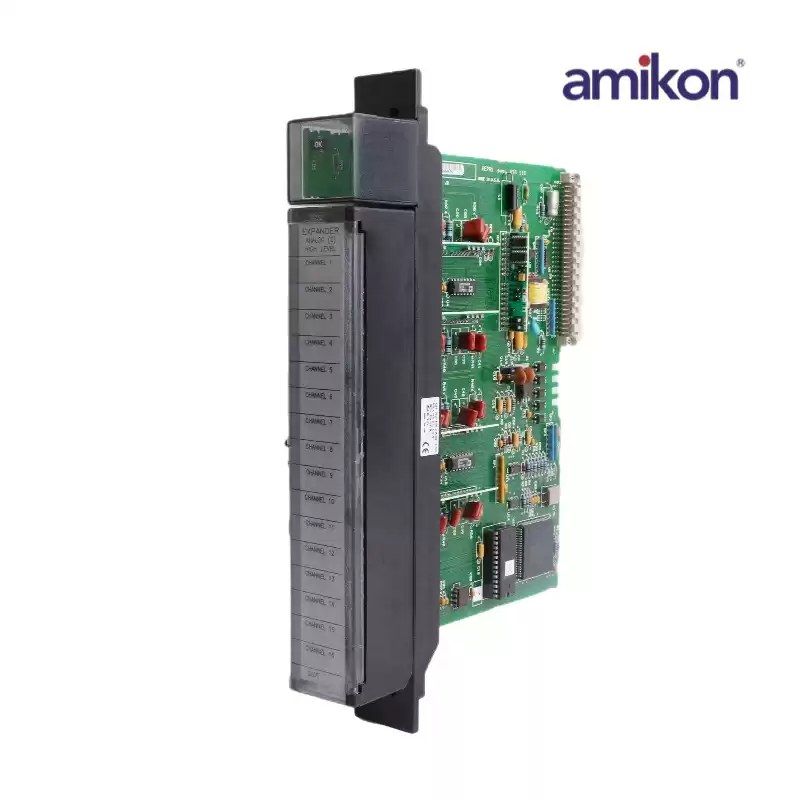

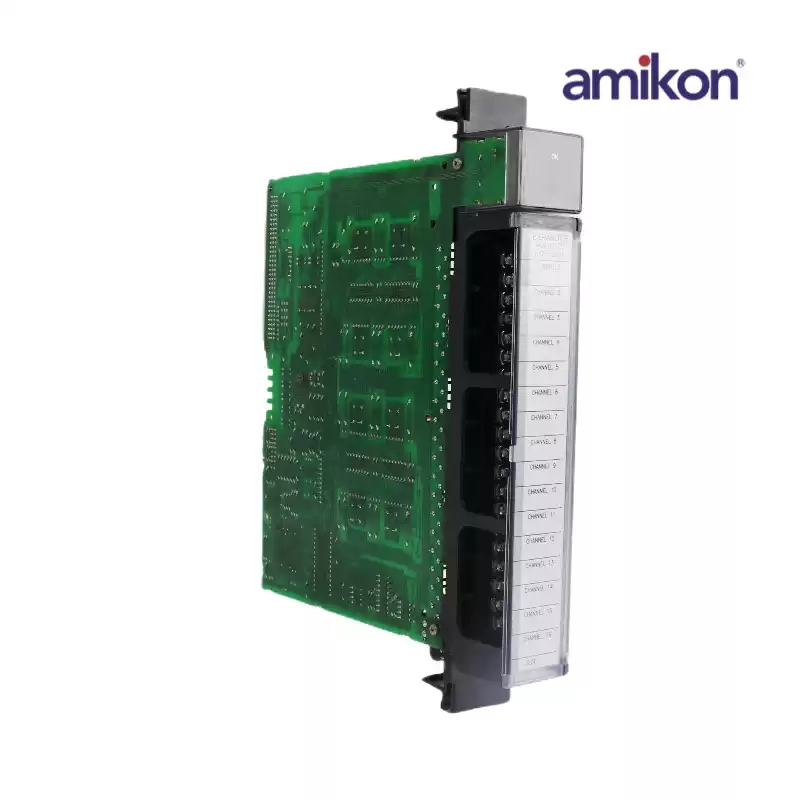

The IC697ALG440 Current Expander Module is a 16-channel, high-level, analog input expander module from GE Fanuc. It has 16 input channels, 4 to 20 milliamps of current input range, and 0.4 Amps (2 Watts) of power requirement at +5 Volts.
The IC697ALG440 Current Input Expander Module belongs to the Series 90-70 Programmable Logic Controllers product line manufactured by GE Fanuc. It has 16 current inputs with a 4 to 20 milliamps input current range. The IC697ALG440 Current Input Expander Module must be used with a base converter module and a voltage expander module to create an analog input subsystem for a programmable logic controller.
|
