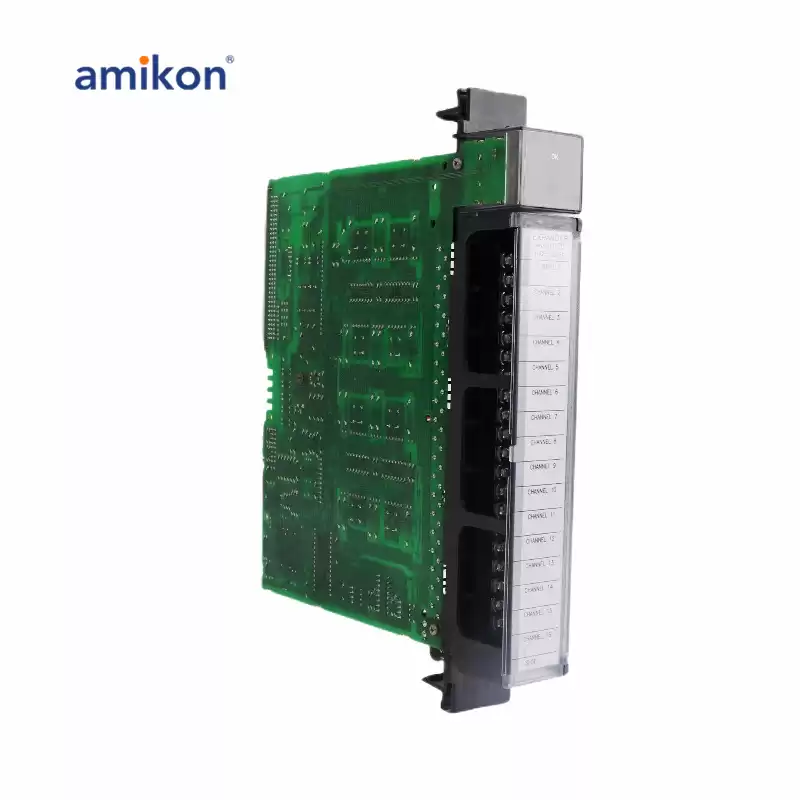

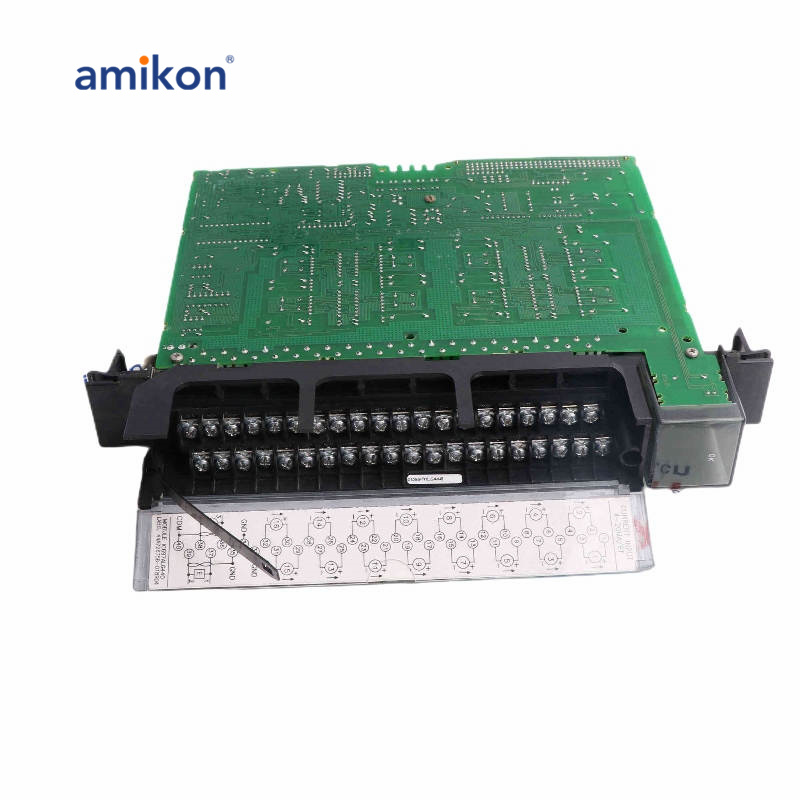

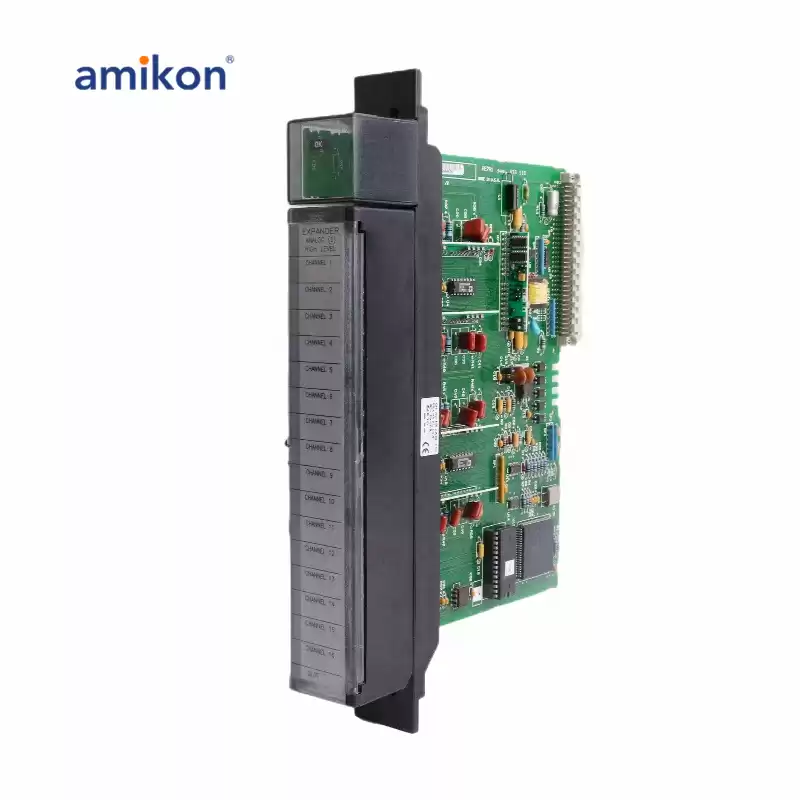

IC697ALG440 is a Analog Input Module.Analog inputs use %AI references in the programmable controller. A maximum of 8K words of %AI memory is currently available in the programmable controller.
|
|
|
IC697ALG440 Data sheet
|
Each input channel uses one word (16 bits) of %AI memory.Field wiring is made to a removable terminal board and the module is mechanically keyed to ensure correct replacement with a similar module type in the field.
|
|
I/O references are user configurable without the use of jumpers or DIP switches on the module.Three module types are included in the High Level Analog Input subsystem: a Base Converter module, a Current Expander module, and a Voltage Expander module.
|
|
A typical subsystem will use a Base Converter module and (if required) one or more expander modules. This module has eight differential inputs and an expansion port. Each input can be individually configured for either voltage or current. Each of the input channels also has individual user scaling.
|
|
