Dimensions:4x21.8x29.2cm
|
Bus Termination:75, 150 Ohm resistor at both ends of electrical bus cable
|
|
Weight:0.5kg
|
Cable Distance:2000 - 7500 ft depending on the configured data rate
|
|
Series：Series 90-70
|
Memory:512 KB CMOS RAM
|
|
Module Width:Single Slot
|
Data Rates:153.5Kbaud standard /extended, 76.8Kbaud, or 38.4Kbaud
|
|
Maximum Number of Devices:30 devices / channel
|
Built-in ports:One (1) Bus Controller channel; One (1) Hand-Held Terminal port
|
|

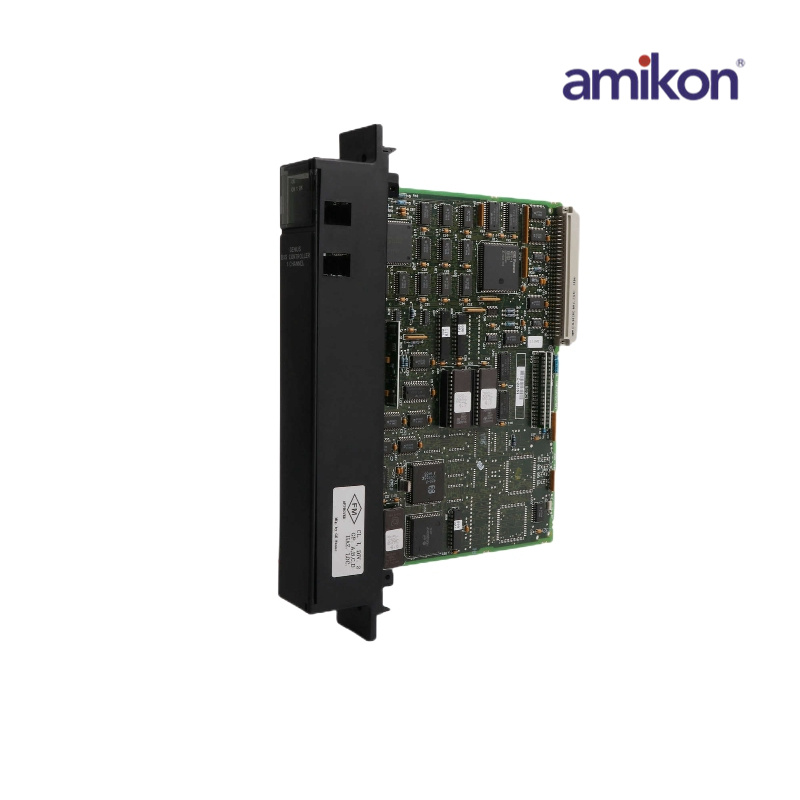

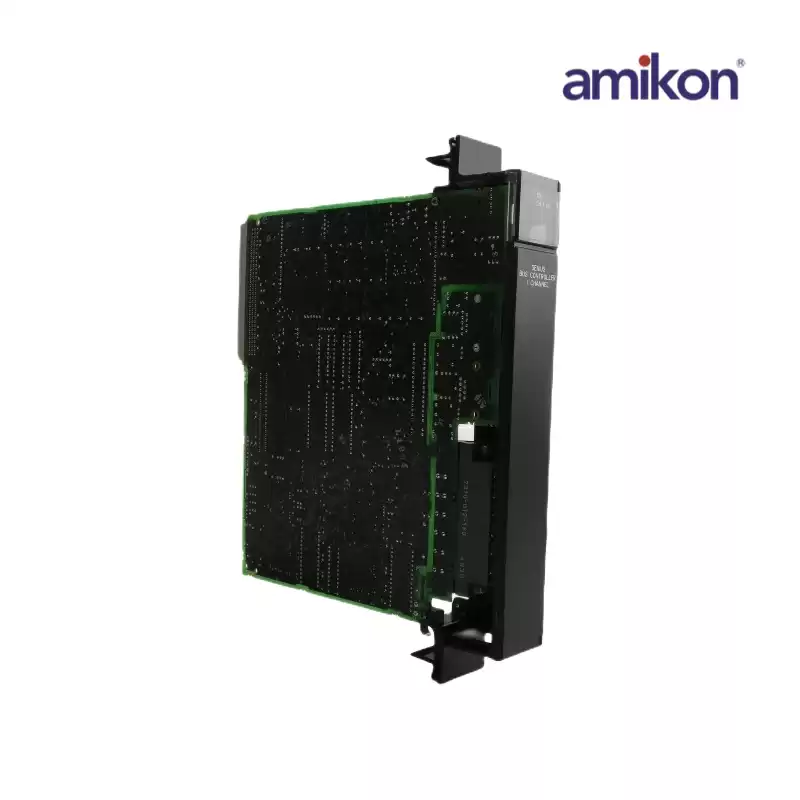

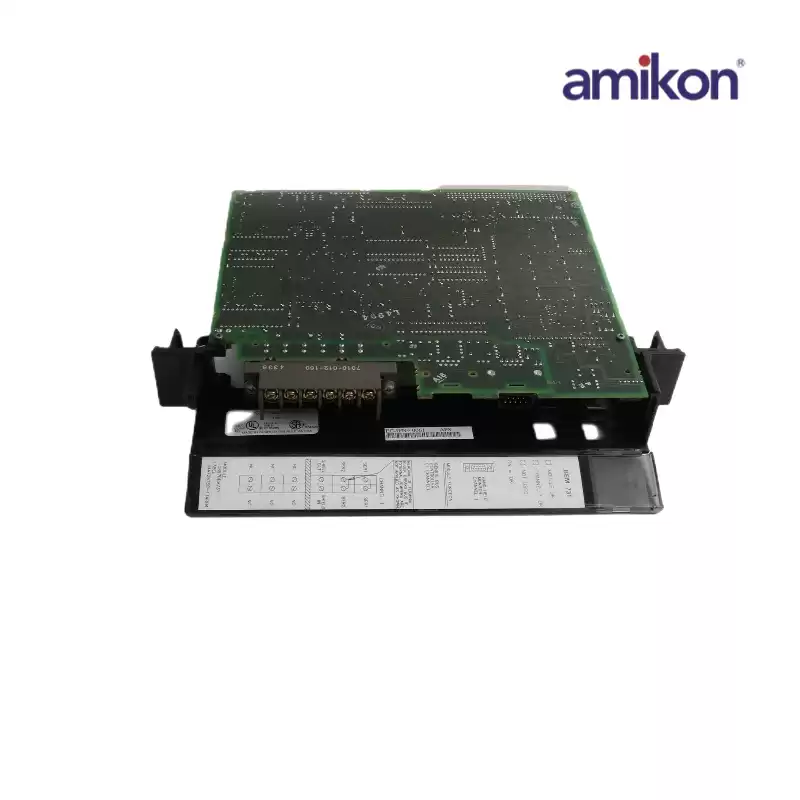

IC697BEM731 describe
The IC697BEM731 is a Genius Bus Controller Module that is part of the GE Fanuc Series 90-70 family of Programmable Logic Controller (PLC). This module is primarily used to interface up to Thirty (30) devices and transfers data by passing a token among all the configured devices on the same bus.
The IC697BEM731 has One (1) channel for interfacing with devices residing on the same bus, One (1) Hand-Held Monitor (HHM) port for downloading of configuration to the module using MS DOS or Windows programming software configurator function.
|
