Dimensions: 4cmx18cmx17.2cm
|
Weight:1.26kg
|
Product Package: Original Package
|
|
Condition: 100% New Original
|
Product Origin: USA
|
|
Full Description: New Factory Package Cleaned and Tested. With 1 Year Warranty.
|
|

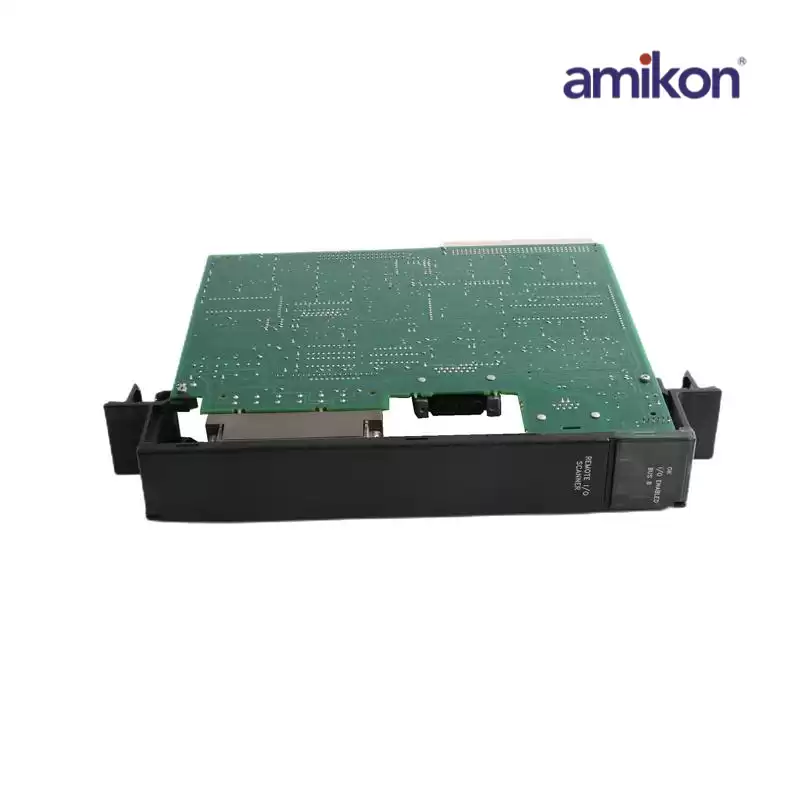

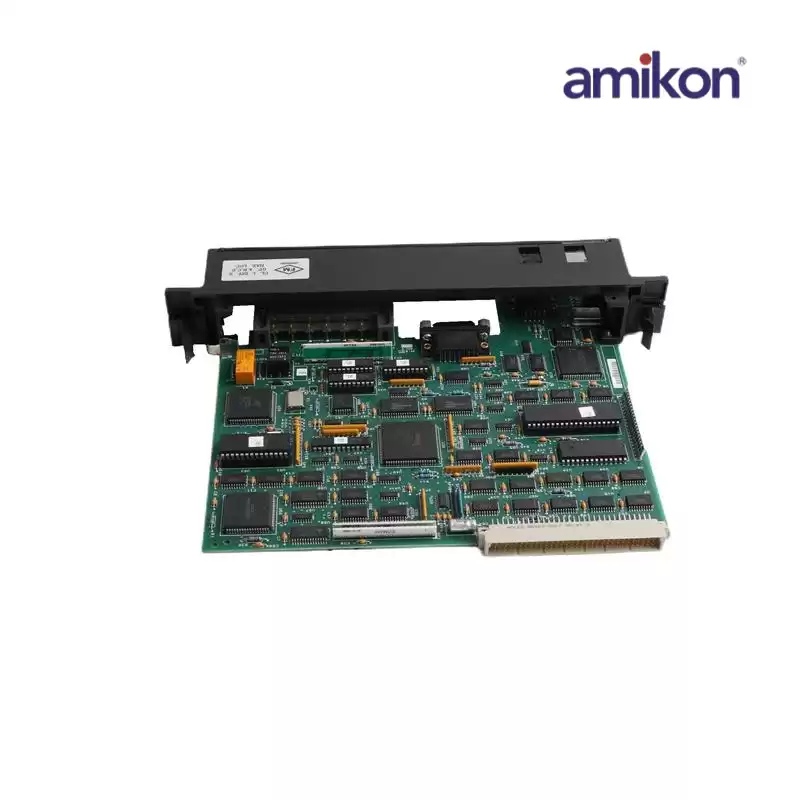

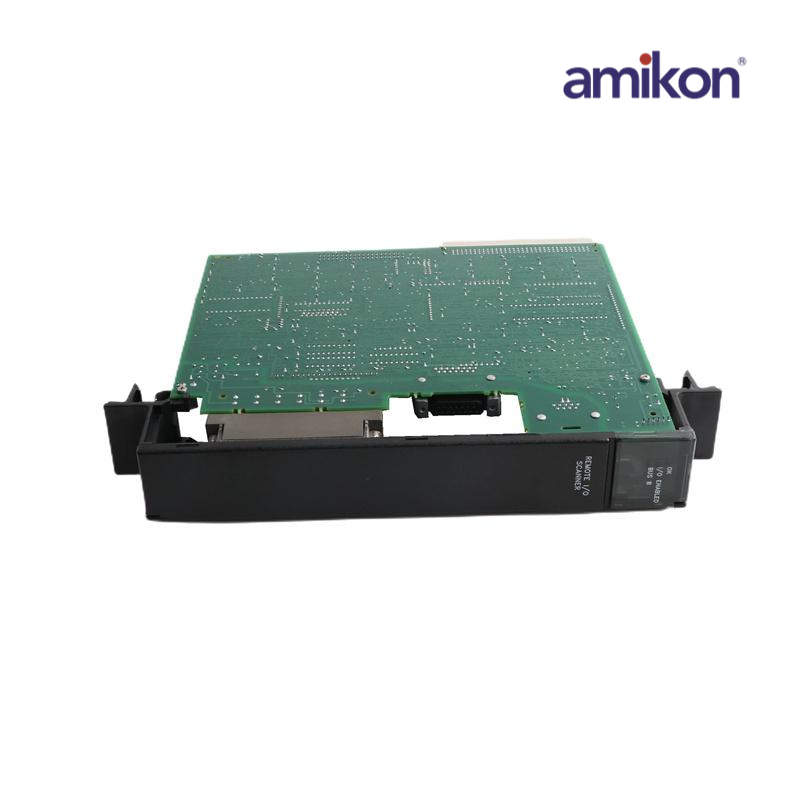

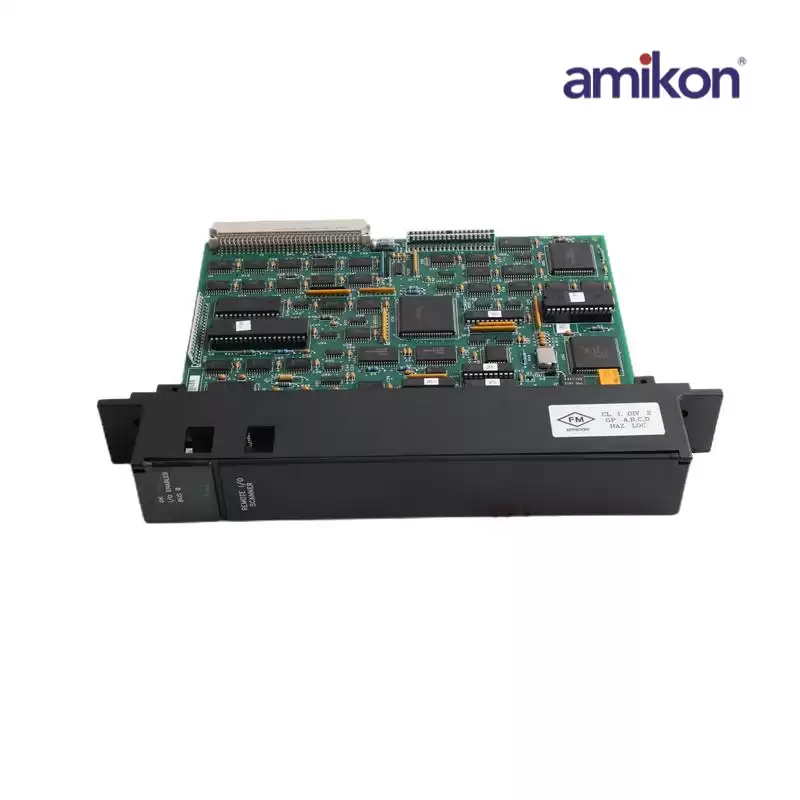

IC697BEM733
|
The IC697BEM733 scanner can accommodate numerous combinations of discrete and analog inputs and outputs regardless of the number of racks in the drop. A remote drop can include all available IC697 discrete modules, analog modules, and analog expander modules. Bus Transmitter, Bus Receiver, PCM, and ADS modules can also be located in a remote drop.
The IC697BEM733 can handle up to 128 input/output bytes per remote drop (comprised of a remote I/O scanner and the corresponding modules). A remote drop can include a maximum of eight racks, which are linked by a bus transmitter and a bus receiver. Racks with 9 or 5 slots are appropriate. The distance from the first rack to the last in a remote drop is no more than 50 feet or 15 meters.
|
