Dimensions:4x21.8x29.2cm
|
Current:3.1 Amperes
|
|
Weight:0.74kg
|
Elapsed time clock accuracy:0.01 % max
|
|
Series：Series 90-70
|
Memory:512 KB CMOS RAM
|
|
Voltage:5 Volts DC
|
Boolean function time:0.4 microseconds
|
|
Operating frequency:96 MHz
|
Temperature:0-50 Degrees Celsius
|
|

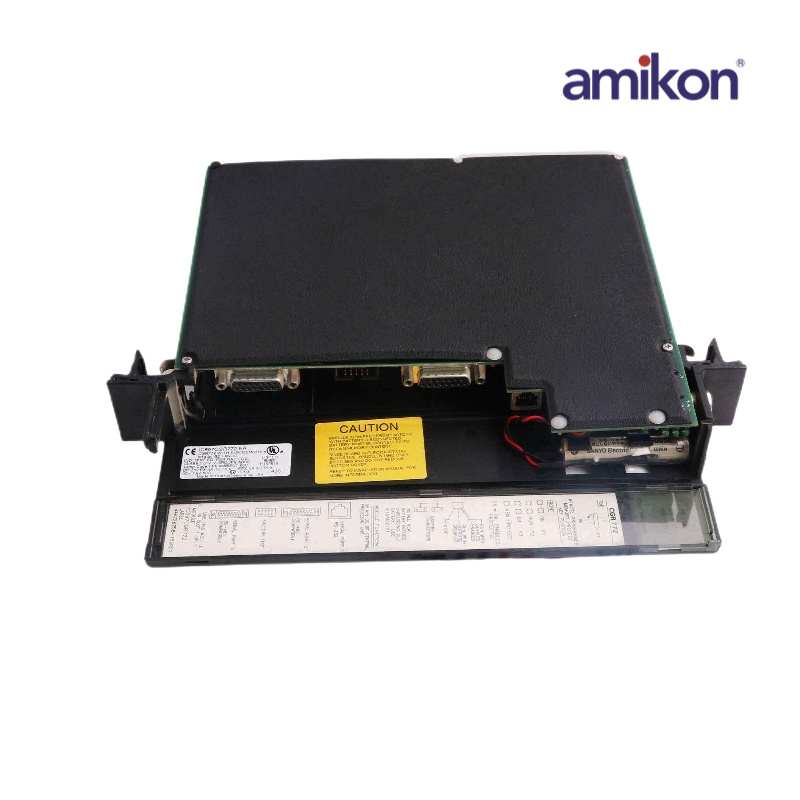

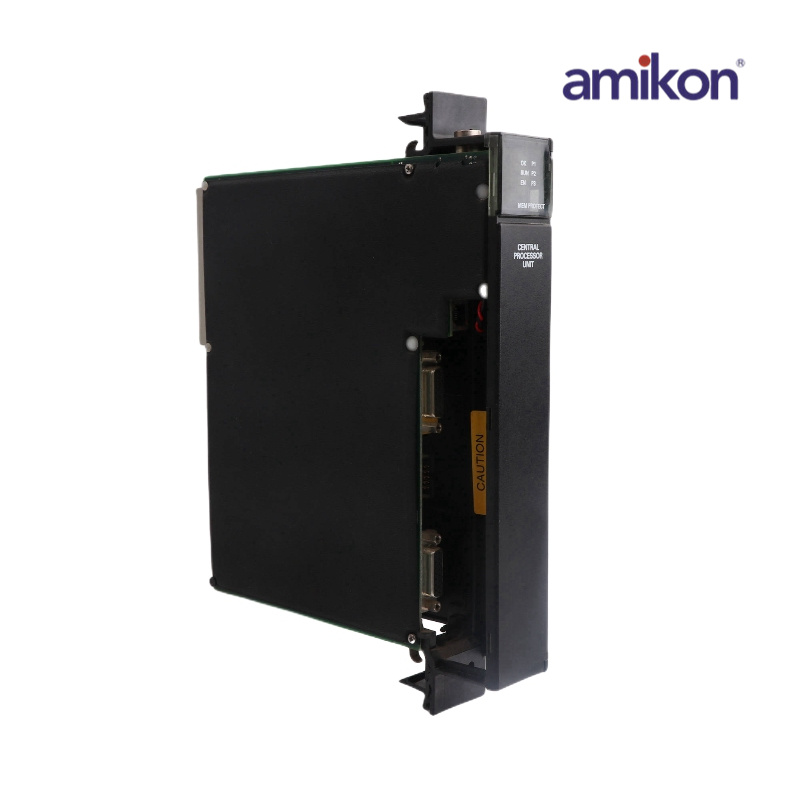

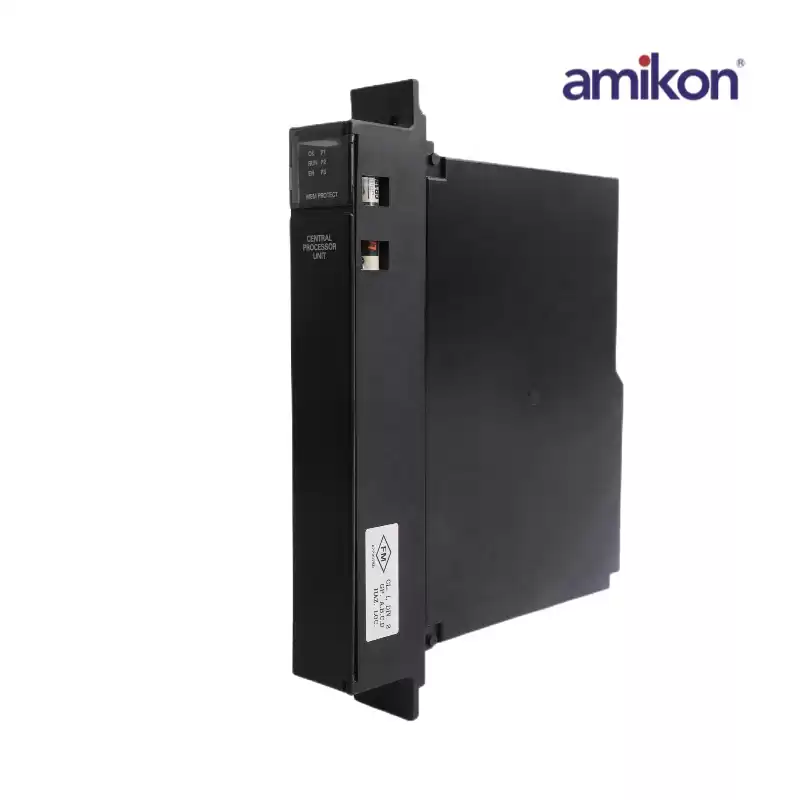

IC697CGR772 describe
The IC697CGR772 module is a dual bus CPU module by GE Fanuc. It has a running frequency of 96 MHz. It can easily compute floating-point operations and handle different application demands. The CPU is equipped with an 80486 DX4 microprocessor that supports up to 8000 analog I/O. It can compute a single boolean function in 0.4 microseconds. The IC697CGR772 module uses a battery-backed CMOS RAM with a capacity of 512 KB. The replaceable lithium-ion battery known as the IC697ACC701 battery in the module is also used to maintain the date and time of the module. The module is fully compatible with the IC660 and IC661 devices by GE Fanuc. The CPU features a manual switching feature that enables it to change between the communication modules. The front section of the module is equipped with 7 LED indicators for different status and event updates.
|
