Dimensions:4x21.7x29.2cm
|
Module Operating Voltage:+5 VDC, +12 VDC (from PLC power supply
|
|
Weight:0.52kg
|
Power Supply: 24 VDC Input, 90 watt
|
|
Series：Series 90-70
|
Input Range：4-25 mA
|
|
Module Current Drain:2.0 Amps (+5 VDC), typical0.5 Amps (+12 VDC), maximum when powering an external AUI transceiver
|
Module Operating Temperature:0 C to +55C (32F to 131F), ambient
|
|
IC697CMM742 describe

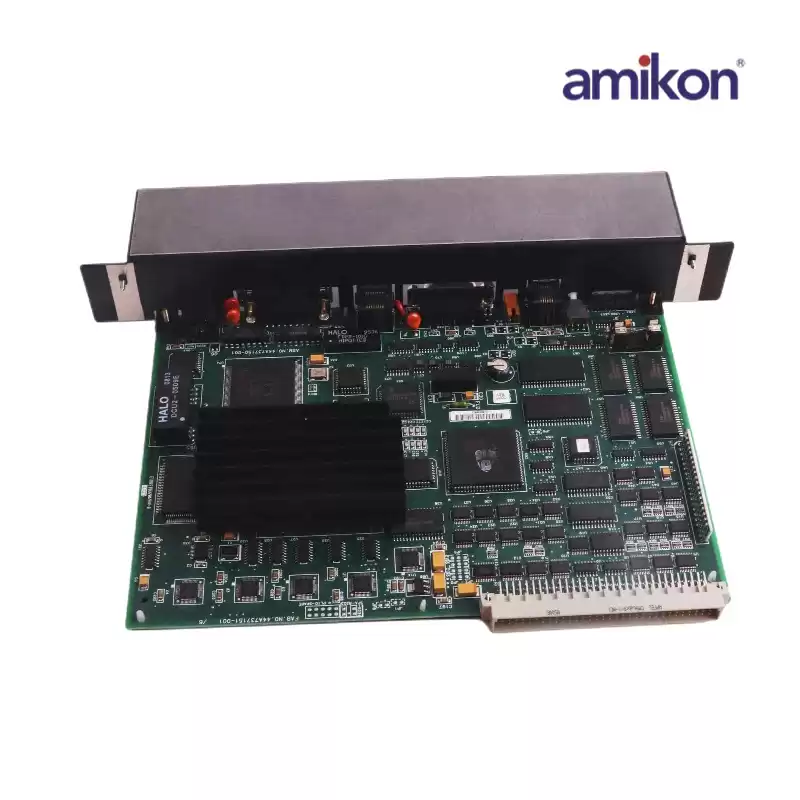

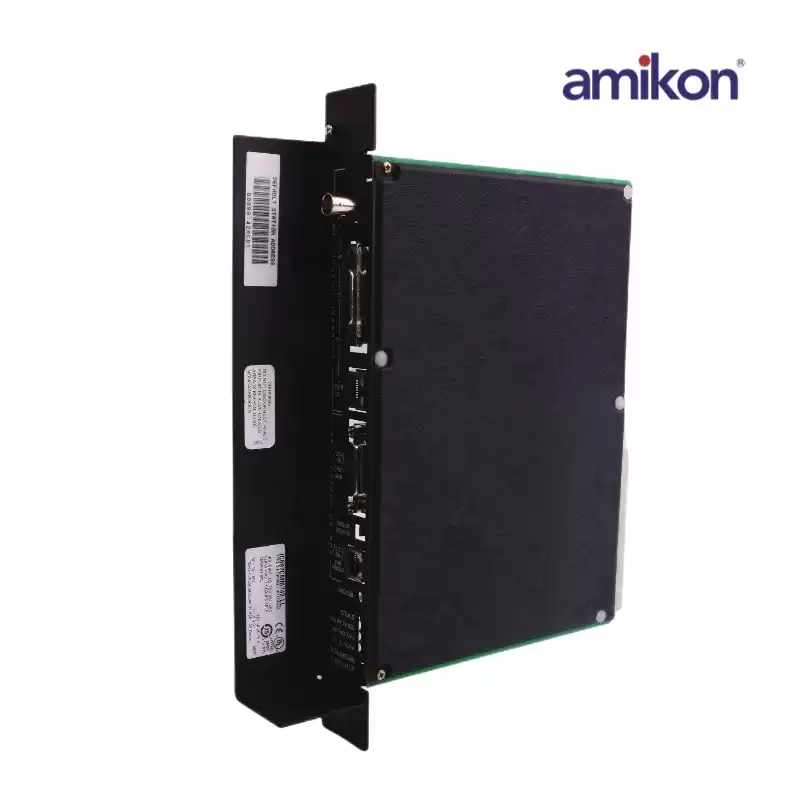

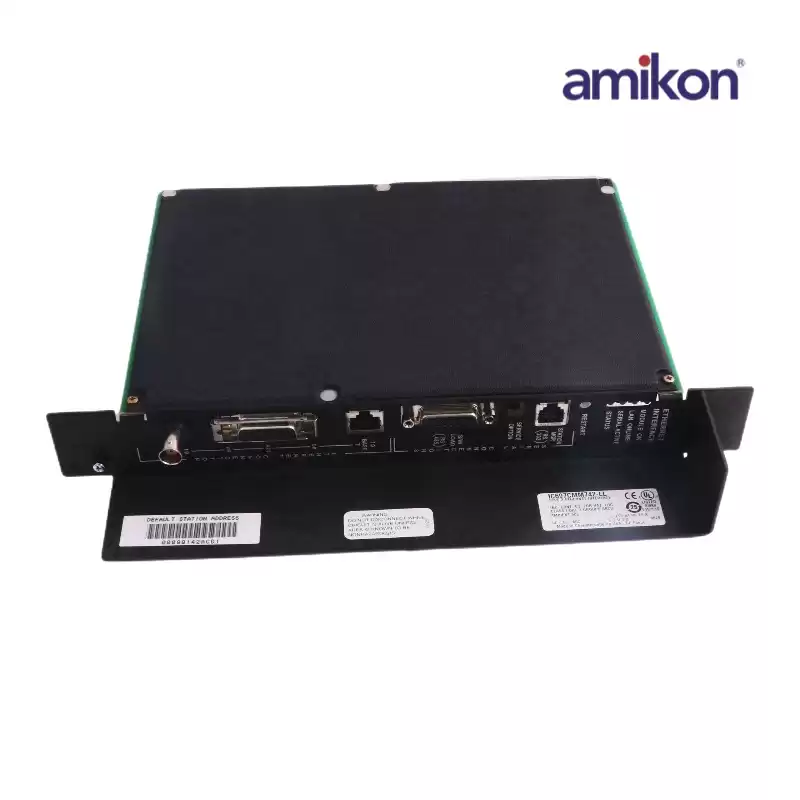

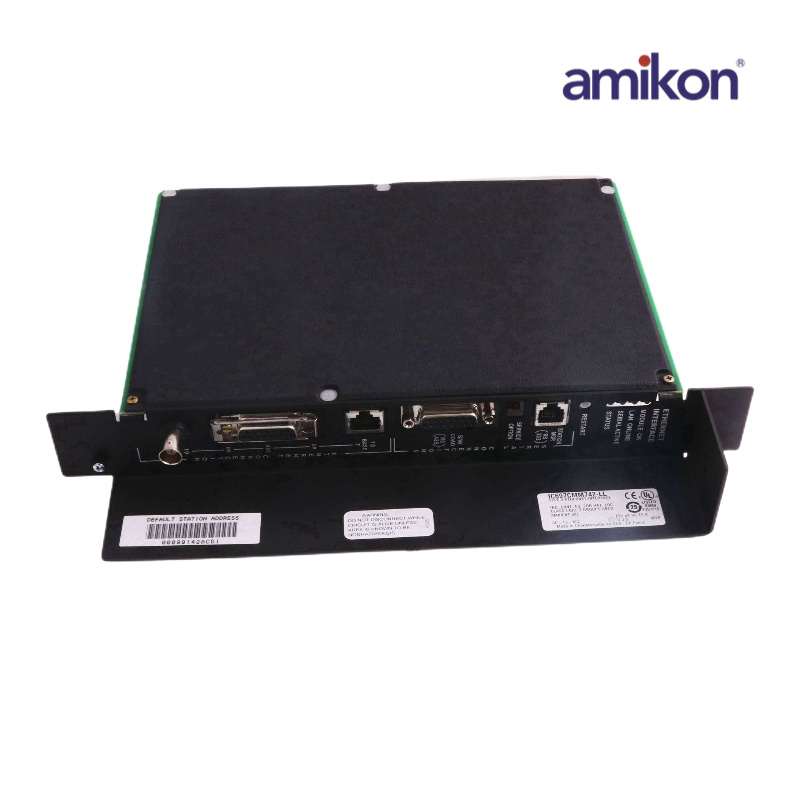

The GE Fanuc Series 90-70 IC697CMM742 Ethernet interface is intended to provide TCP/IP communication to its host PLC system. It is installed in the PLC system that hosts it by being plugged into 1 slot in the PLC CPU rack and then by being configured with the IC641 PLC programming software. As many as 4 Ethernet interfaces like the IC697CMM742 Ethernet interface can be installed in the same PLC CPU rack. The interface can only use 1 of its 3 network ports at a time and it will select which network port to use at a certain time. The IC697CMM742 Ethernet interface has 4 LEDs for interface status updates which include the “MODULE OK” LED, the “LAN ONLINE” LED, the “SERIAL ACTIVE” LED, and the “STATUS” LED.
|
