Dimensions:4x22.5x29.2cm
|
Processing speed:200 KHz
|
|
Weight:0.62kg
|
No. of output channels:Four (4) Positive Logic outputs
|
|
Series：Series 90-70
|
Input Voltage:5 VDC; 10-30 VDC
|
|
Input frequency:200 kHz in Type A, D and Type E in Up/Down Quad mode; 800 kHz at Type E in Quad B mode
|
Output ratings:10 to 30 VDC @ 20 mA maximum
|
|
IC697HSC700 describe

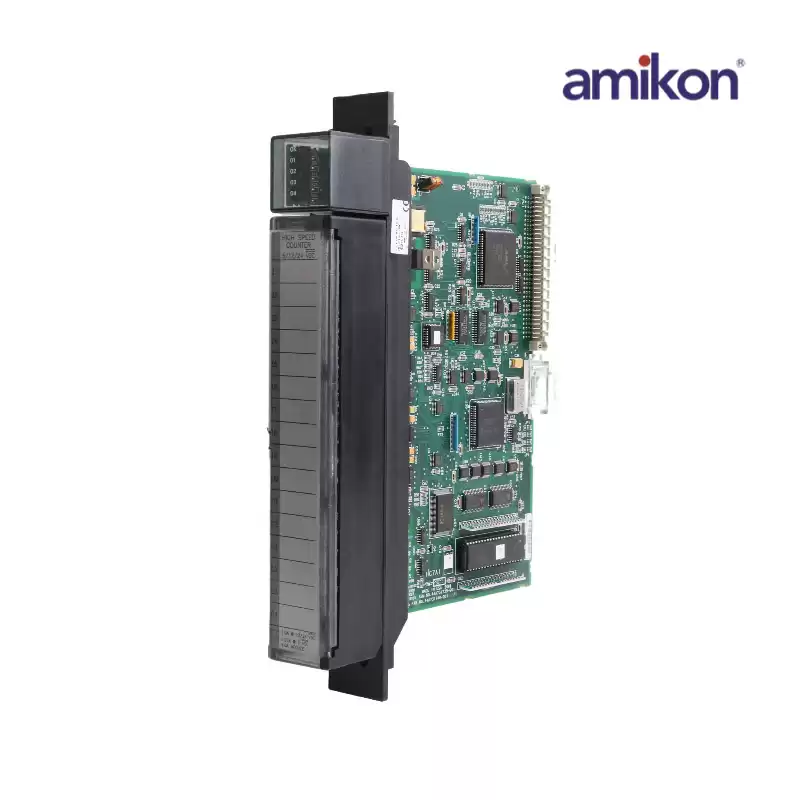

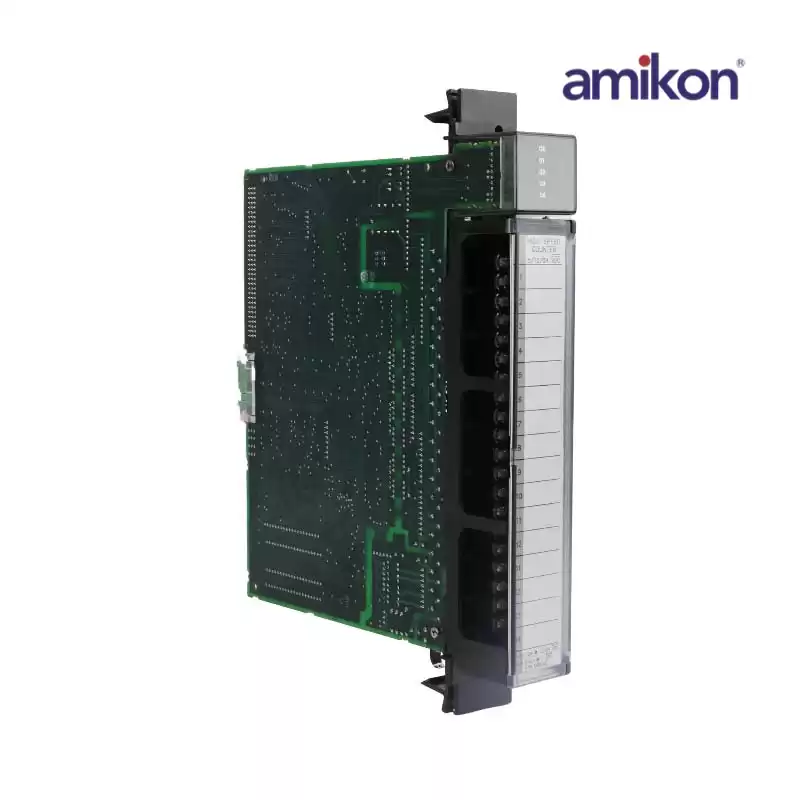

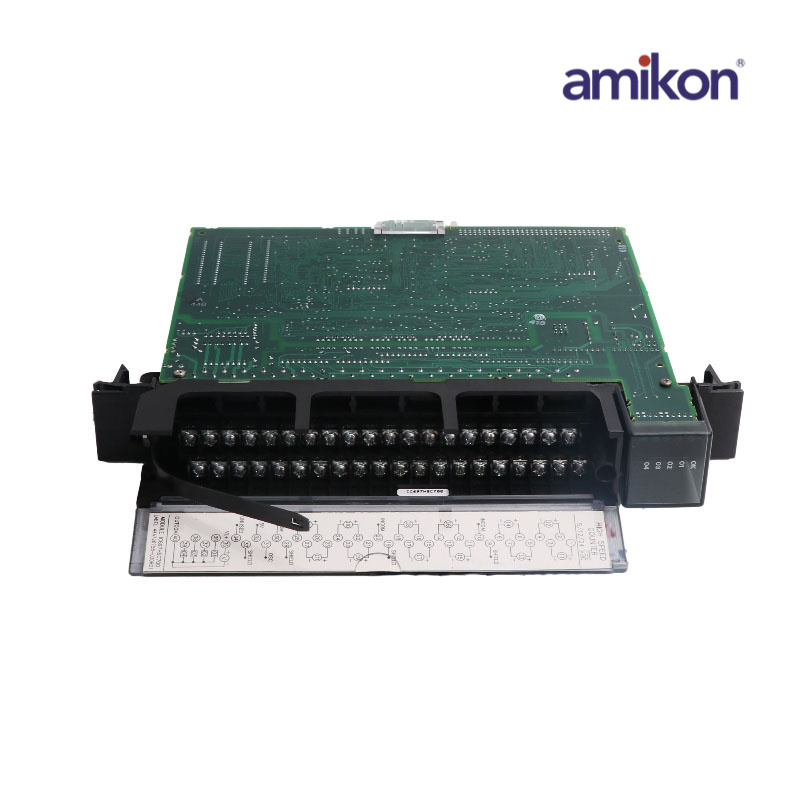

The IC697HSC700 is a Series 90-70, High-Speed counter module. This module is formerly produced by GE Fanuc, now acquired by Emerson.
It is an optional module that features Twelve (12) single-ended or differential logic inputs operating at 5VDC or 10-30 VDC and Four (4) Positive Logic outputs providing 20 mA at 10-30 VDC output ratings. This high-speed counter module has a maximum count rate of 200 kHz in Type A, D, and Type E in Up/Down Quad mode and 800 kHz at Type E in Quad B mode.
|
