Technical Specifications for IC697MDL340
|
Manufacturer
|
General Electric
|
|
Condition
|
100% New Original
|
|
Brand
|
General Electric
|
Series
|
Series 90-70
|
|
Part Number
|
IC697MDL340
|
Voltage Range
|
120 volts AC
|
|
Product Name
|
Output Module
|
Current Required
|
0.25 Amps
|
|
Manufacture Year
|
2022
|
Frequency Range
|
47 to 63 Hz
|
|
Product Package
|
Original Package
|
Shipping term
|
TNT DHL FEDEX EMS UPS
|

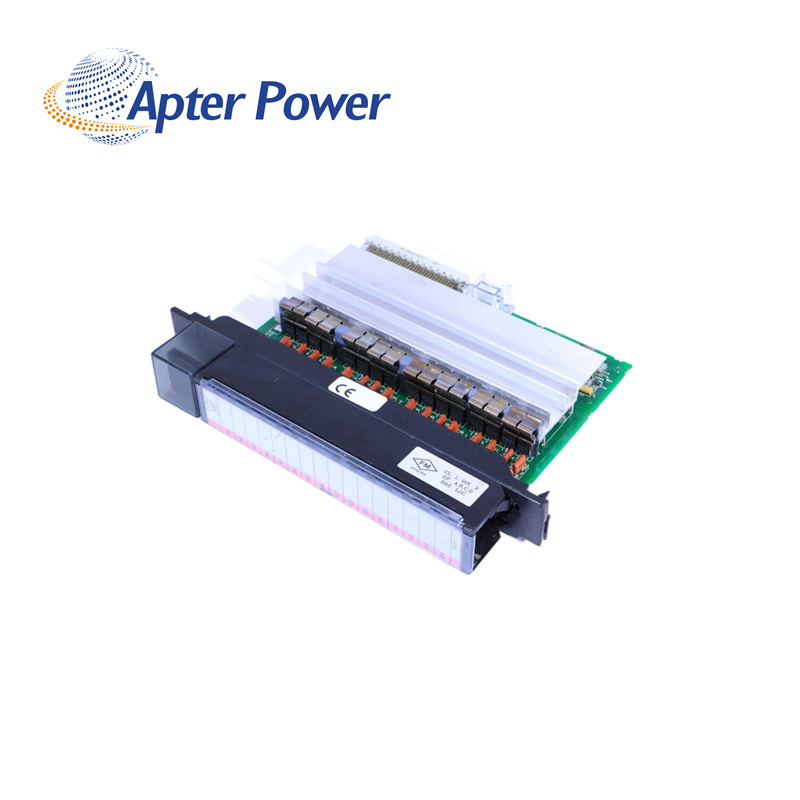

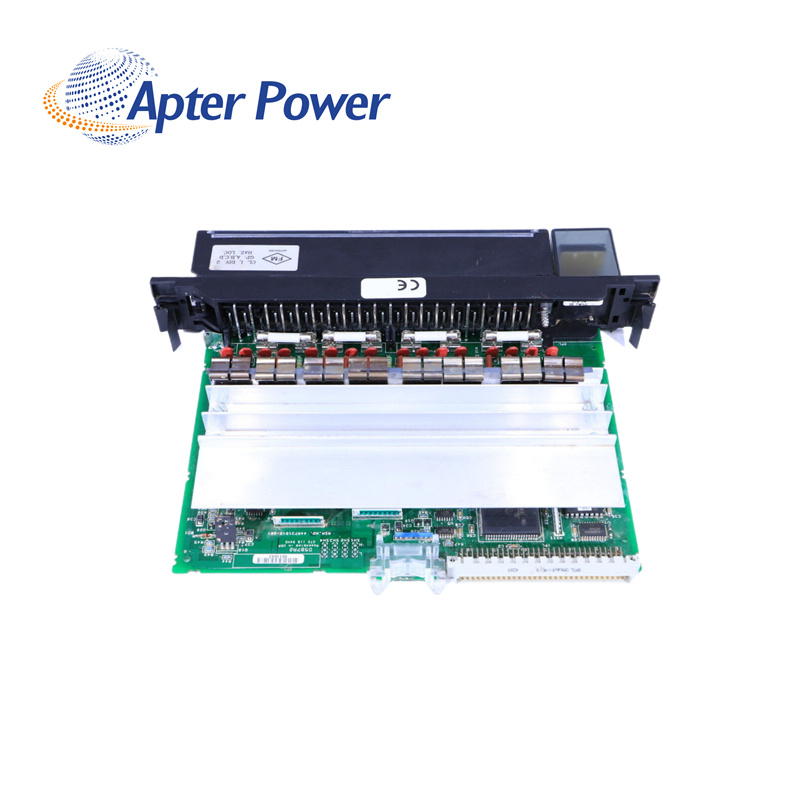

About IC697MDL340
|
The IC697MDL340 is compatible with an array of load devices, including solenoids, motor starters, and indicators. The rating of 2 amps per point relates to the long term capacity of each point. Due to heat dissipation within the module, the max current capacity for each group of outputs is limited to 4 amps.
The IC697MDL340 module delivers a high degree of inrush current, which makes the outputs ideal for a number of inductive and incandescent loads. IC697MDL340 is a 120 VAC 16-Point Output Module by GE for the Series 90-70. Highlighted features include four isolated groups for a total of 16 points, 2 amp capacity per point, and 10x rated current high inrush capacity. This discrete output module allows the groups of points to be used on separate phases of the AC supply.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to replace.
