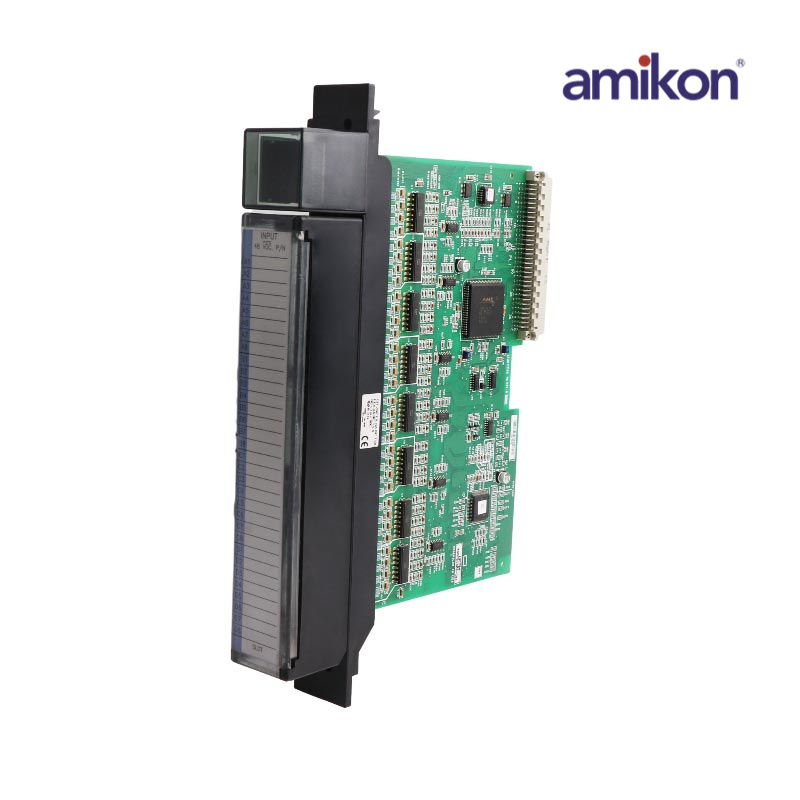

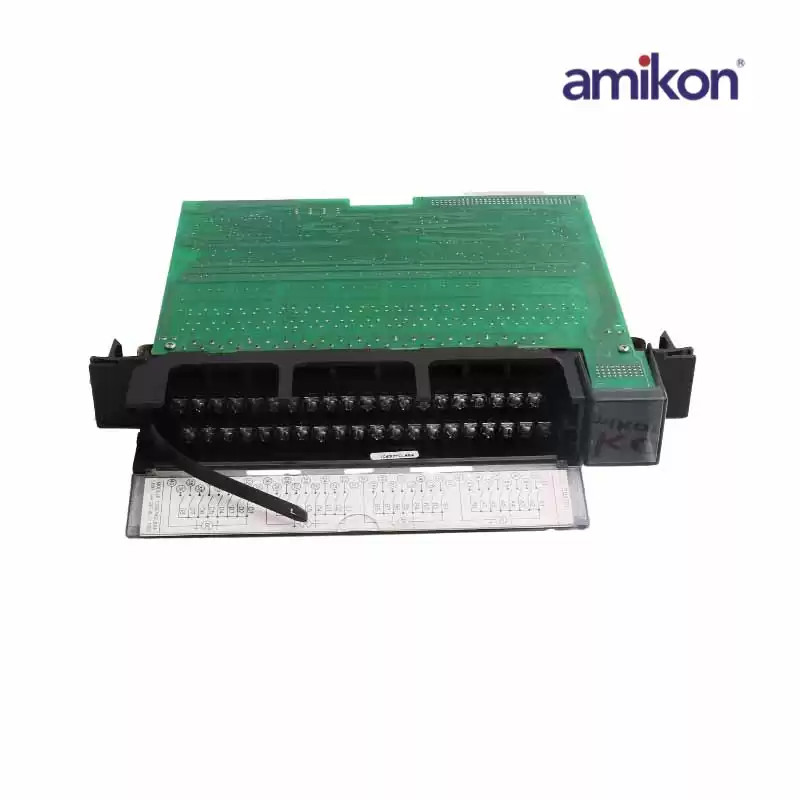

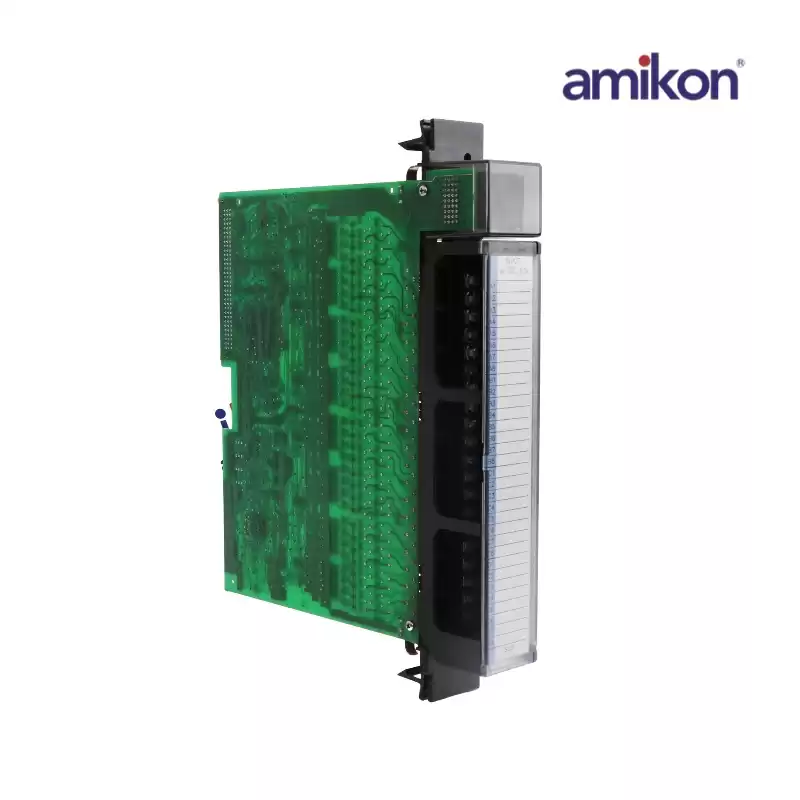

General Electric IC697MDL654 48 Vdc Input, Positive/Negative Logic

Dimensions:4x22x29.3cm

 Input Voltage Range (Vs):–3 to +56 volts DC

Weight:0.56kg

 Input Current:4.7mA (typical) at rated voltage

Series：Series 90-70

 Current Required from 5VDC backplane bus:0.30 amps

Inputs per Module:32 (four groups of eight inputs each)

 Rated Voltage:48 volts DC

IC697MDL654  describe

The IC697MDL654 module is a GE Fanuc positive/negative logic module that operates as input component for industrial machine systems that are based on programmable controllers. The module is part of the GE Fanuc IC697MDL Series 90-70 product line and it has 32 inputs. The IC697MDL654 module is compatible with various electronic devices and it is capable of working as both a positive logic component and a negative logic component. The unit is used with 2-wire and 3-wire switches with a voltage drop of 3 milliAmps at 5 Volts. The module is designed for rack mounting and it does not need much space for proper ventilation. However, the users of the module should follow the manufacturer's basic guidelines for wiring and installation in order to get the best out of their module.
