Technical Specifications for IC697MDL750
|
Manufacturer
|
General Electric
|
|
Condition
|
100% New Original
|
|
Brand
|
General Electric
|
Load current
|
100 milliAmps
|
|
Part Number
|
IC697MDL750
|
Current draw
|
0.25 A
|
|
Product Name
|
Output module
|
Required current
|
0.25 Amps
|
|
Manufacture Year
|
2022
|
Supply voltage
|
20 - 60 VDC
|
|
Product Package
|
Original Package
|
Shipping term
|
TNT DHL FEDEX EMS UPS
|

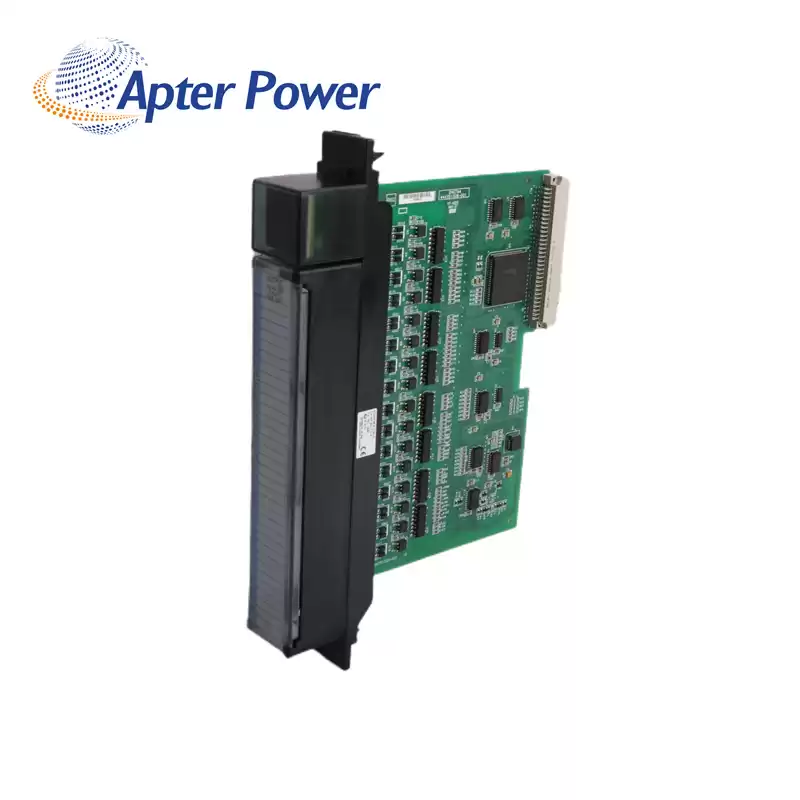

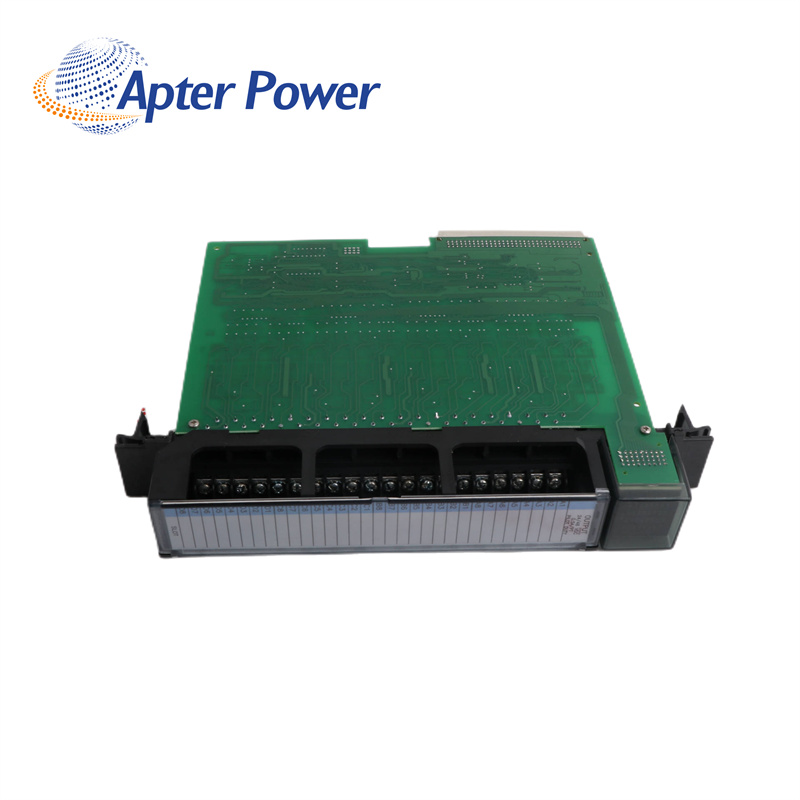

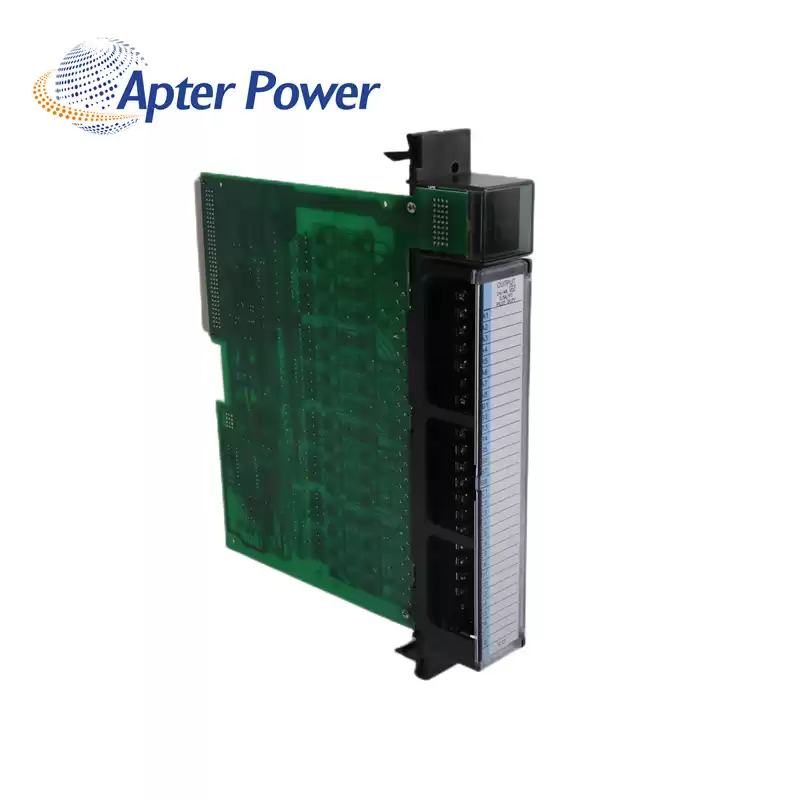

About IC697MDL750
|
The IC697MDL750 output module has only 1 Volt (2 Ohms) of rated voltage drop for its outputs and it has an output voltage range of 20 to 60 Volts DC. The operating voltage of the unit is 24 to 48 Volts DC. The installation process of the module is easy and the wiring process is simple as well.
The IC697MDL750 has a current draw of 0.25 Ampere and is designed incompatibility with VME standard C.1. This module comes with a high-density removable terminal block ideally used with wire bundles. Each terminal of the removable terminal accepts a maximum of Two (2) wires with a size of #22 AWG (0.36 mm2) through #14 AWG (2.10 mm2).
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to replace.
