Dimensions: 4cmx18cmx17.2cm
|
Weight:1.26kg
|
Product Package: Original Package
|
|
Condition: 100% New Original
|
Product Origin: USA
|
|
Full Description: New Factory Package Cleaned and Tested. With 1 Year Warranty.
|
|

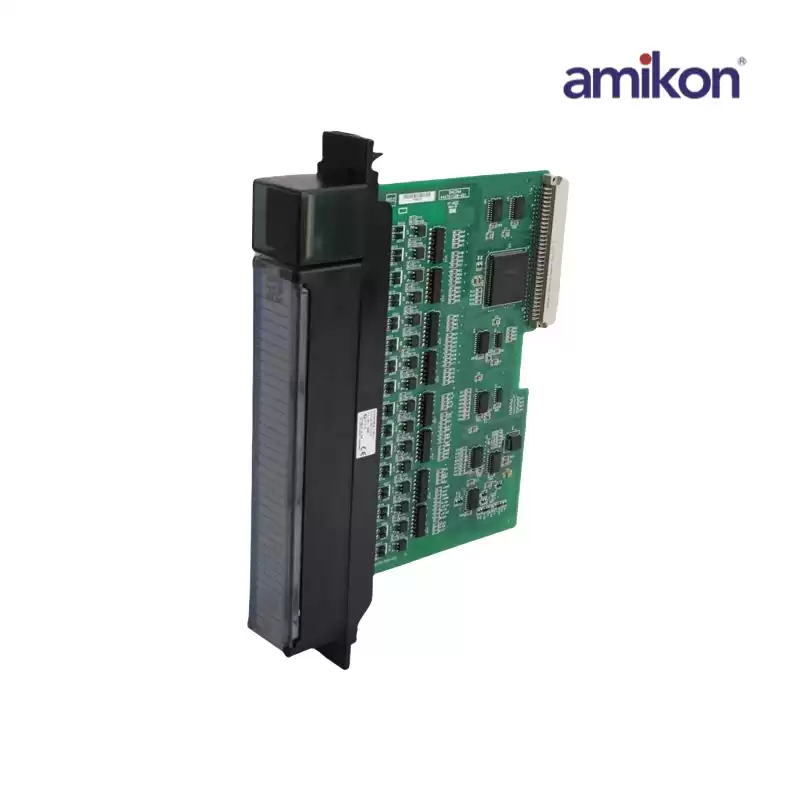

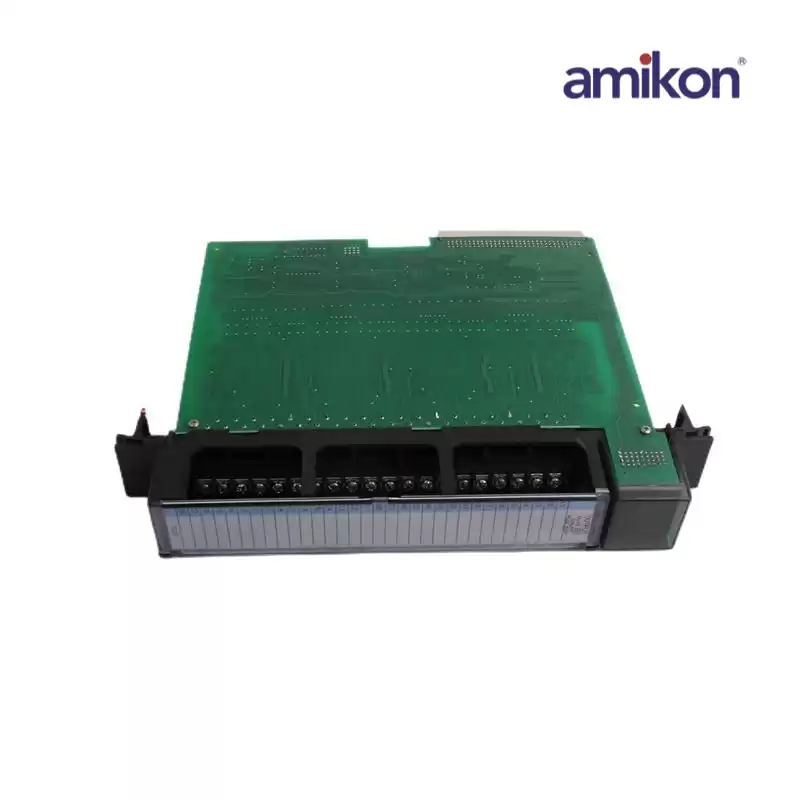

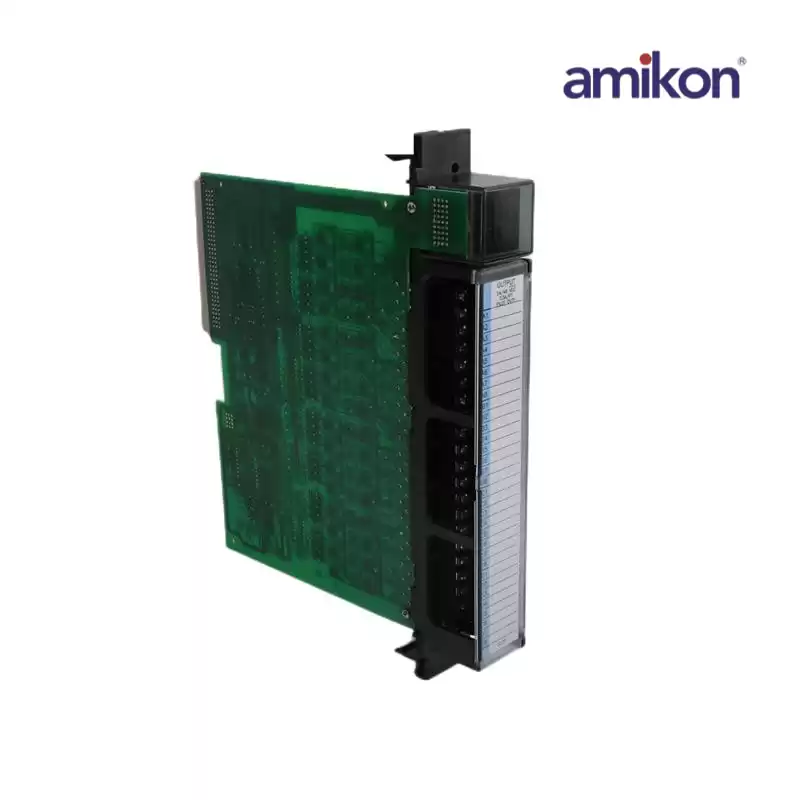

IC697MDL750
|
The IC697MDL750 output module has only 1 Volt (2 Ohms) of rated voltage drop for its outputs and it has an output voltage range of 20 to 60 Volts DC. The operating voltage of the unit is 24 to 48 Volts DC. The installation process of the module is easy and the wiring process is simple as well.
The IC697MDL750 has a current draw of 0.25 Ampere and is designed incompatibility with VME standard C.1. This module comes with a high-density removable terminal block ideally used with wire bundles. Each terminal of the removable terminal accepts a maximum of Two (2) wires with a size of #22 AWG (0.36 mm2) through #14 AWG (2.10 mm2).
|
