Technical Specifications for IC697MDL940
|
Manufacturer
|
General Electric
|
|
Condition
|
100% New Original
|
|
Brand
|
General Electric
|
Frequncy
|
47-63 Hz
|
|
Part Number
|
IC697MDL940
|
Voltage Range
|
120/240 VAC
|
|
Product Name
|
Relay Output Module
|
Load Capacity
|
16 amps
|
|
Manufacture Year
|
2022
|
Input Current
|
750mA
|
|
Product Package
|
Original Package
|
Shipping term
|
TNT DHL FEDEX EMS UPS
|

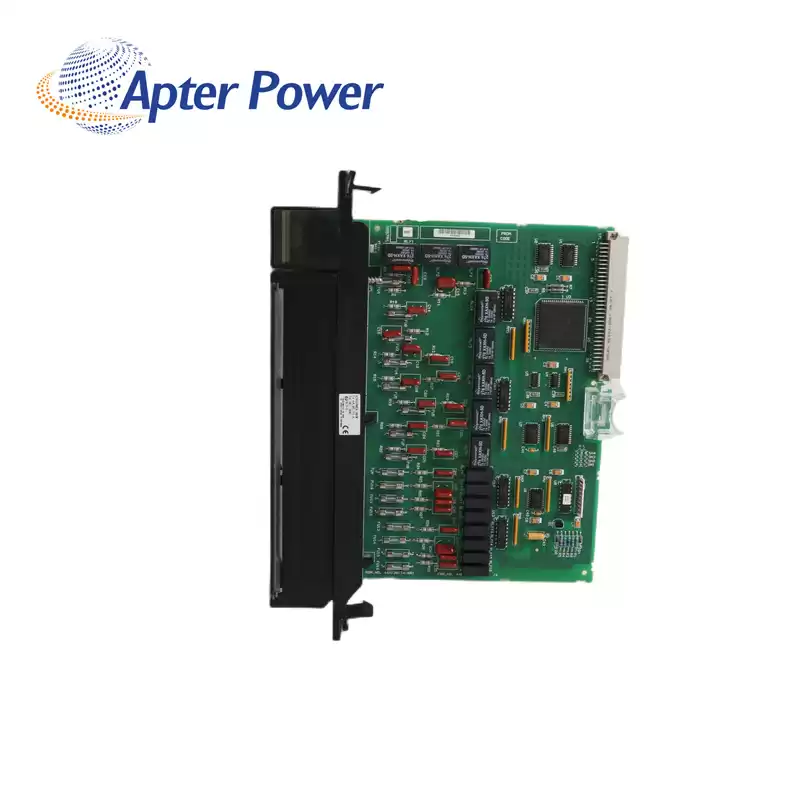

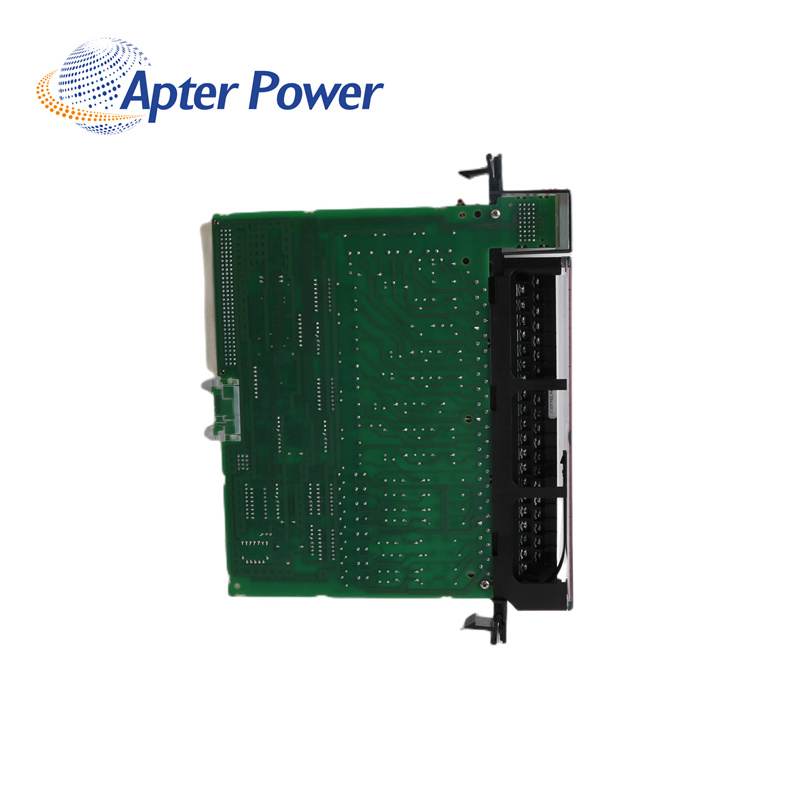

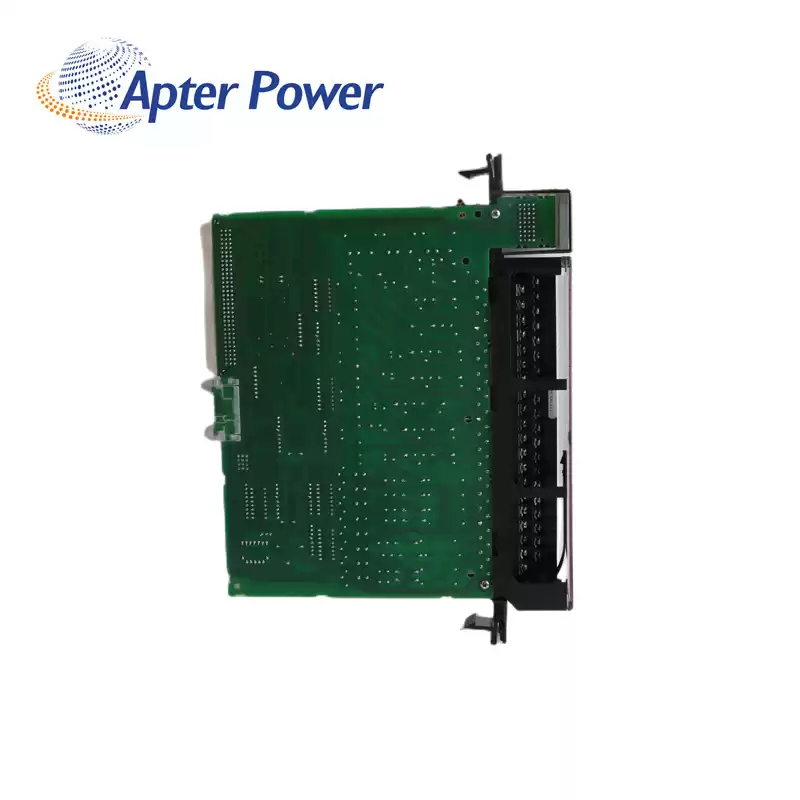

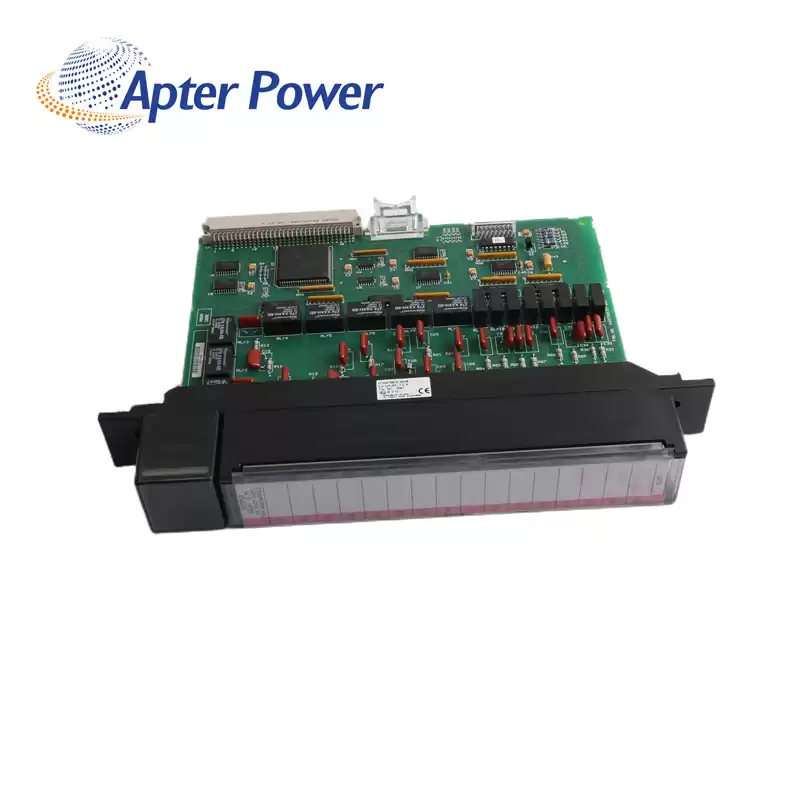

About IC697MDL940
|
The IC697MDL940 module supplies power to energize the relay coils. Each output is fused individually and suppressed with an RC snubber. Be sure to locate the LED indicators at the top of the module. Their role is to indicate the ON-OFF status of each point on the PLC module. For accurate placement with a similar PLC module, the module is mechanically keyed.
The IC697MDL940 is a rugged 16-point output relay module from the GE Fanuc 90-70 Series that scores highly on both versatility and ease of use. It operates between low and medium power loads such as lamps, contactors, and relays. The module has a rating of 2 Amps per point at a voltage of 120/240 VAC or 24 VDC.
|
