Dimensions:6.5x21.8x29.3cm
|
Input Voltage Range: 90 to 264 VAC or 100 to 150 VDC
|
|
Weight:1.02kg
|
IInput Power: 90 watts at full load
|
|
Series：Series 90-70
|
Output power: 56 watts
|
|
Nominal Rated Voltage: 120/240 VAC or 125 VDC
|
DC Output: + 5VDC up to 11 amps
|
|
IC697PWR710 describe

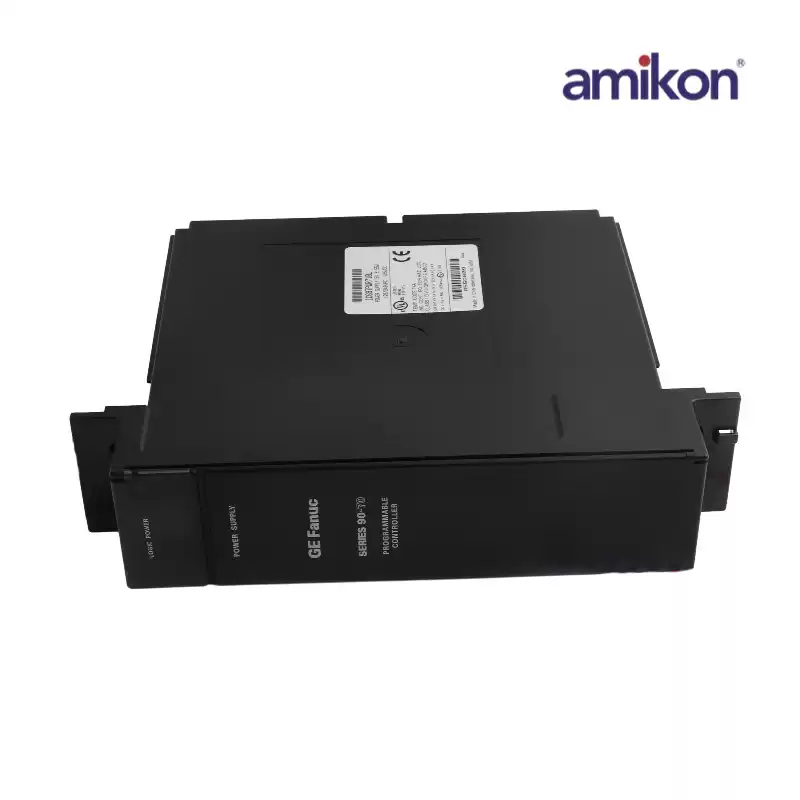

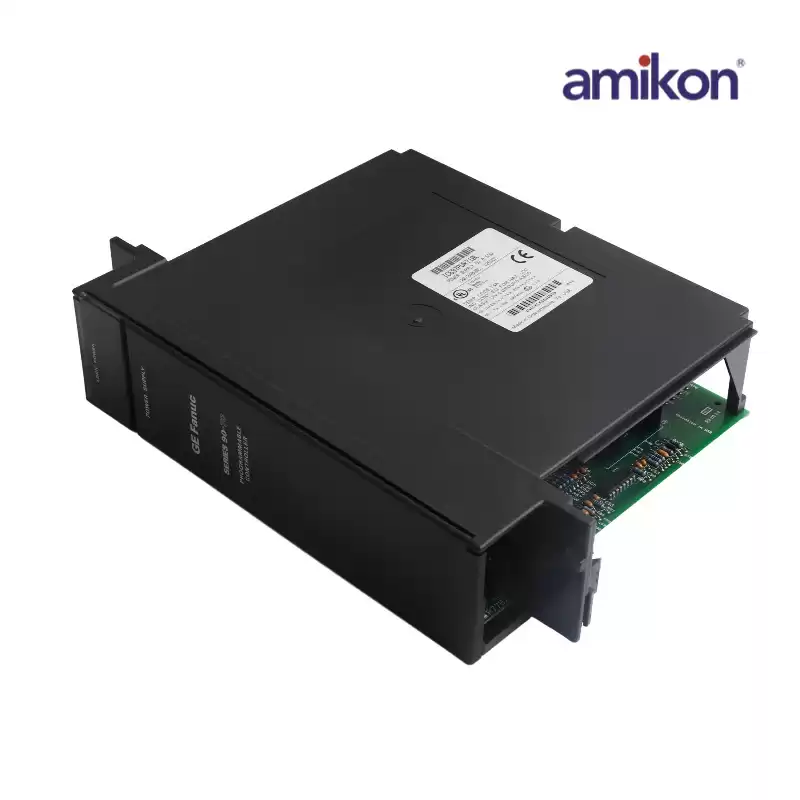

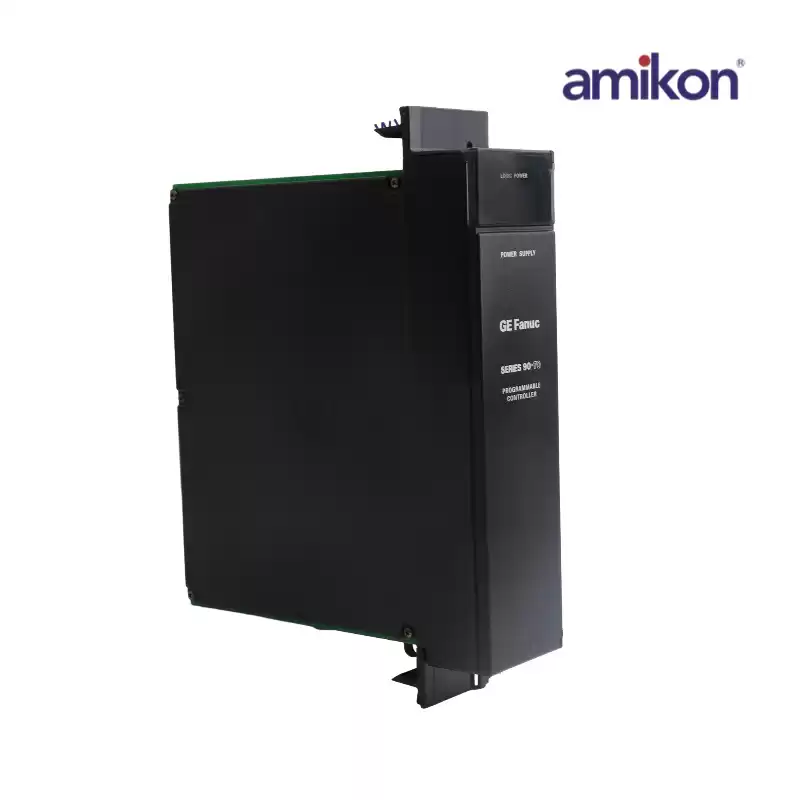

The IC697PWR710 power supply module is a 120 to 240 Volts AC or 125 Volts DC rated power supply module made by GE Fanuc. The IC697PWR710 power supply module is classified under Series 90-70 of the GE Fanuc modules and it comes with active power factor correction circuits for maintaining a cohesive power factor that eliminates the need for oversized circuit breakers and wiring. The IC697PWR710 comes with an overvoltage protection feature. The electronic overvoltage protection circuit clamps the output in case of the 5 Volts bus voltage rising and exceeding 6.2 Volts. This prevents an external overvoltage on the output from causing the power supply fuse to open. The IC697PWR710 power supply module is set so that if an internal fault in the power supply happens as a result of an overvoltage condition, the fuse does not open.
|
