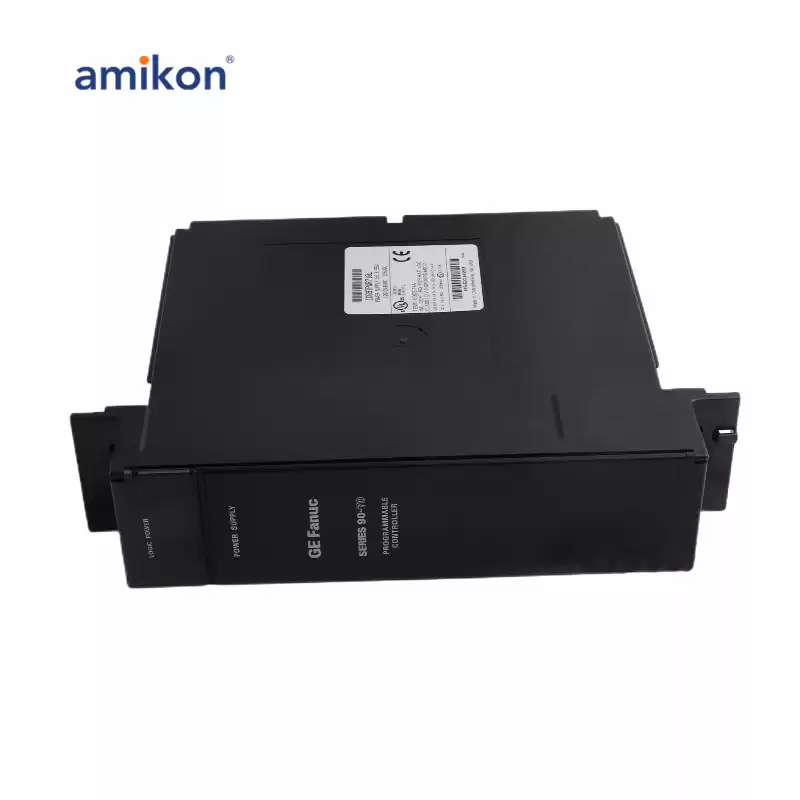

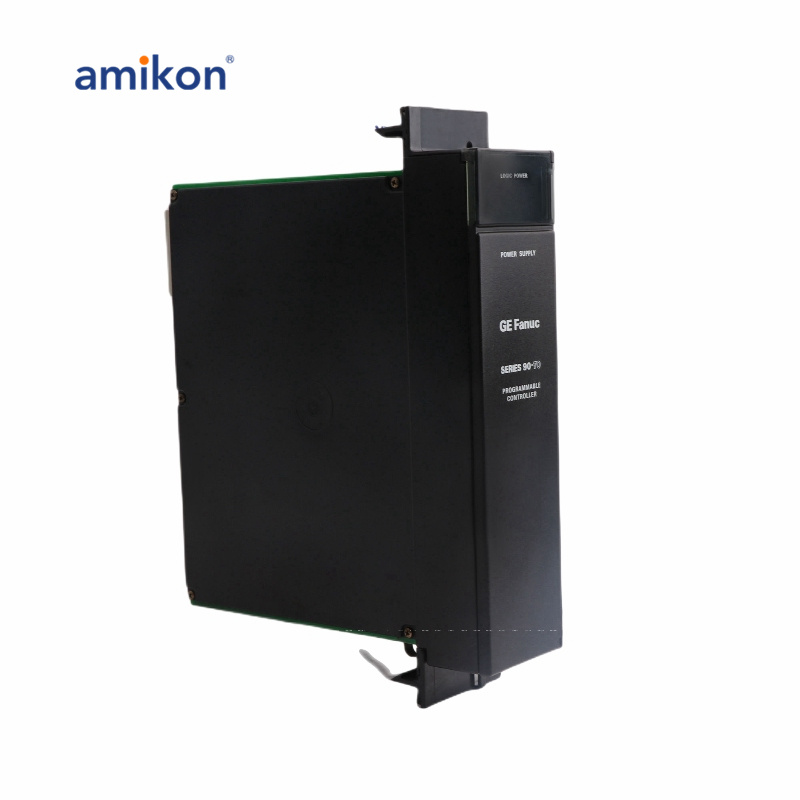

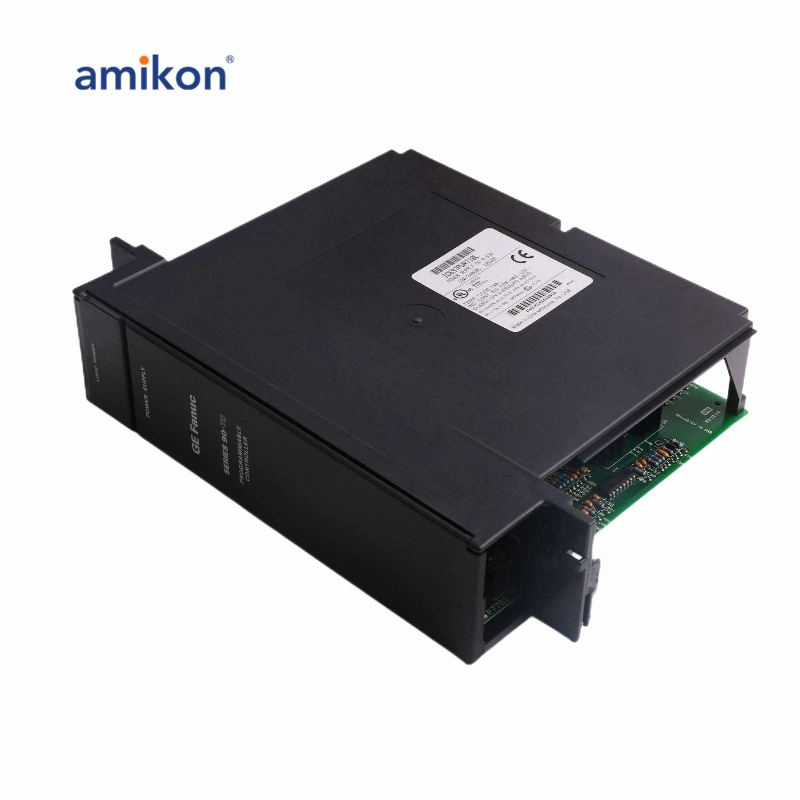

The IC697PWR710 is a Power Supply Module.This Power Supply Module for the programmable controller is a rack-mounted unit that plugs directly into a 48-pin backplane-mounted connector in the leftmost slot in the rack. It provides +5 volt power and logic level sequencing signals to the backplane.
|
|
|
IC697PWR710 Data sheet
|
This power supply may be used either in a single rack application, or may also be used to provide power to a second rack if the total load is within the supply rating.
|
|
Interconnection to the second rack is through an available prewired cable.The power supply output will ride through a one-cycle total loss of input power at full load.
|
|
Protection is provided for overcurrent and overvoltage fault conditions.The power supply provides an electronic overcurrent limit at 12 amperes, typical. If the maximum current rating is exceeded, the output voltage will drop.
|
|
