Dimensions:6.5x21.8x29.3cm
|
Input Voltage Range: 90 to 264 VAC or 100 to 150 VDC
|
|
Weight:1.64kg
|
Input Power: 135 watts at full load
|
|
Series：Series 90-70
|
Output Power: 100 watts
|
|
Nominal Rated Voltage: 120/240 VAC or 125 VDC
|
DC Output: + 5VDC, +12 VDC and -12 VDC
|
|
IC697PWR711 describe

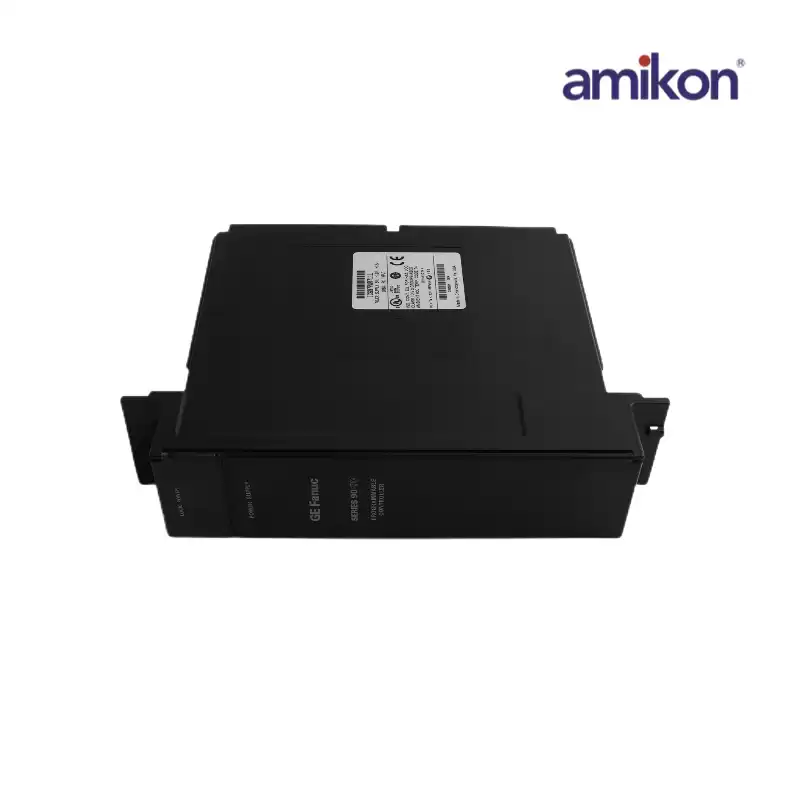

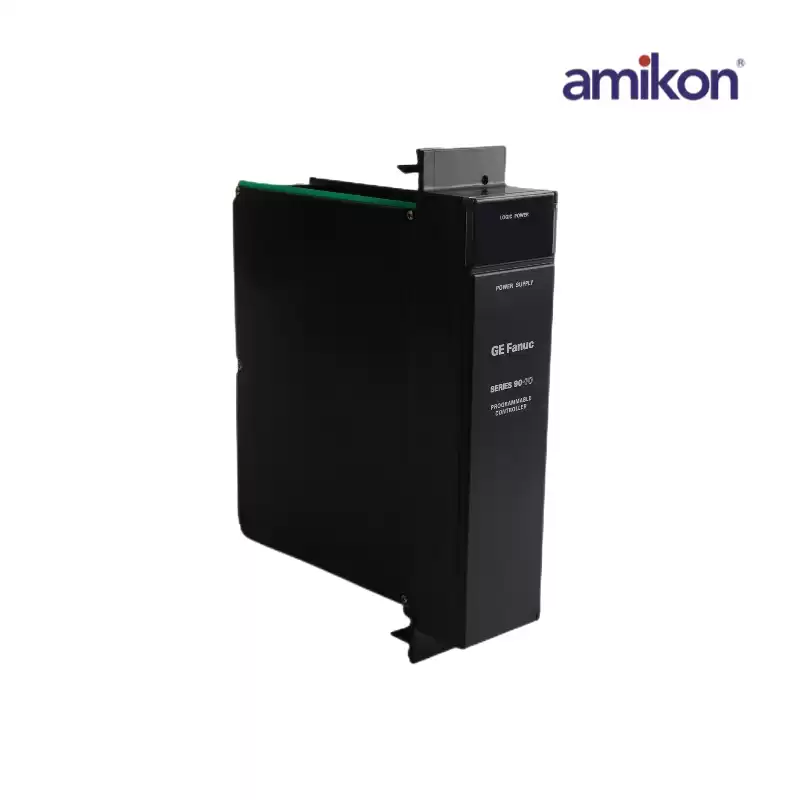

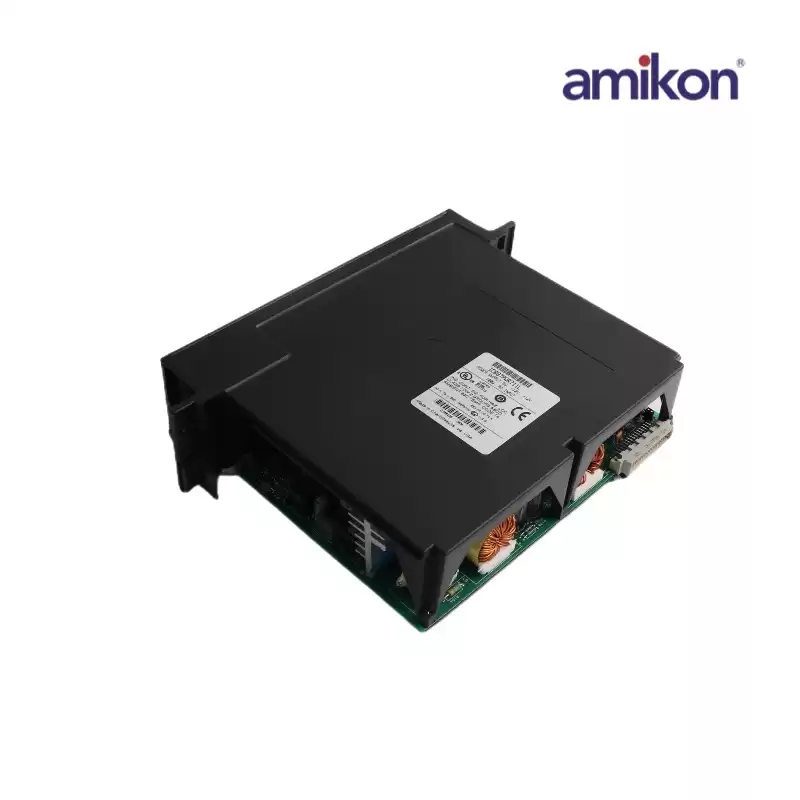

The IC697PWR711 is a GE Fanuc manufactured 100 Watt Power Supply Module for the Series 90-70. Features include operation from 120 VAC, 240 VAC, or 125 VDC, and there are three output voltages (100 watts total) as follows: +5 VDC output up to 20 amps; +12 VDC output up to 2 amps; -12 VDC output up to 1 amp. Other highlights include slide-in rack mount construction, electronic short circuit overcurrent protection, two rack operation from a single power supply, power factor correction for AC operation, and a jumper for overvoltage protection devices.
This power supply module can operate from 120 VAC or 240 VAC nominal inputs. A nominal 125 VDC source is also an option. The specified range of operation is from 90 VAC to 264 VAC and from 100 VDC to 150 VDC. For uninterrupted operation (more than one hour) at low line voltages and high temps, some power derating must be applied.
|
