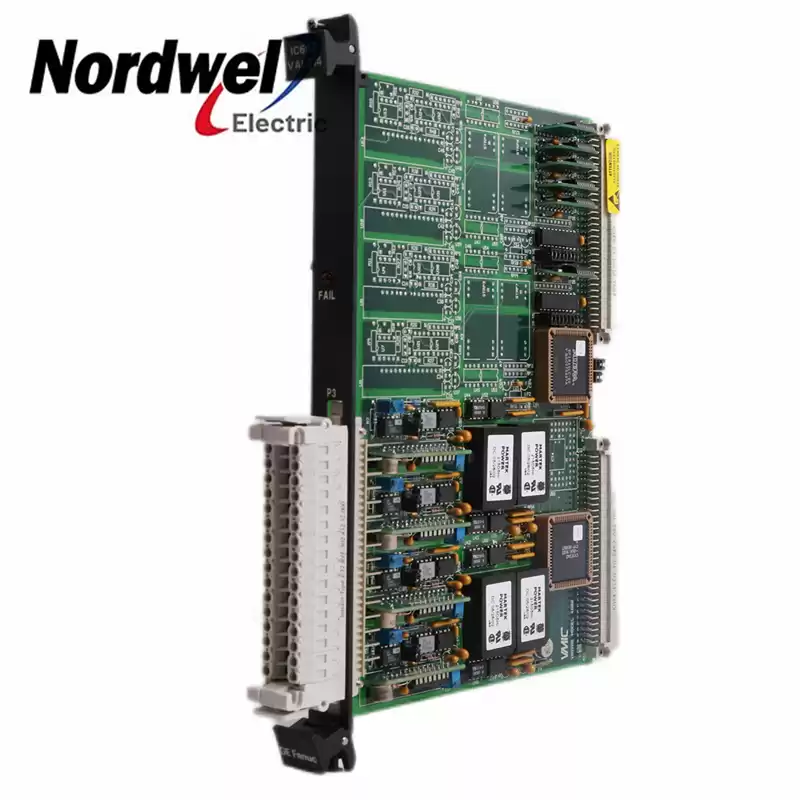

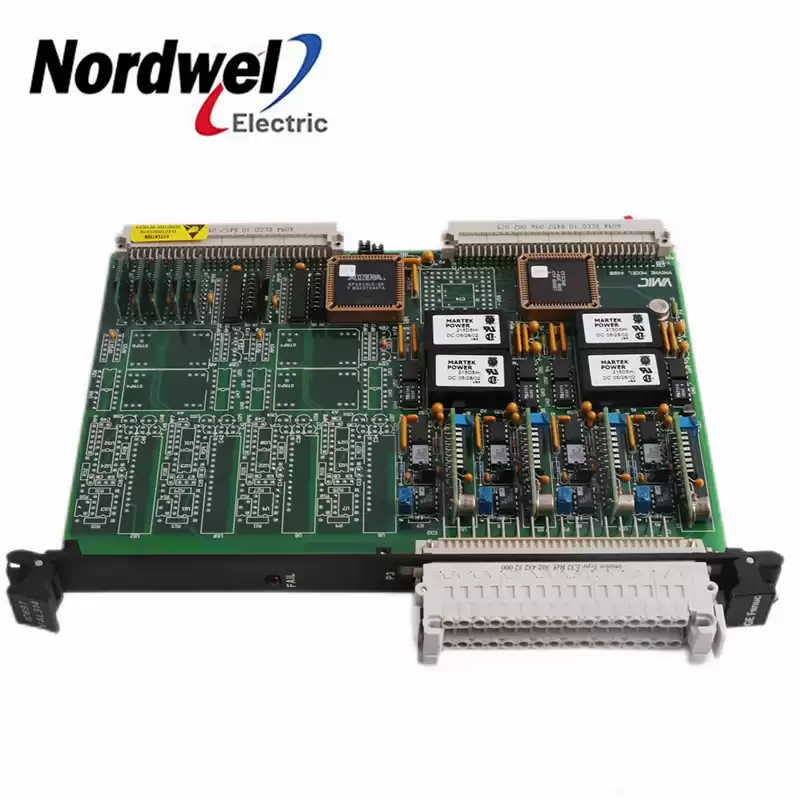

The GE Fanuc Series 90-70 IC697VAL348 Digital-to-Analog Converter Board is an electronic converter that is
designed to take digital inputs and transform them into analog output signals which can be employed in different
applications according to the users’ needs. The signal resulting from this conversion is a perfectly shaped sinusoidal
waveform, with a voltage range from -10 Volts AC to +10 Volts AC, and an output current rating of approximately 5
milliamps. The GE Fanuc IC697VAL348 Digital-to-Analog Converter Board features several programmable update
modes, such as the immediate DAC update mode, the delayed DAC update mode, or the test mode. The digital to
analog conversion can be started in 2 modes: the program mode or the external mode. The address setting is done
through a pair of DIP switches.
The GE Fanuc IC697VAL314 Digital-to-Analog Converter Board has been designed to work at an operating
temperature range between -25 and +70 degrees Celsius (-13 to 158 degrees Fahrenheit). If it is installed in an
industrial environment with lower or higher temperatures, the manufacturer strongly recommends the installation of
a climate control system or a forced ventilation system with an air filter in order to prevent external debris or dust
particles from penetrating the module's protective cover. Overcurrent and short circuit protection devices should also
be added and they must have the right ratings and sizes. The GE Fanuc IC697VAL348 Digital-to-Analog Converter
Board offers a digital-to-analog Integrated Circuit (IC) for each channel. Different circuits may be fed from each of
the DAC output signals because each channel can be multiplexed according to the users’ needs.
