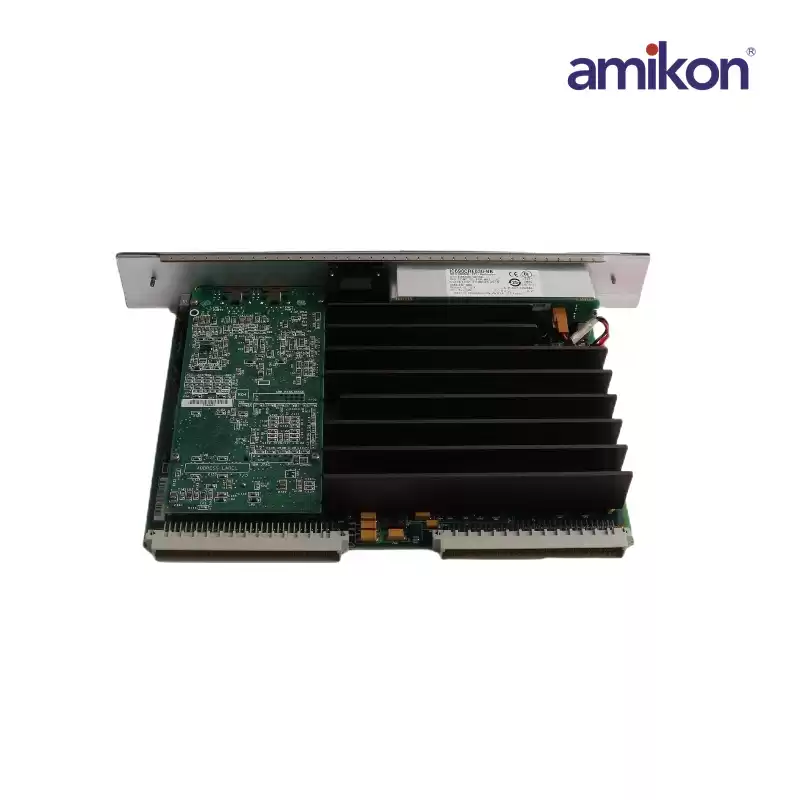

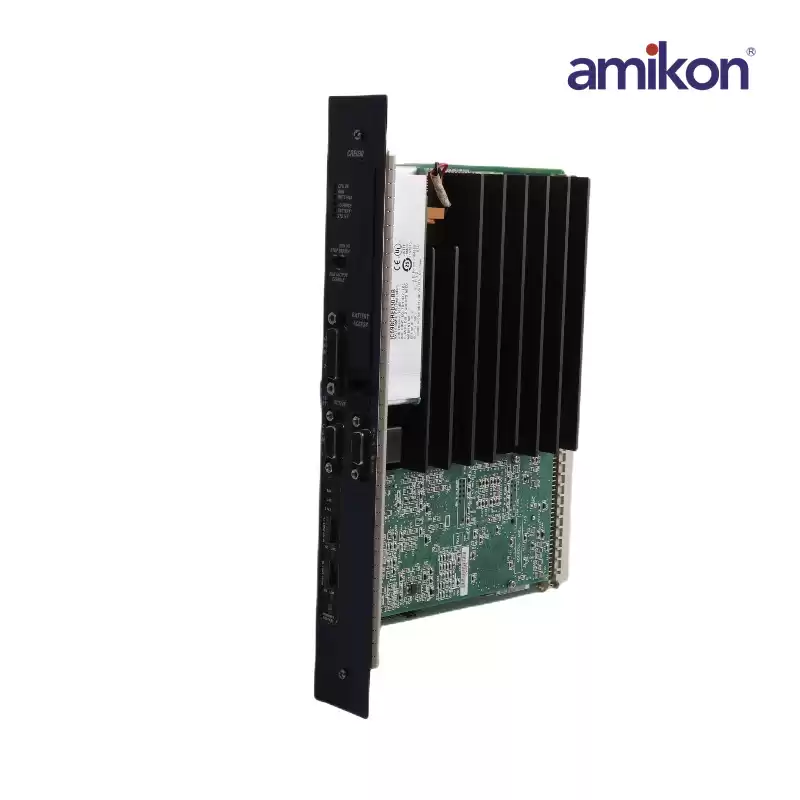

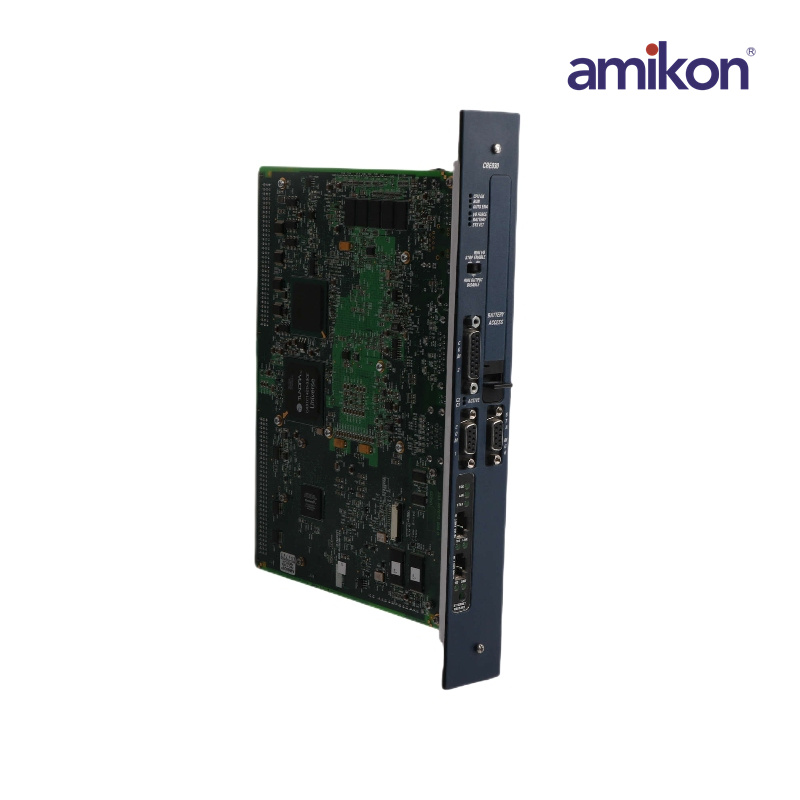

General Electric IC698CRE030-BB RX7i Redundancy CPU

General Electric IC698CRE030-BB  RX7i Redundancy CPU

Dimensions:

4x8x29.2cm

Weight:

0.8kg

Processing Speed:

  1.8 GHz

CPU Memory:

64 Mbytes

The IC698CRE040 PASystems RX7i is a CPU programmed and configured to perform control in real time of machines, processes, and material handling sytems. I/O communication and smart option module communication occurs over a rack-mounted backplane via VME64 Standard format. An embedded Ethernet port (or serial port) allows the CPU to communicate with the programmer and HMI devices.

IC698CRE030-BB

The General Electric IC698CRE030-BB is a Redundancy CPU module for the GE RX7i series of programmable logic controllers (PLCs). This module is designed to enhance system reliability and availability by providing redundancy in critical control applications.

Function: Provides redundancy for the RX7i PLC system, ensuring continuous operation in case of a CPU failure. It allows for seamless switching between primary and backup CPUs without interruption to the control process.

Redundancy: Supports high-availability configurations with automatic failover between primary and secondary CPUs. This ensures that if one CPU fails, the backup CPU immediately takes over with minimal impact on the system.

Compatibility: Designed to be used with the RX7i series PLC hardware and software. Ensure compatibility with your existing system components and software versions.

Communication: Includes built-in communication features to synchronize data between redundant CPUs and manage failover processes.
