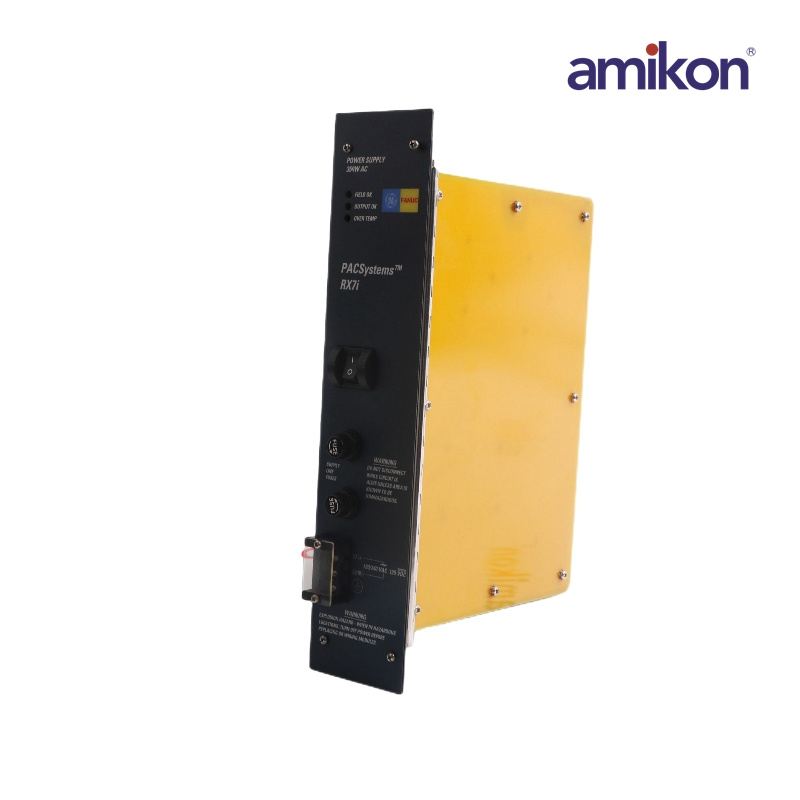

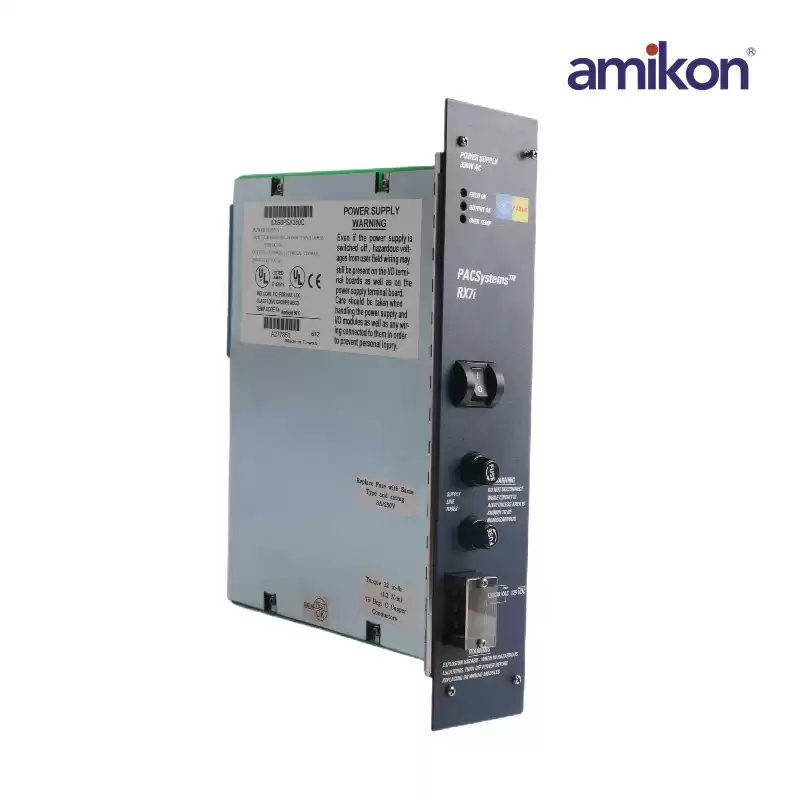

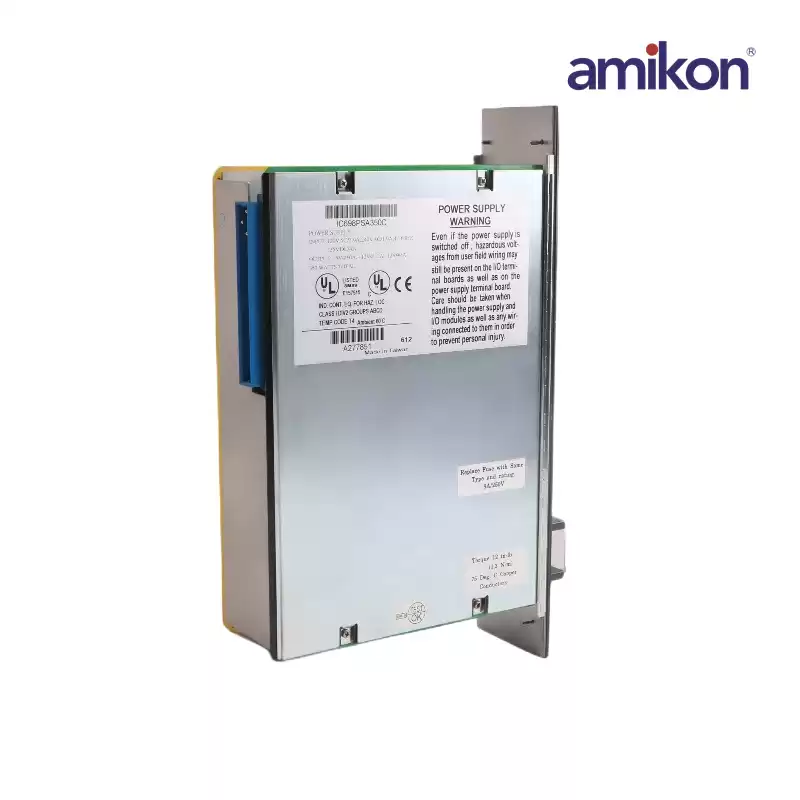

General Electric IC698PSA350 Power Supply Module
|
|
Dimensions:
|
6.3x19x29,2cm
|
Weight:
|
2kg
|
|
Input Current:
|
125mA
|
Voltage Range:
|
+10VDC
|
|
The IC698PSA350 power supply module is part of the Rx7i series and it is manufactured by GE Fanuc. This module is able to send logic level signals to the module by using the backplane. It has an output power rating of 100 Watts.
|
|
IC698PSA350
|
The General Electric IC698PSA350 is a power supply module designed for use with the GE RX7i series of programmable logic controllers (PLCs). This module provides the necessary electrical power to the RX7i PLC system, including the CPU and I/O modules.
Function: Supplies power to the RX7i PLC system. It converts the input power into the necessary DC voltages required for the operation of the PLC and its associated modules.
Input Voltage Range: Typically accepts a wide range of AC or DC input voltages. For the IC698PSA350, it usually supports 120/240V AC input, but confirm the exact specifications in the datasheet.
Output Voltage: Provides regulated DC output voltages to power the PLC system. Commonly, the module outputs +5V DC and +24V DC, which are used by the PLC and I/O modules.
Mounting: Designed to be installed in a rack or panel where it fits into the RX7i PLC chassis or enclosure.
|
