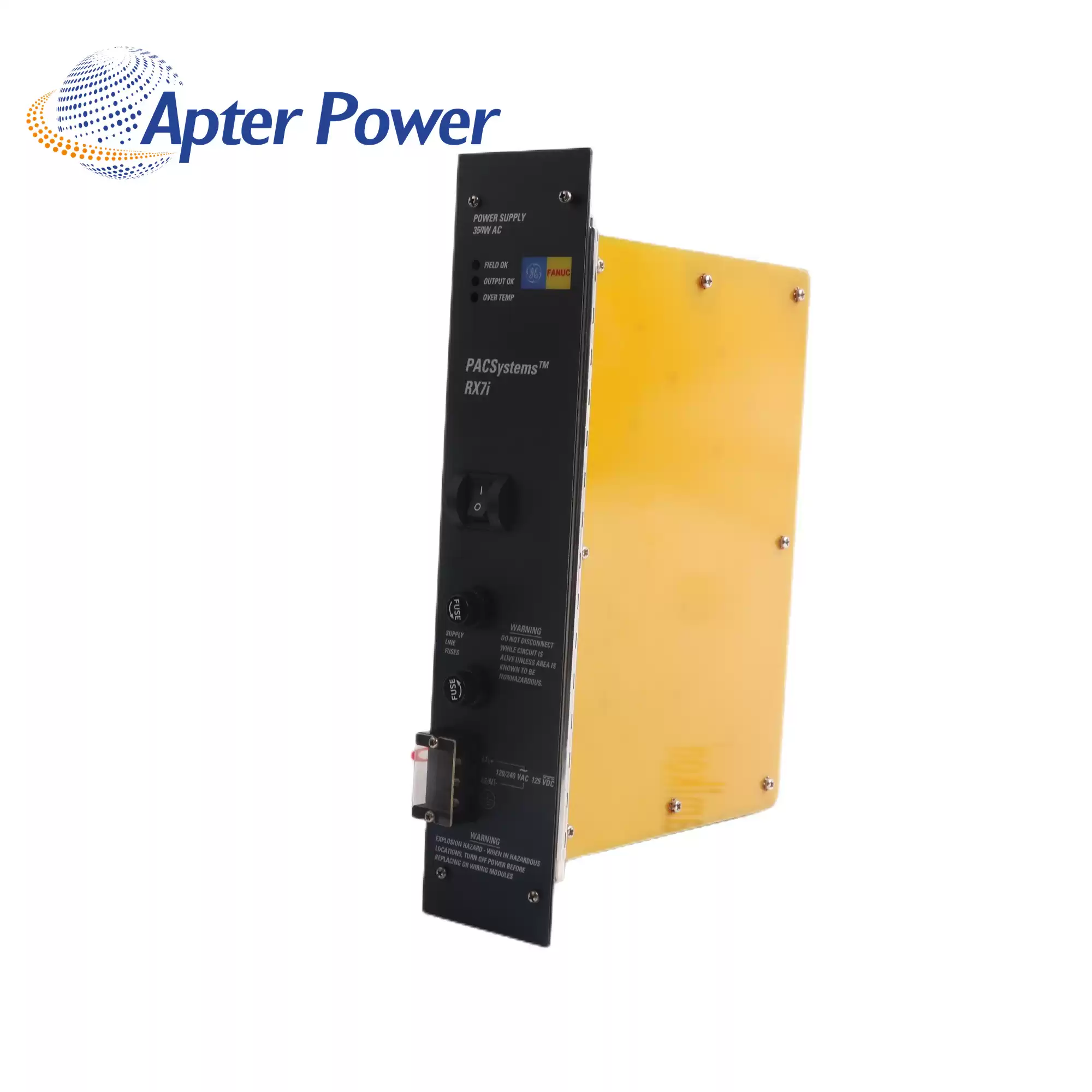

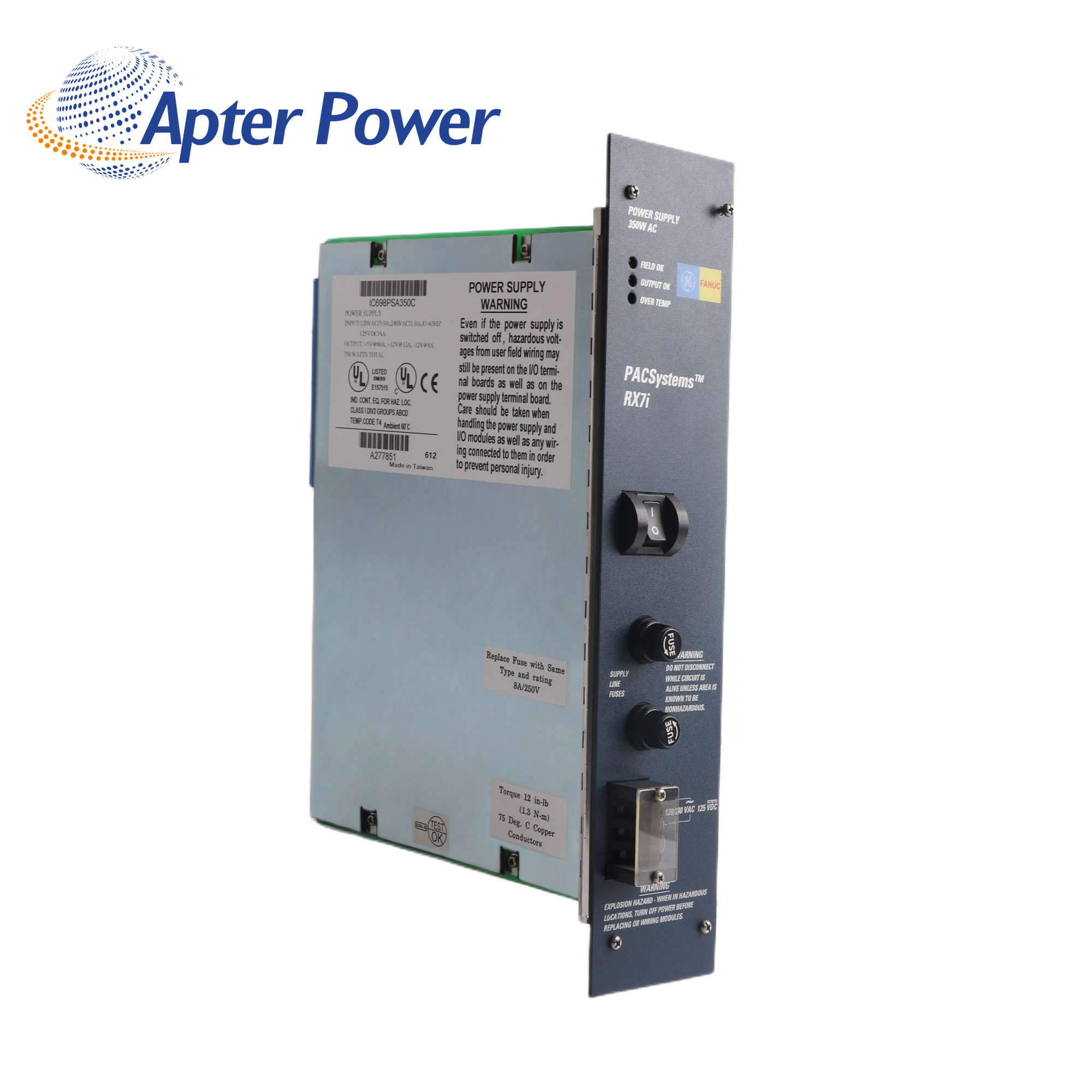

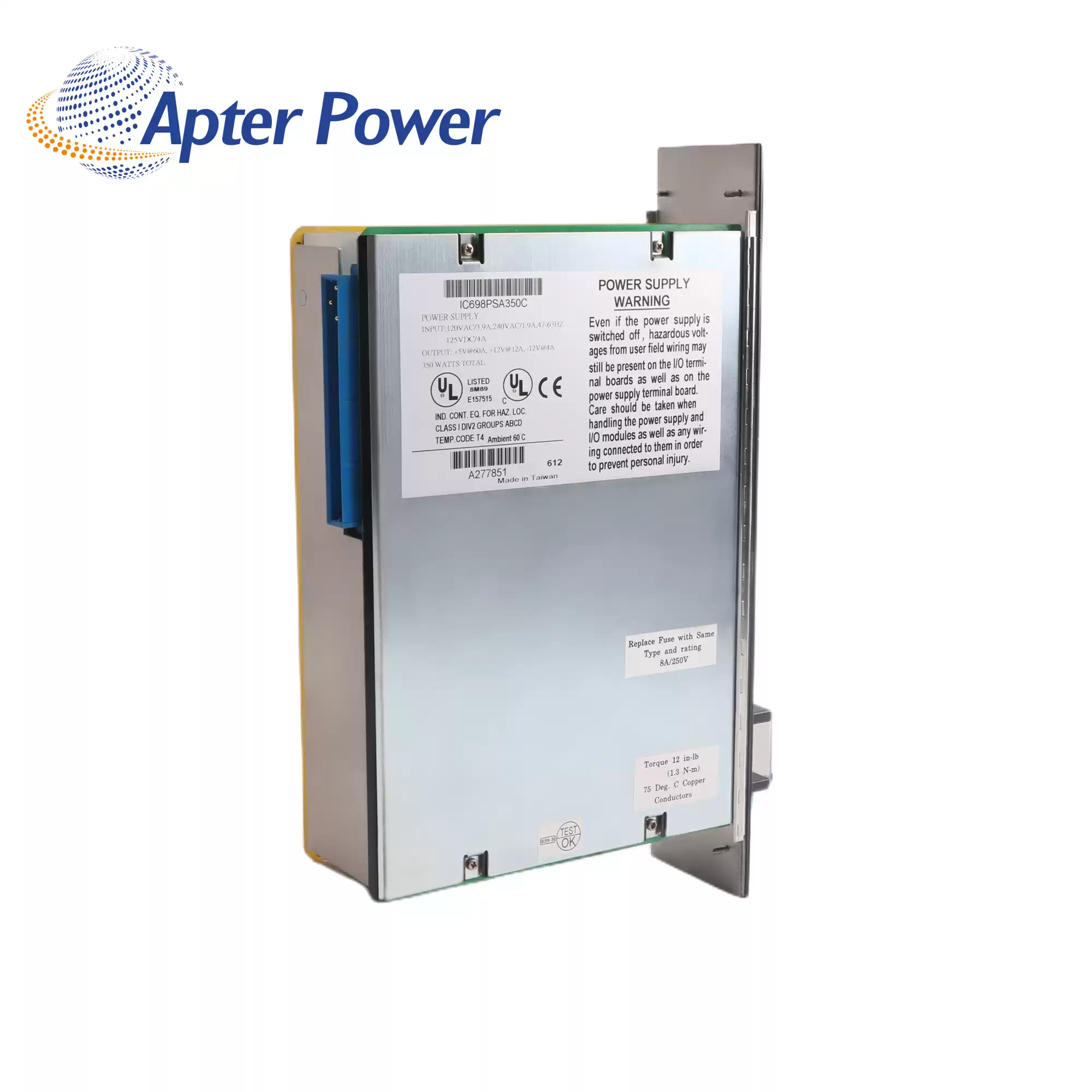

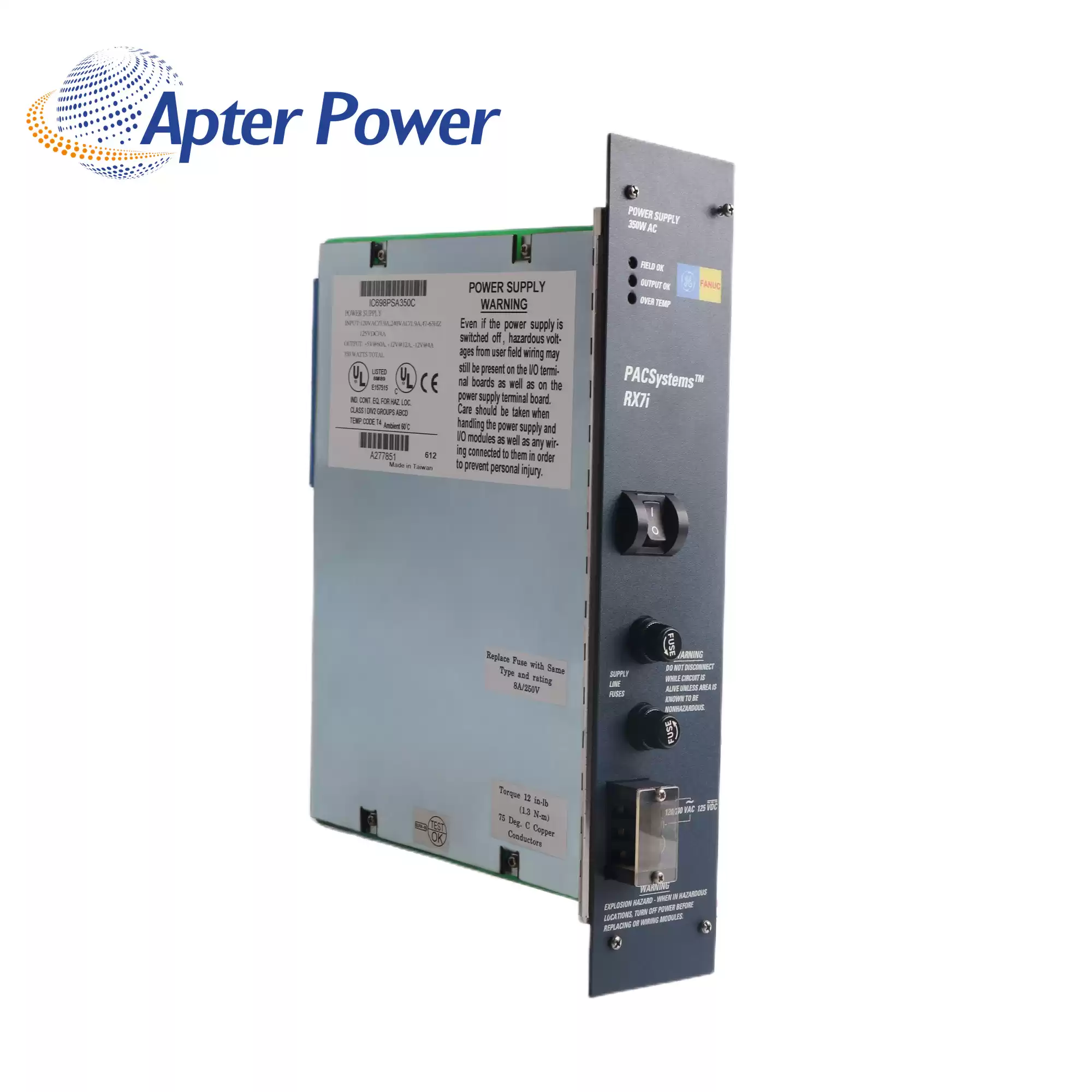

General Electric IC698PSA350 RX7i Power Supply Module

Availability: More than 14 in stock


  • Lead Timein stock
  • Conditionnew and original
  • Dimension6.5cmx19cmx29.2cm
  • Weight2KG
  • Brand/ManufatureGeneral Electric
  • Certificatecoo/test report/warranty letter

Technical Specifications for IC697PWR710

Manufacturer

General Electric


Condition

100% New Original

Brand

General Electric

Power Factor

> .95

Part Number

IC697PWR710

Input Power

90 watts

Product Name

Power Supply Module

Voltage Range

+10VDC

Manufacture Year

2022

Input Current

125mA

Product Package

Original Package

Shipping term

TNT DHL FEDEX EMS UPS


About IC697PWR710

IC698PSA350 is a PACSystems Power Supply Module produced by GE Fanuc for the RX7i series. This module delivers +5 VDC, +12 VDC, and -12 VDC power. In addition, it sends logic level sequencing signals to modules on the backplane. The module plugs into slot 0 in the main rack.


The IC698PSA350 module’s power supply output may lose one AC input line cycle while maintaining output power. Overcurrent and overvoltage fault protection is provided in addition to electronic short circuit protection. The module permits 100 watts total output power at ambient temperatures of 0 to 60ºC without forced air cooling.

Output voltages are as follows: +5 VDC output to 60 amps, +12 VDC output to 12 amps, and -12 VDC output to 4 amps.



More notable features of the IC698PSA350 module include operation from 85 to 264 VAC or 100 to 150 VDC. The module is equipped with AC operation power factor correction and easy slide-in rack mount construction.

The two-position On/Off logic level switch can be found on the front faceplate. It has the capability to enable or disable output channels and will not disturb the AC line input. Important warning: Lethal voltages are present in the module when input power is present.


Warranty :       We offer one year warranty for all original new product.


Delivery   :       We will choose the DHL/FEDEX/TNT/UPS


Payment   :      100% advance payment bank wire transfer


Returns    :      If the product has quality problems within one year from the date of receiving the product,  you can send it back to replace.
