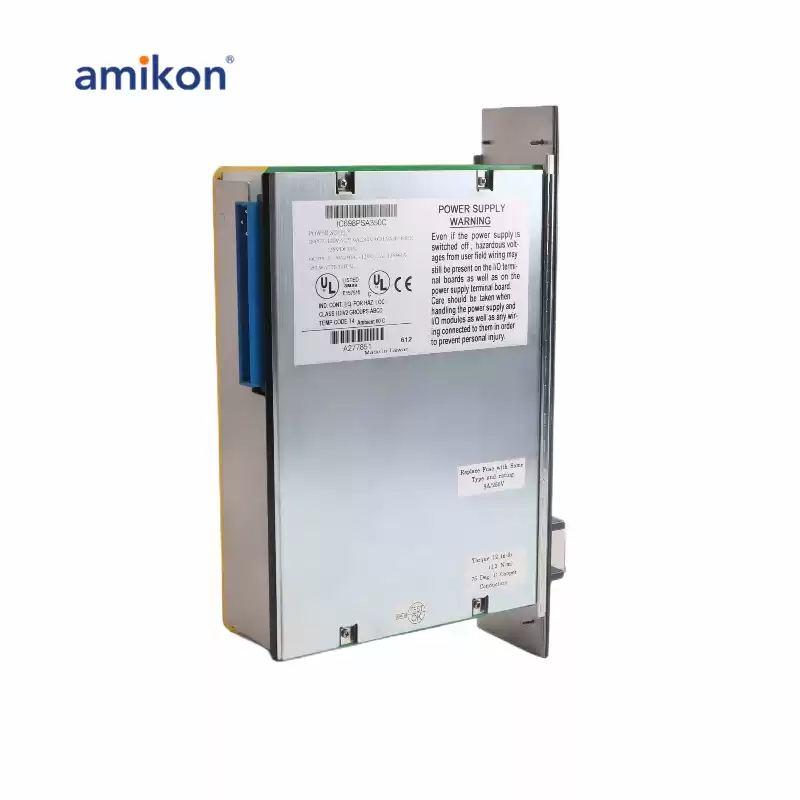

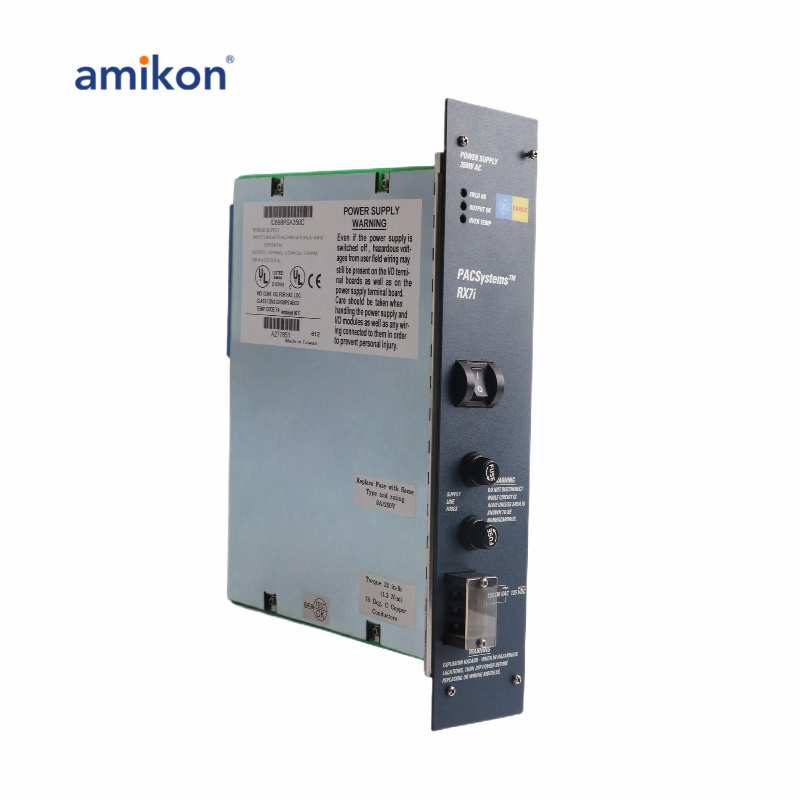

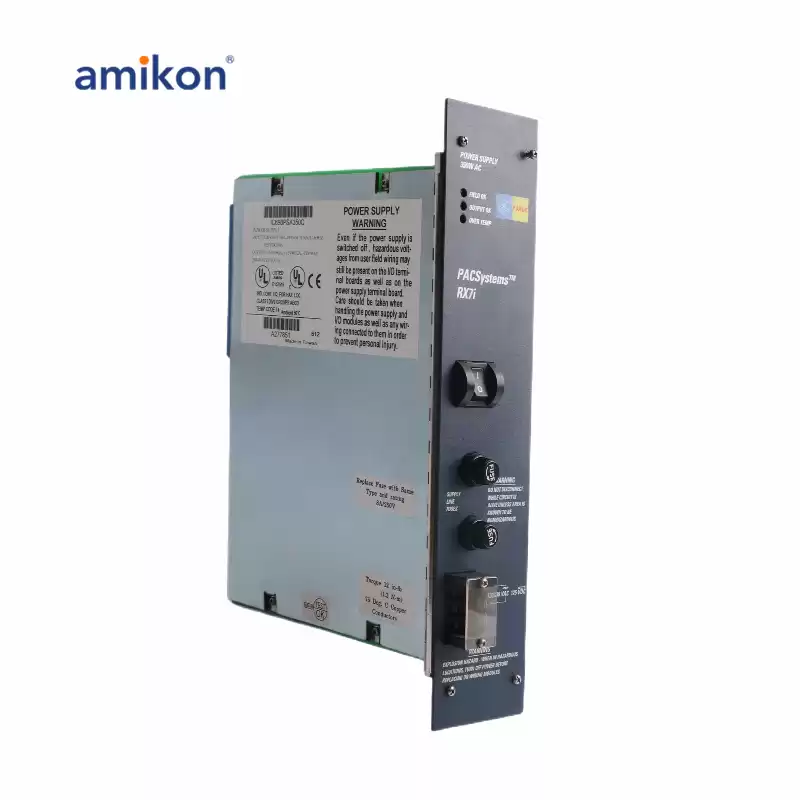

IC698PSA350 is a PACSystems Power Supply Module produced by GE Fanuc for the RX7i series. This module delivers +5 VDC, +12 VDC, and -12 VDC power. In addition, it sends logic level sequencing signals to modules on the backplane. The module plugs into slot 0 in the main rack.
|
|
|
IC698PSA350 Data sheet
|
module’s power supply output may lose one AC input line cycle while maintaining output power. Overcurrent and overvoltage fault protection is provided in addition to electronic short circuit protection. The module permits 100 watts total output power at ambient temperatures of 0 to 60ºC without forced air cooling.
|
|

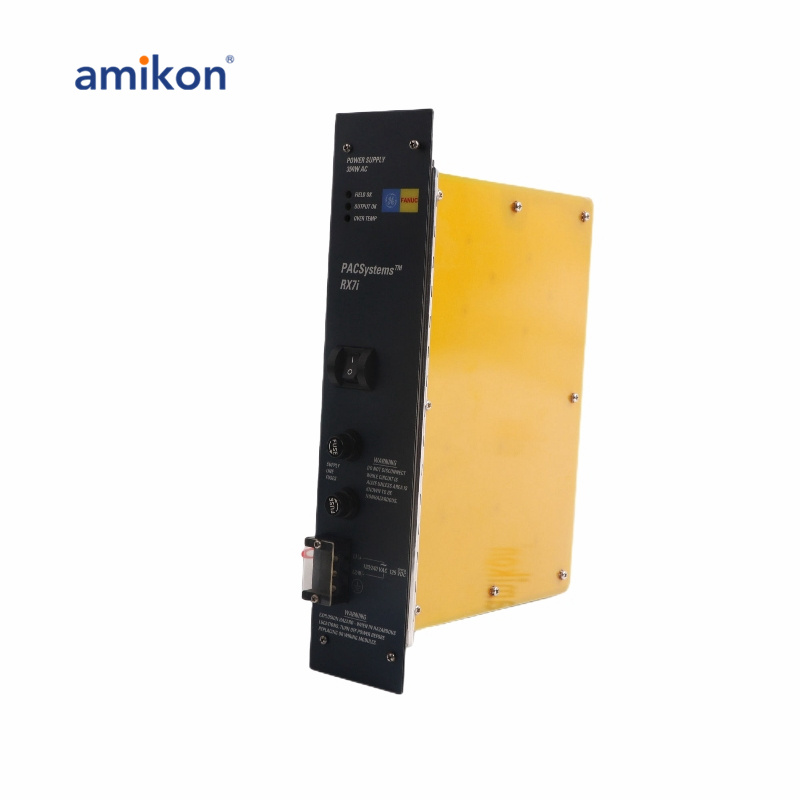

Output voltages are as follows: +5 VDC output to 60 amps, +12 VDC output to 12 amps, and -12 VDC output to 4 amps.The two-position On/Off logic level switch can be found on the front faceplate.
|
|
More notable features of the IC698PSA350 module include operation from 85 to 264 VAC or 100 to 150 VDC. The module is equipped with AC operation power factor correction and easy slide-in rack mount construction.
|
|
