General Electric IS200BPVCG1BR1 BACKPLANE
|
|
Dimensions:
|
43.1x35.2x5cm
|
Weight:
|
1.9kg
|
|
Input Current:
|
125mA
|
Voltage :
|
12V
|
|
IS200BPVCG1BR1
|

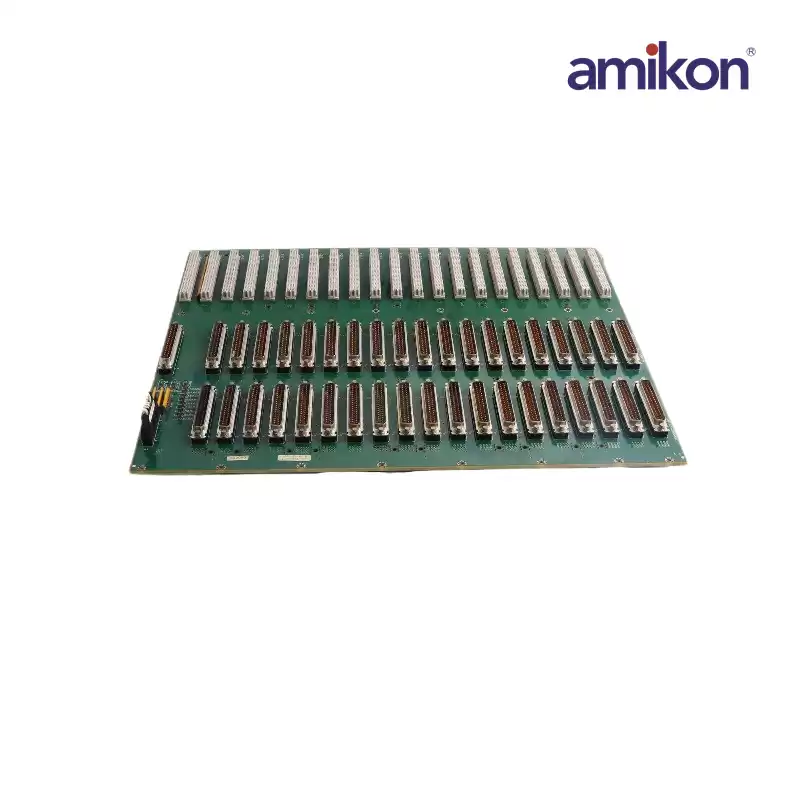

The IS200BPVCG1BR1 is a backplane board that has been designed to fit into a rack system that accepts and supports multiple boards. The rear half of this board is populated with twenty-one female backplane connectors. When placed in the rack system, this part of the board will be surrounded by tall walls that will support and lock connecting boards into place. The other part of the board, which holds Input/Output connectors, is designed to be left exposed outside the rack system.

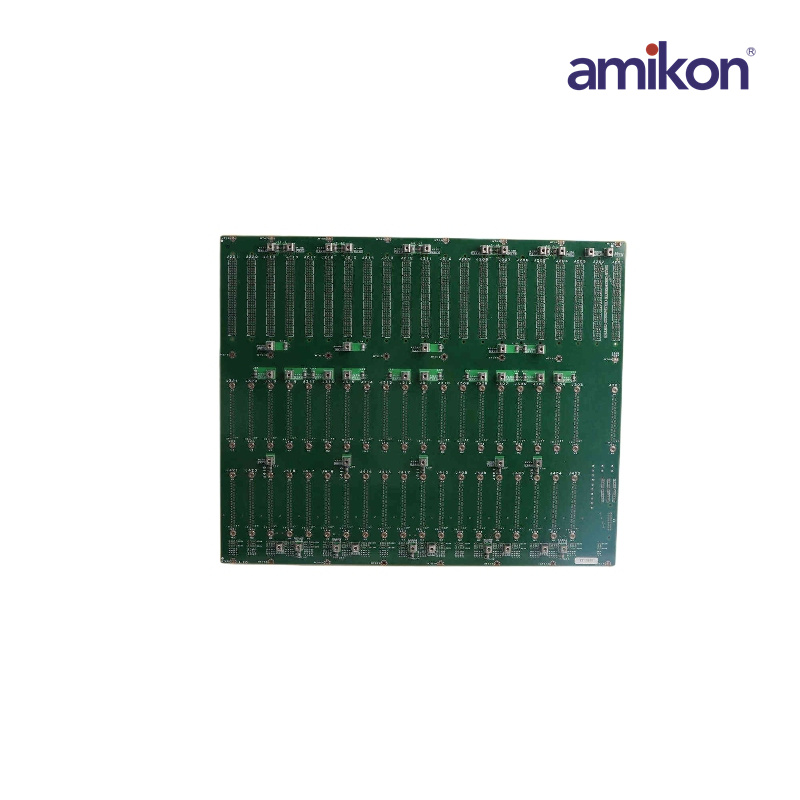

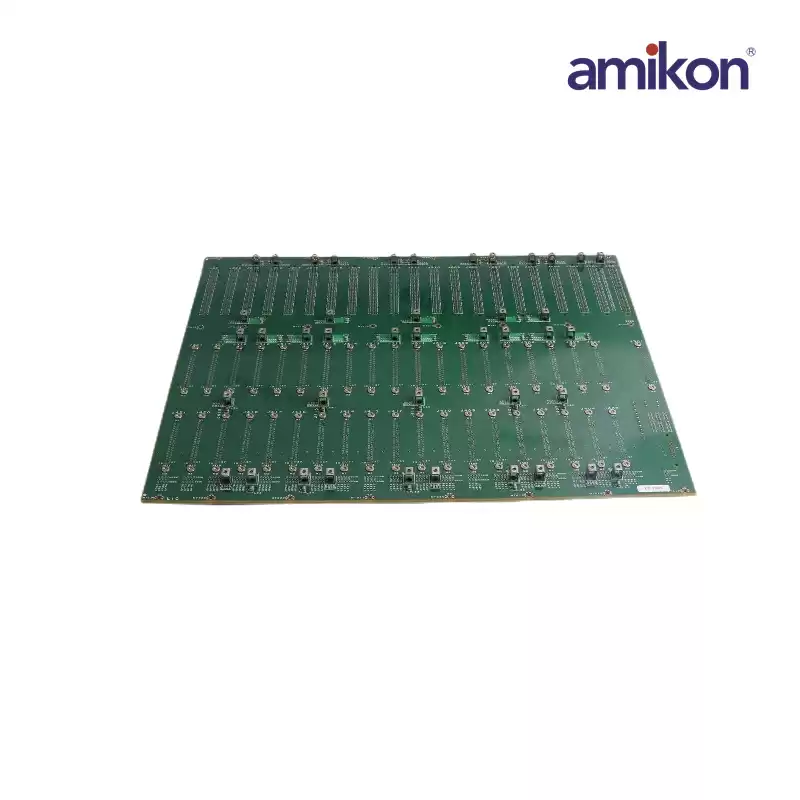

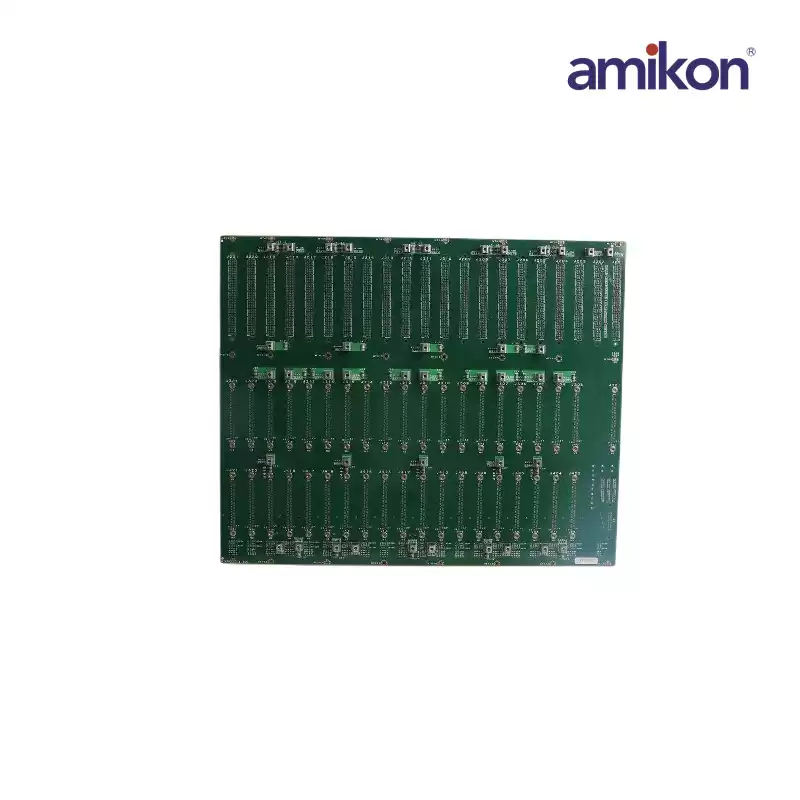

This allows the operator to easily connect ribbon connectors and their cabling to the board. There are thirty-nine I/O connectors, which allow data transfer from and to the boards attached to the backplanes. The IS200BPVCG1BR1 also includes fourteen stab-on connectors and six resistor network arrays. There are an additional thirty components on the bottom side of the board. These are labeled L1 through L30. The board is marked with the manufacturer logo and with the board number.
|
