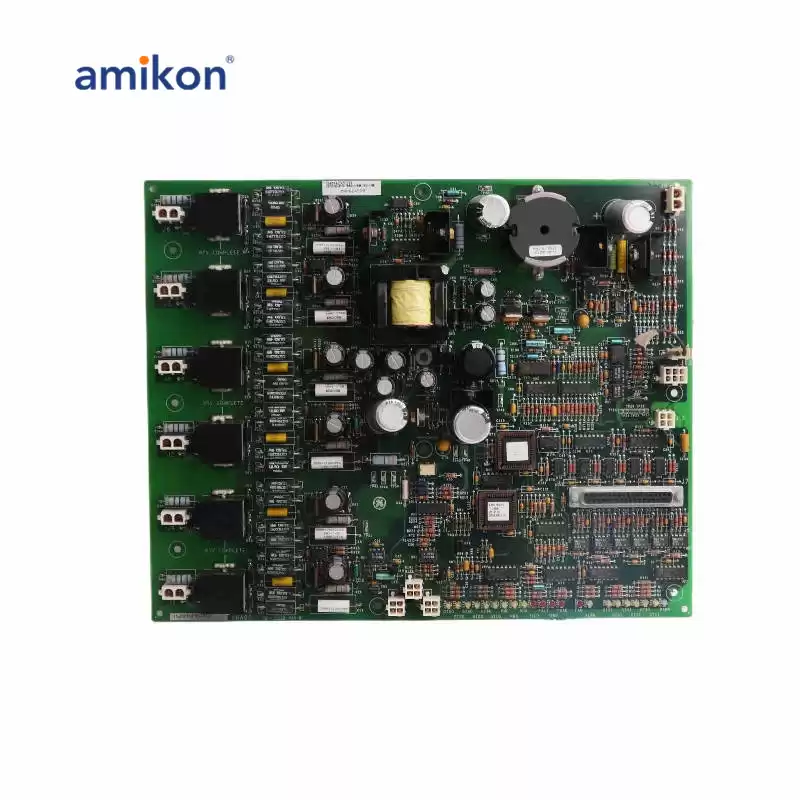

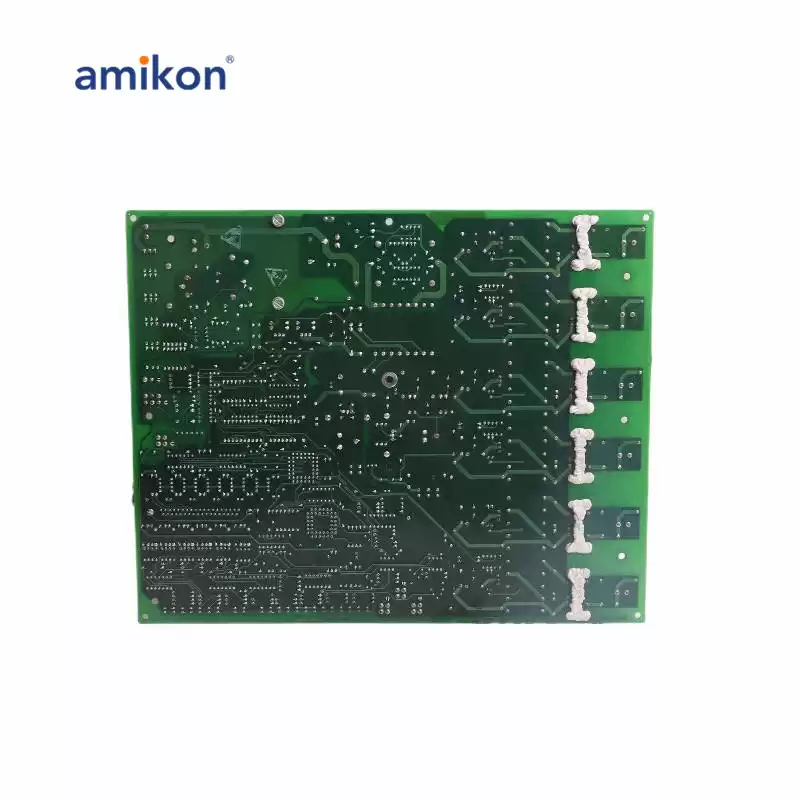

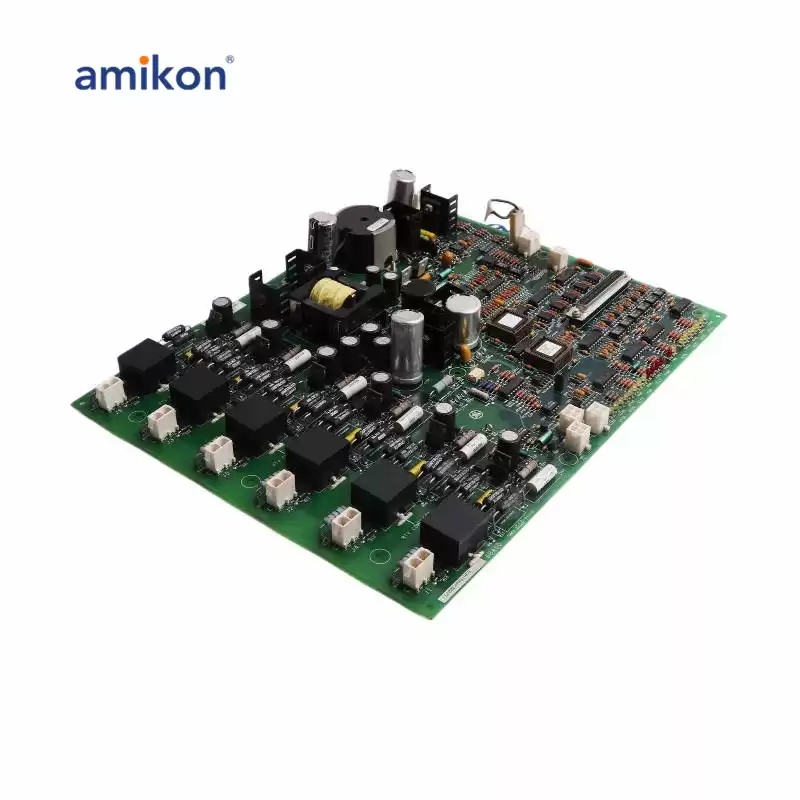

Exciter high voltage pulse amplifier board IS200EHPAG1A is part of the EX2100 series. The pulse amplifier board's purpose is to directly control silicon-controlled rectifiers (SCRs). On the actual board, there are multiple connectors, a total of fourteen plug connectors, and a set of three female board connectors.
|
|
|
IS200EHPAG1AFD IS200EHPAG1A Data sheet
|
These plug-connectors have different plug options and quantities. Eight of the connectors are two-plug, four are four-plug, and two are six-plug connectors.
|
|
The connectors are located in the upper right corner of the board near four standoffs which can be used for the attachment of an optional daughterboard.
|
|
Located on the front edge of the IS200EHPAG1A there are LED warning lights that have different colors, there is one red LED, five green LEDs, and sixteen amber-colored LEDs.
|
|
