The IS200EISBH1A is a GE printed circuit board that fits into the Mark VI series. Designed for gas and steam turbine management, the Mark VI is part of the Speedtronic line from GE. The Mark VI is built around a 13- or 21- slot VME card rack Control Module. This control module is used for control, monitoring, and protection functions.
|
|
|
IS200EISBH1A IS200EISBH1AAA Data sheet
|

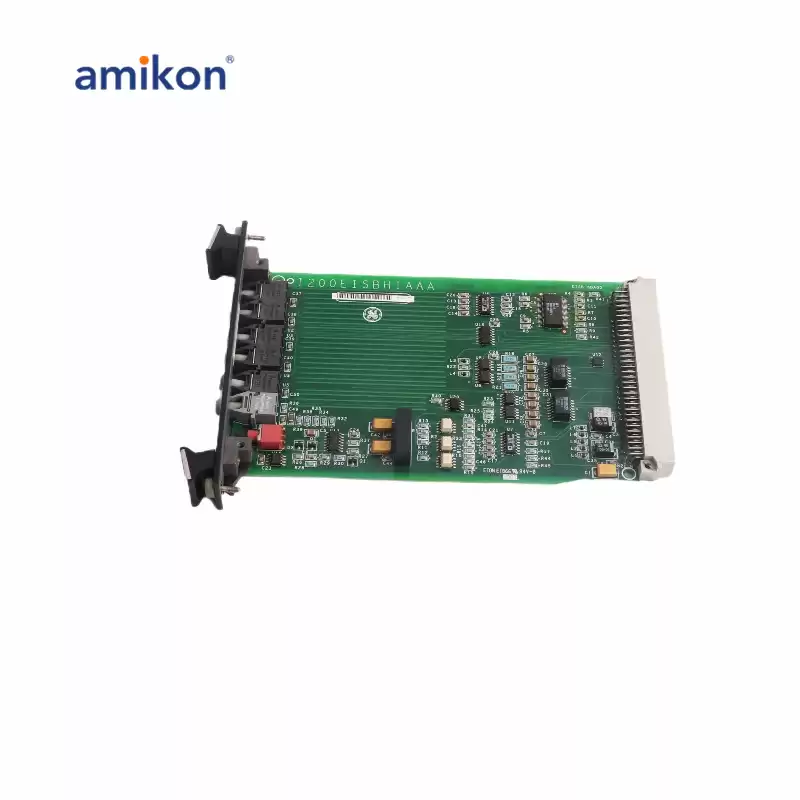

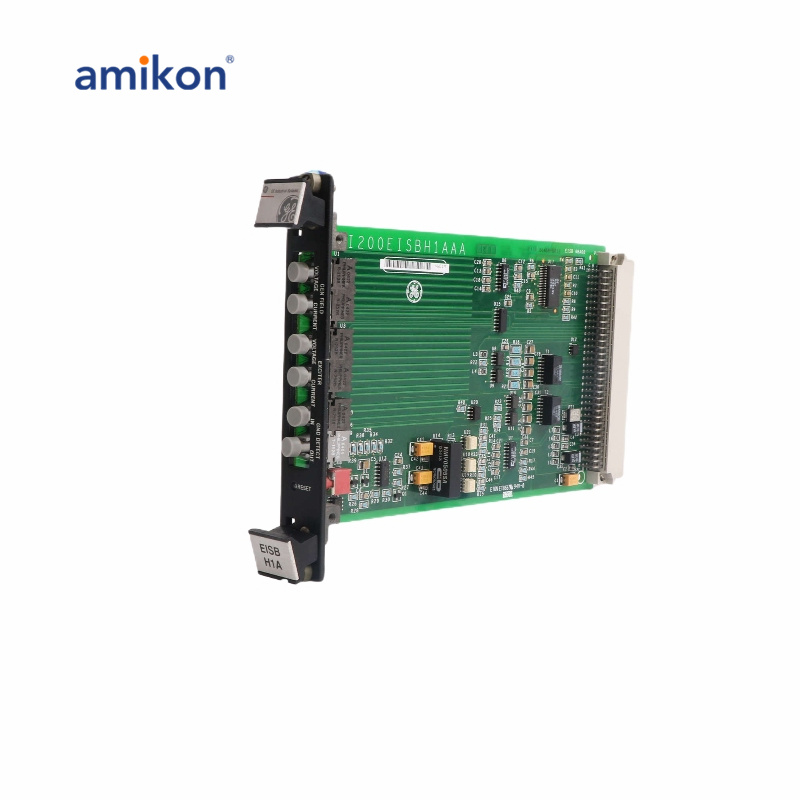

IS200EISBH1A is built as an Exciter ISBus card. This is a communication interface board for the M1, M2/C controllers. It provides communication between three DSPX boards that are placed (one each) in M1, M2, and C. This is a single-slot, 3U high module. It receives and transmits feedback signals through its backplane connectors.
|
|
The connectors are located in the upper right corner of the board near four standoffs which can be used for the attachment of an optional daughterboard.
|
|

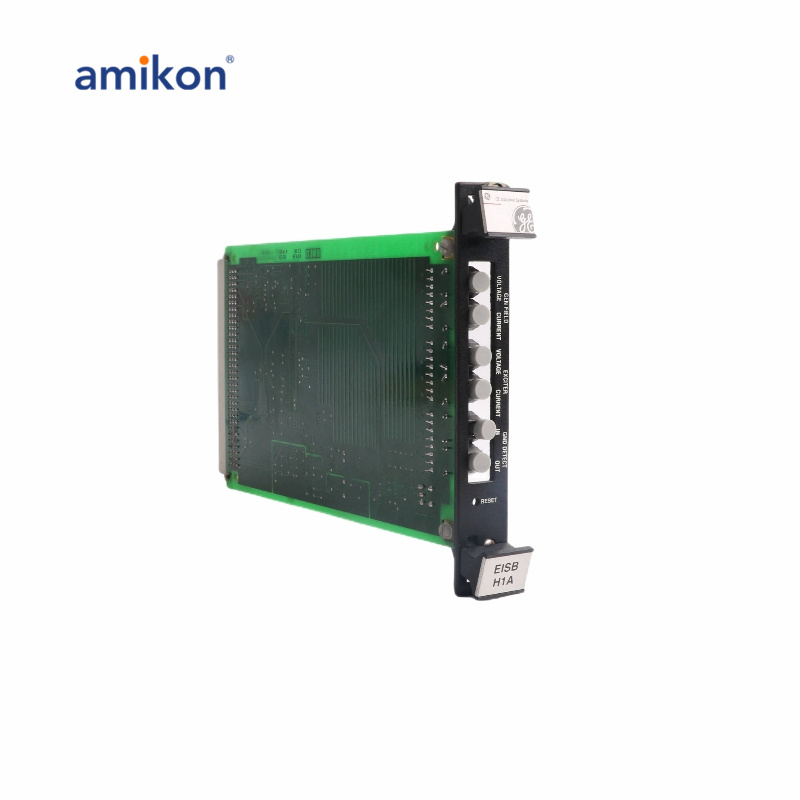

The IS200EISBH1A is built with a faceplate that carries several components. This faceplate includes the manufacturer’s logo, the board id number, and an opening to reach a reset switch located on the surface of the circuit board.
|
|
