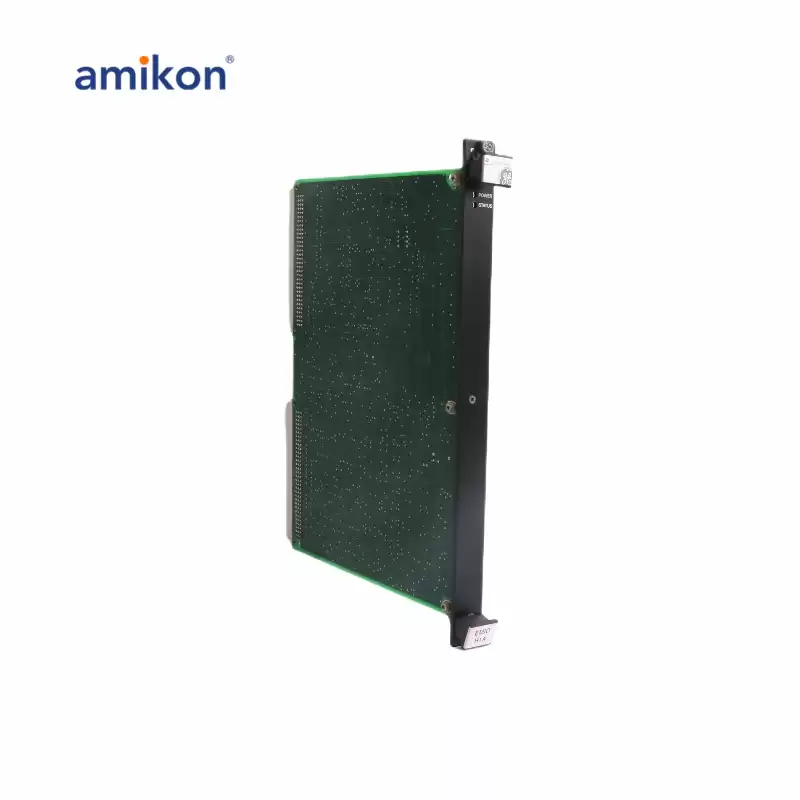

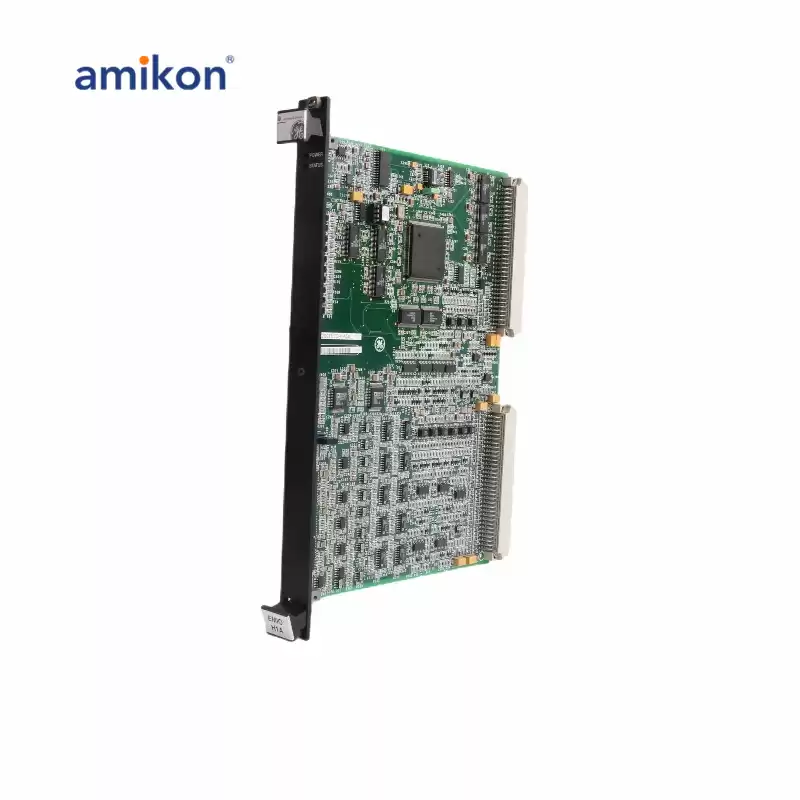

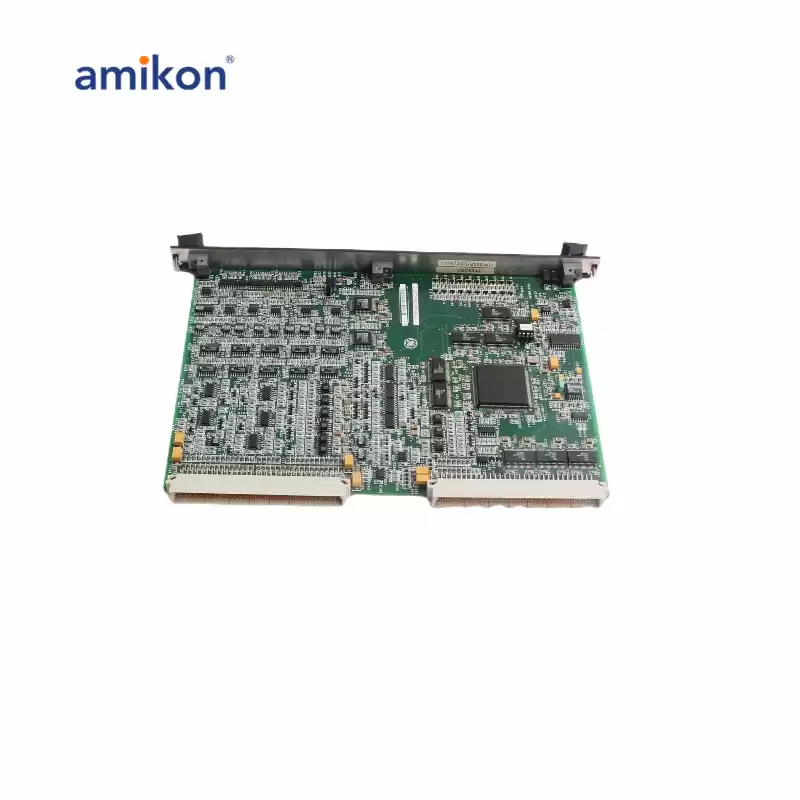

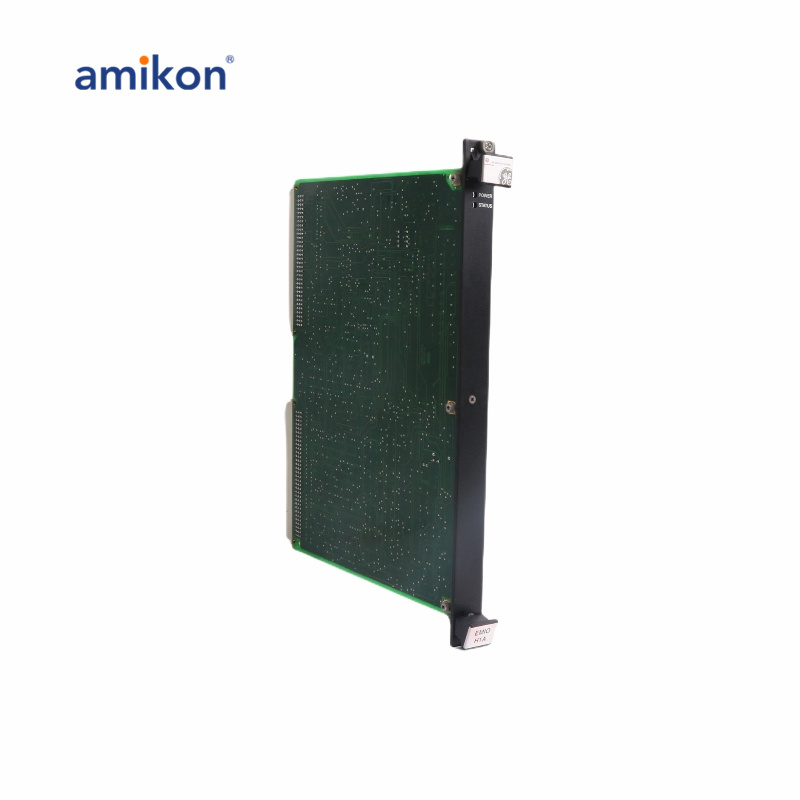

The IS200EMIOH1A board controls the 53A and 53A field flashing relays, this function is done so through the drivers on the EMIO board. Another primary function of the IS200EMIOH1A is to send gate pulse signals from the backplane to the ESEL board, after the signals have been received by the ESEL board the signals will then be sent to the EGPA board which is located in the power conversion cabinet.
|
|
|
IS200EMIOH1A IS200EMIOH1ACA Data sheet
|
The RX3i system and its components are considered open equipment [having live electrical parts that may be accessible to users] and must be installed in a protective enclosure or incorporated into other assemblies manufactured to provide safety.
|
|
As a minimum, the enclosure or assemblies must provide protection equivalent to a NEMA/UL Type 1 enclosure or an IP20 rating (IEC60529). The enclosure must be able to adequately dissipate the heat generated by all of the components mounted inside so that no components overheat.
|
|
A minimum space of at least 102mm (4 inches) as shown below is required on all sides of the RX3i backplane for cooling.
|
|
