The Power Conversion Module (PCM) consists of an integrated IGBT inverter module that contains six IGBTs connected in a 3-phase inverter configuration. Two of the six IGBTs are used to create the PWM dc output for field excitation.
|
|
|

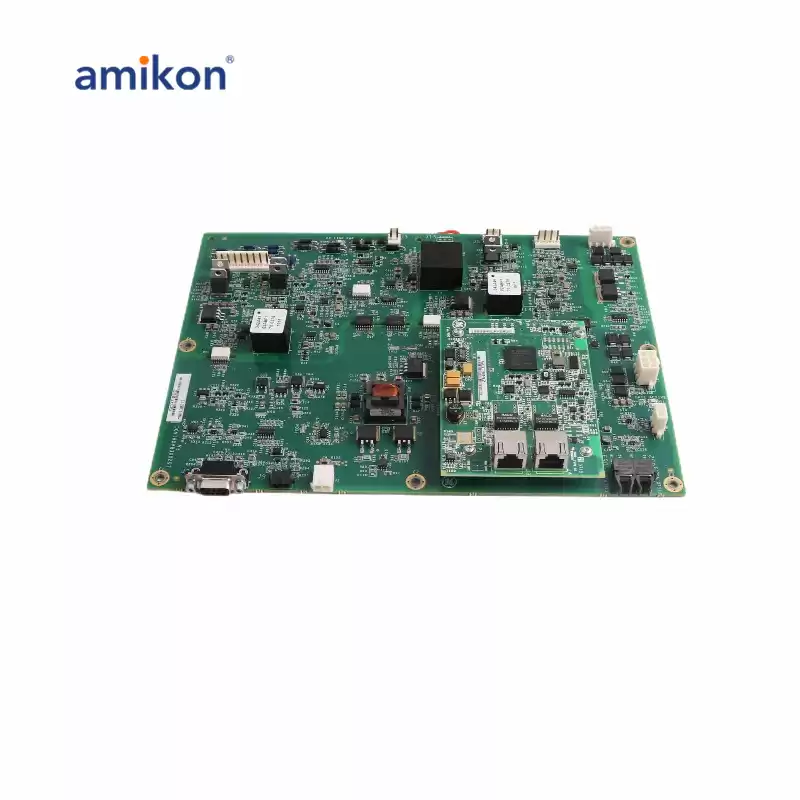

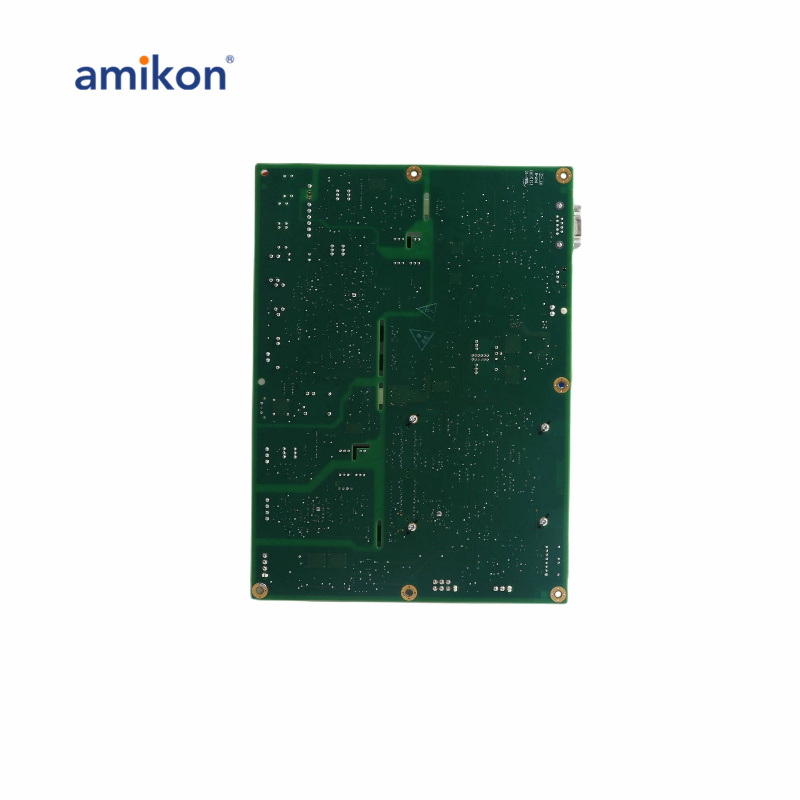

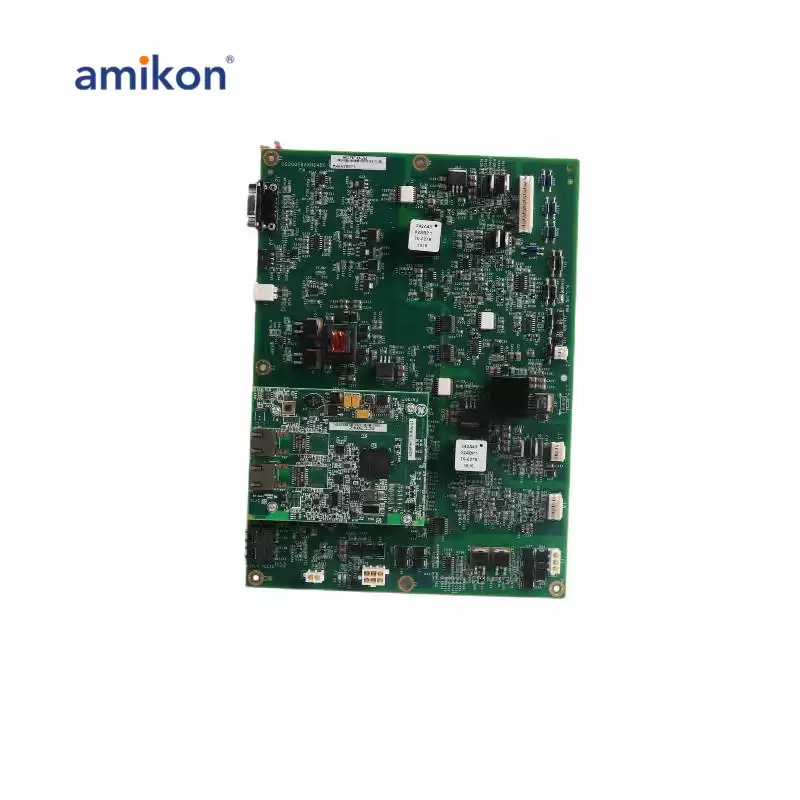

IS200ERAXH1ADC Data sheet
|
A third IGBT is used to discharge the dc link capacitors into an external DD resistor to prevent overvoltage.
|
|
Input power is either rectified ac, dc from a station battery, or both. In the dual redundant application, there is a primary control and PCM (M1) and a backup control and PCM (M2), which are identical.
|
|
A transfer module evaluates the health of the primary and backup controls and selects which control is active to provide maximum reliability and availability
|
|
