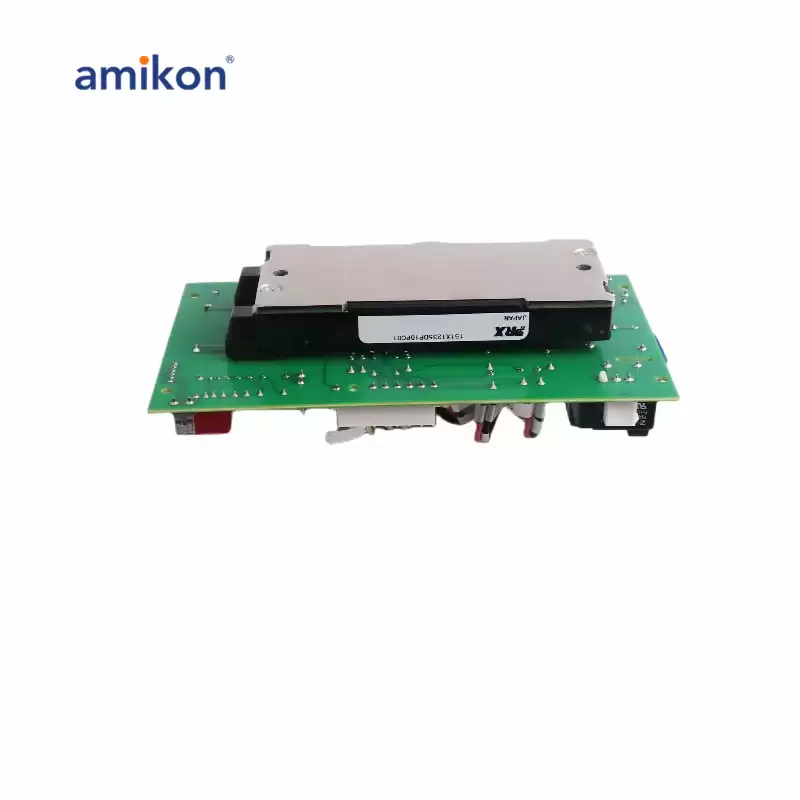

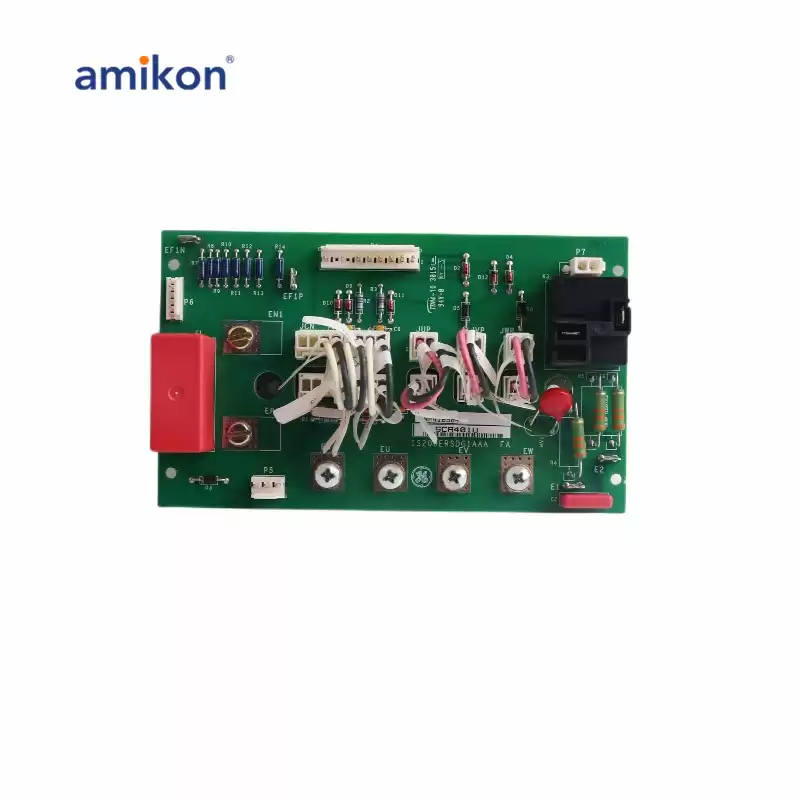

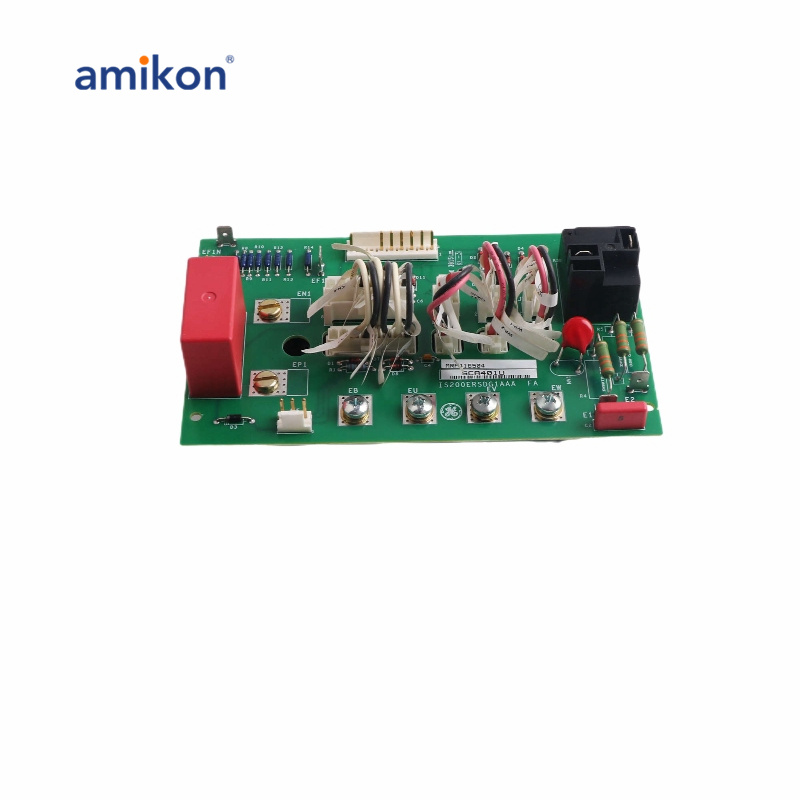

General Electric IS200ERSDG1AAA IS200ERSDG1A I/O Circuit Board

IS200ERSDG1A has a few components on the board, one of which is the two four-position terminal strips (TB1 and TB2). The components within the terminal strips are Malfunction 3, Diode Monitor 2, Alarm I 13V 3, Alarm II 24V 2, TB1 Common 4, Common 2, TB2, and Chassis 1.

IS200ERSDG1AAA IS200ERSDG1A Description:

Not only are there the terminal strips but there are four unlabeled conduction sensors, a single capacitor, and three small components which are marked as L1, L2, and L3.

model is an Exciter Regulator Third Party Ground Detector Board. One of the main features of this board is the ability to create an interface to third-party ground detectors through the conversion of the nine-pin connector from the EROC board to the terminal landing screws.

The IS200ERGTH1A can be mounted in two different ways, it can be wall mounted or DIN-rail mounted.
