Dimensions: 23x19.1x3cm
|
Weight:0.46kg
|
Product Package: Original Package
|
|
Condition: 100% New Original
|
Product Origin: USA
|
|
Full Description: New Factory Package Cleaned and Tested. With 1 Year Warranty.
|
|
IS200EXAMG1AAB
|

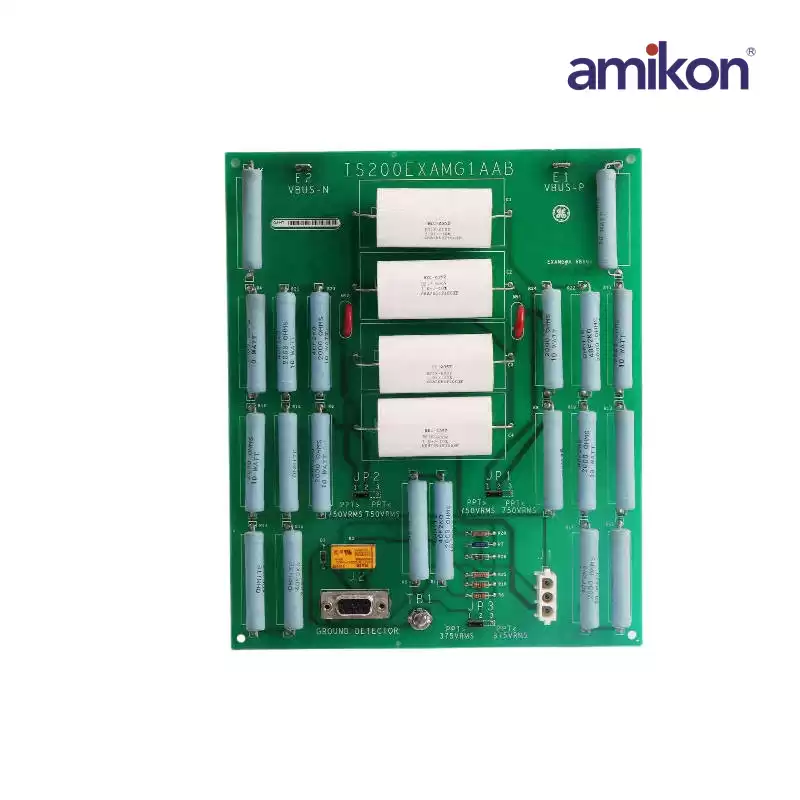

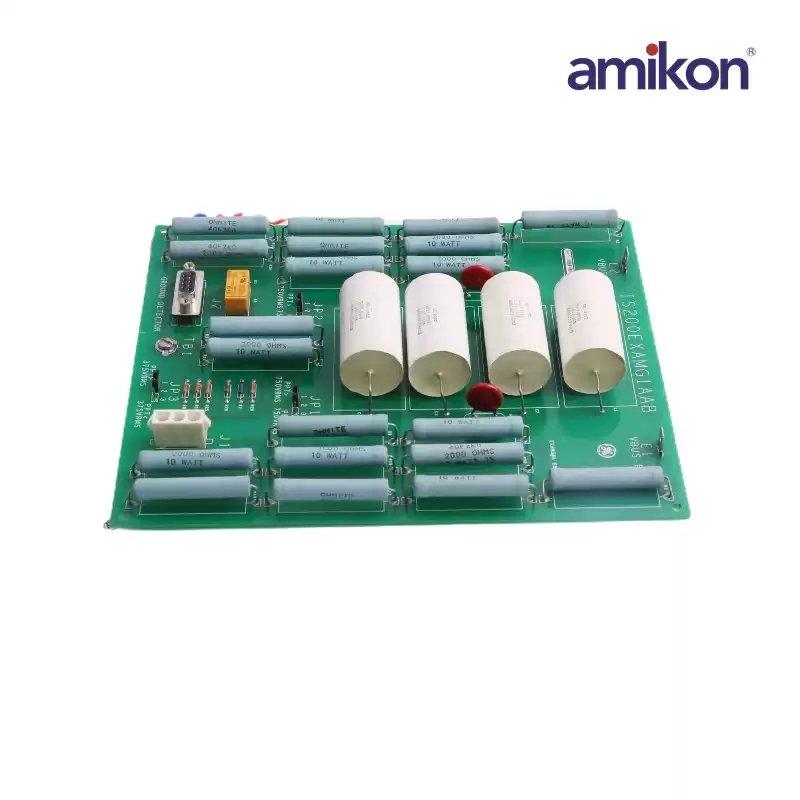

The IS200EXAMG1AAB module contains a sense resistor that is connected to a resistor network across the field. There are two female connectors on the board, there is a three-position plug as well as a nine-position cable connector. The cable connector will be labeled as the ground detector. Along with the female connectors, there is a single-screw connection that allows for surface wiring connections, two stab-on connectors which are labeled as Vbus-p (E1) and Vbus-n (E2), and three jumpers.
The IS200EXAMG1AAB can be used in conjunction with redundant systems, and the test signal needed will be sent through either the M1 or M2 connectors. This model has a switch that switches between the M1 and M2 controllers.This module is used as a bridge protection board and will typically drive the electrical center for the field winding with low-frequency AC voltage that will be relative to the ground.
|
