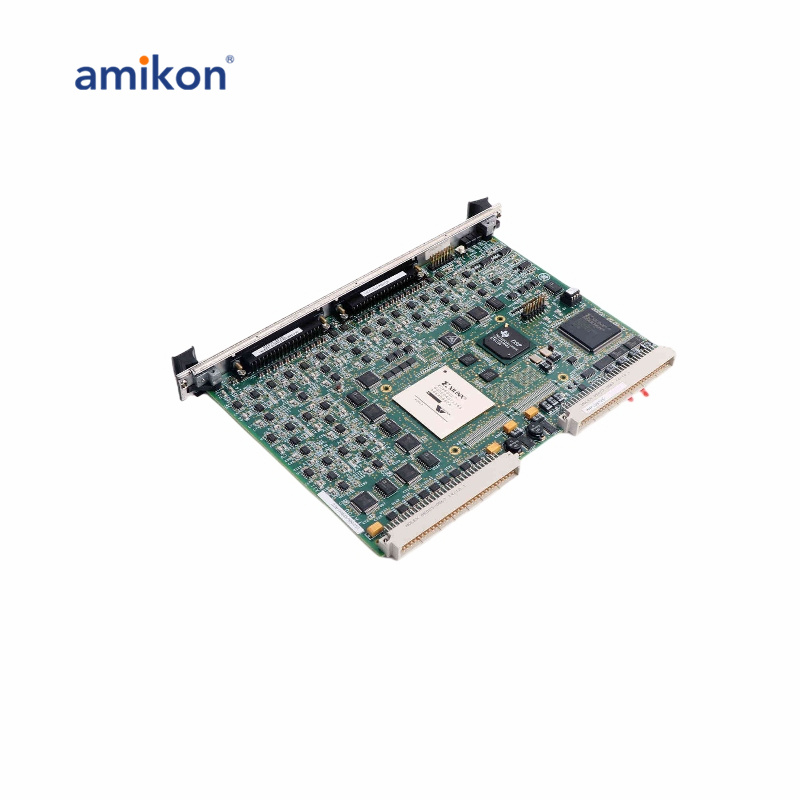

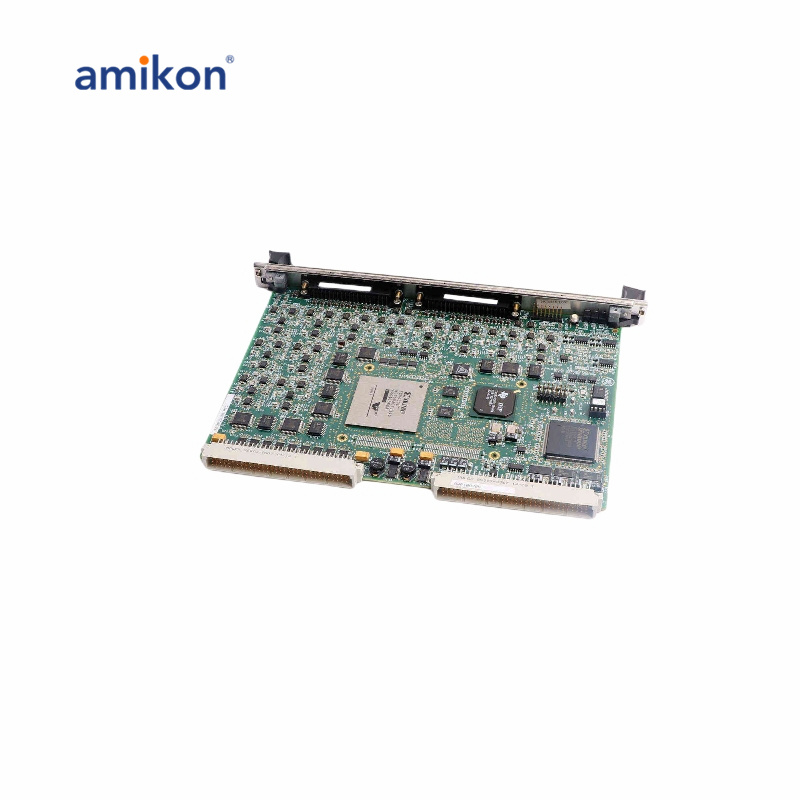

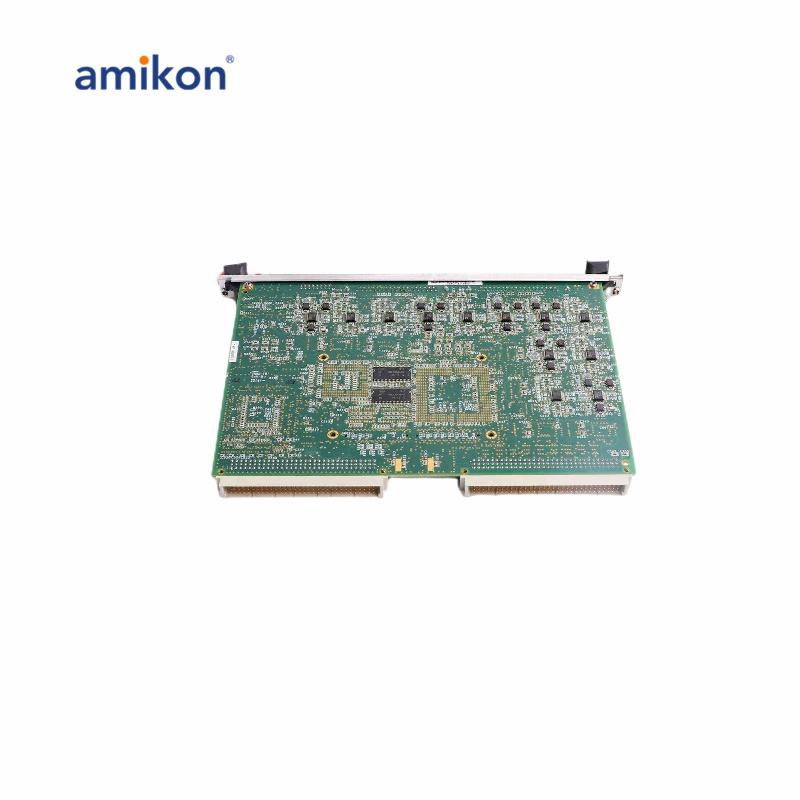

The IS215VAMBH1A is a GE Mark VI PCB component. The Mark VI system is one of the last of the Speedtronic systems for gas/steam turbine management and includes TMR (triple modular redundant) architecture that includes three individual Control Modules, IONets and power supplies.
|
|
|
IS215VAMBH1A Data sheet
|
IS215VAMBH1A is an Acoustic Monitoring board. It provides eighteen channels of signal conditioning through two TAMB boards and eighteen channels of acoustic monitoring through its sub-assembly.
|
|
Acoustic monitoring for frame 6, 7, or 9 size gas turbines is supported by this board plus one or two TAMB terminal boards. The IS215VAMBH1A has a high impedance dc bias, which allows it to detect an open connection between a TAMB board and a charge amplifier.
|
|
The dc bias control allows for options like RETx, SIGx and return line, or 28 V bias or ground applied to the signal line. Each channel provides a buffered BNC output, which is the input signal minus the dc bias.
|
|
Award-winning service
|
More than 25 in stock
|
Full 12-month warranty
|
We deliver worldwide
|
