Dimensions: 8.2x12.2x6cm
|
Weight:0.36kg
|
Product Package: Original Package
|
|
Condition: 100% New Original
|
Product Origin: USA
|
|
Full Description: New Factory Package Cleaned and Tested. With 1 Year Warranty.
|
|
IS220PAICH1B
|

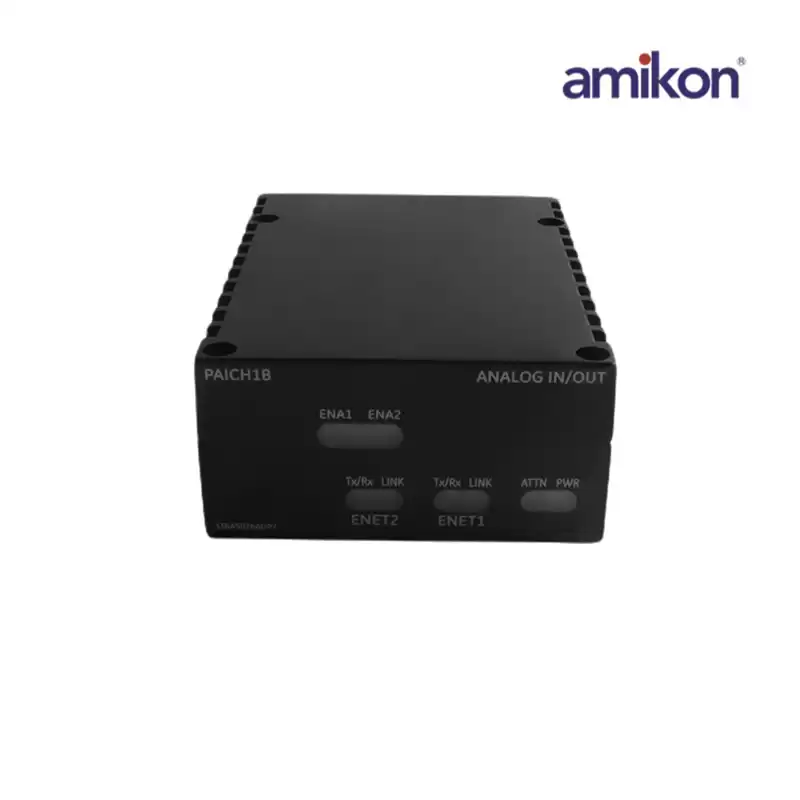

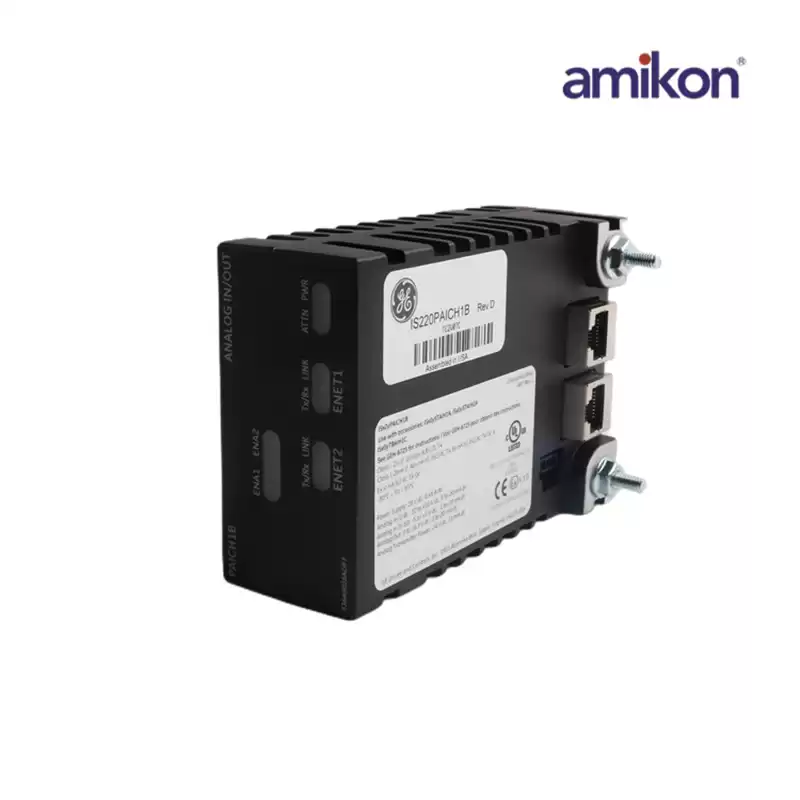

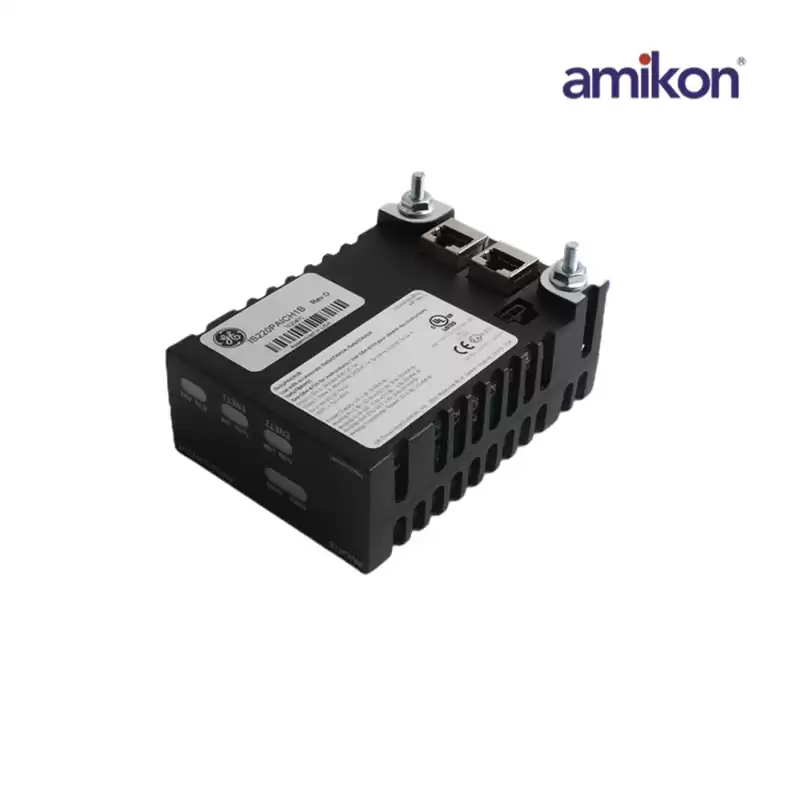

The IS220PAICH1B is a GE Analog I/O pack from the Mark VIe series. The PAIC pack serves as the electrical interface between one or two I/O Ethernet networks and an analog input terminal board. The pack includes a processor board shared by all Mark VIe distributed I/O packs and an acquisition board dedicated to the analog input function.
The processor board is linked to an acquisition board dedicated to the function of the I/O pack or module. When input power is applied, the soft-start circuit increases the voltage available on the processor board. The local power supplies are turned on in sequence, and the processor reset is disabled.
|
