Dimensions: 13cmx8.6cmx6.5cm
|
Weight: 0.4kg
|
Input Range: 105 mA
|
|
Series: Mark VI
|
Voltage Range: 280 Volts
|
|
Full Description: New Factory Package Cleaned and Tested. With 1 Year Warranty.
|
|

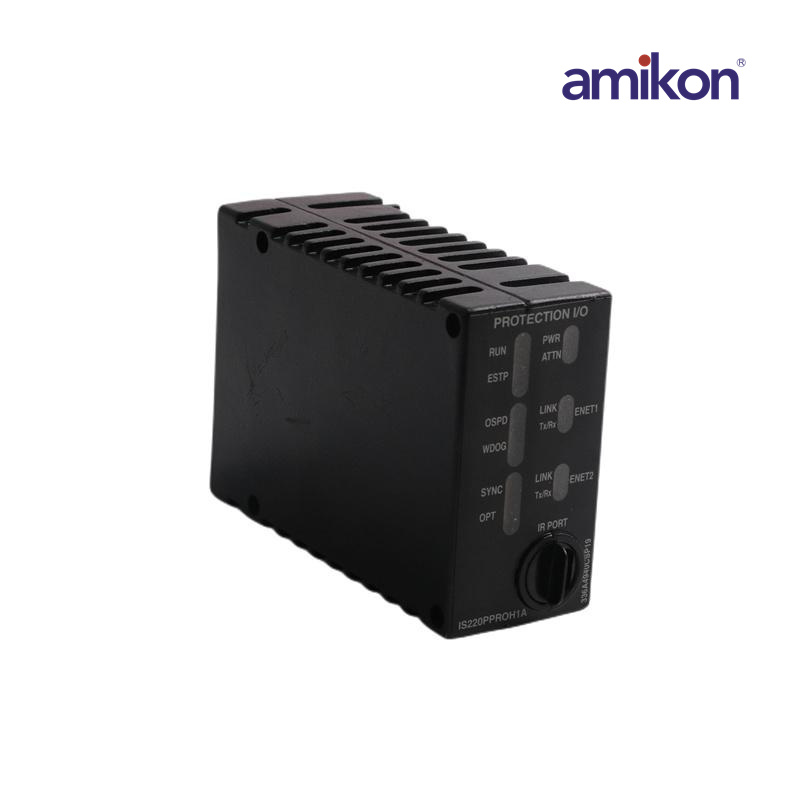

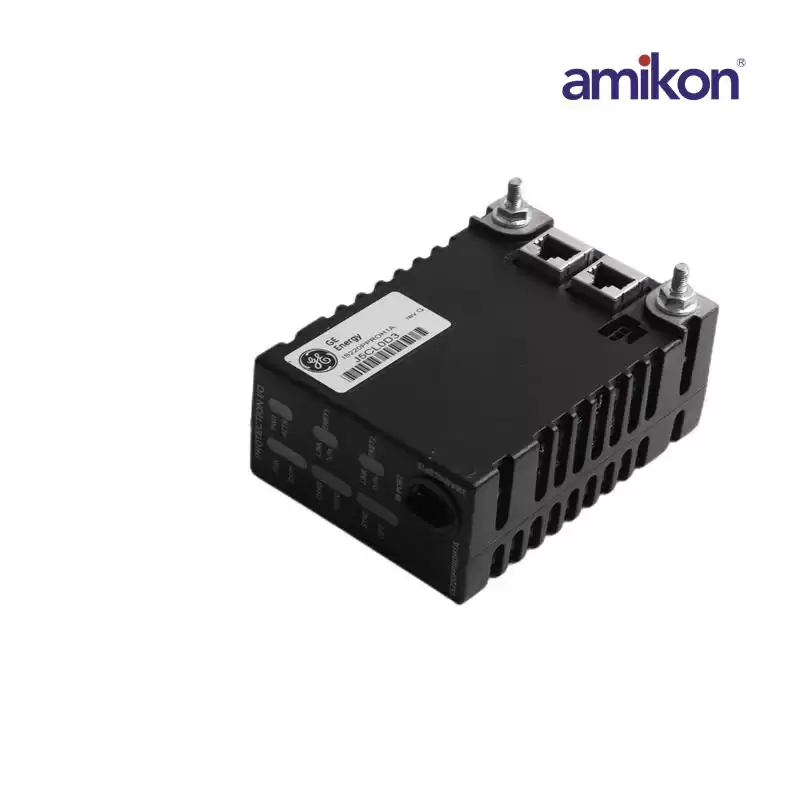

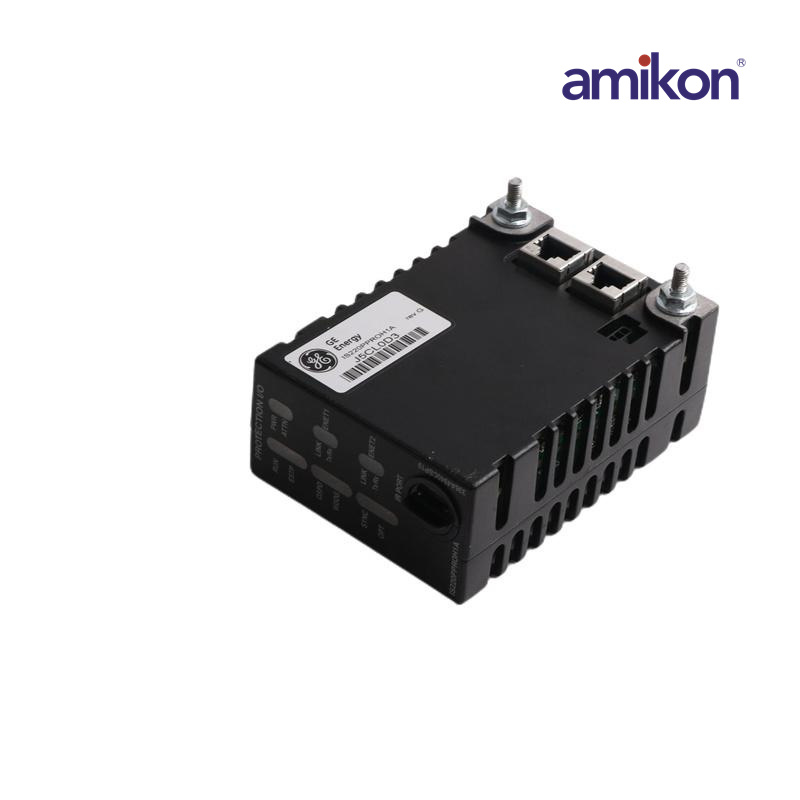

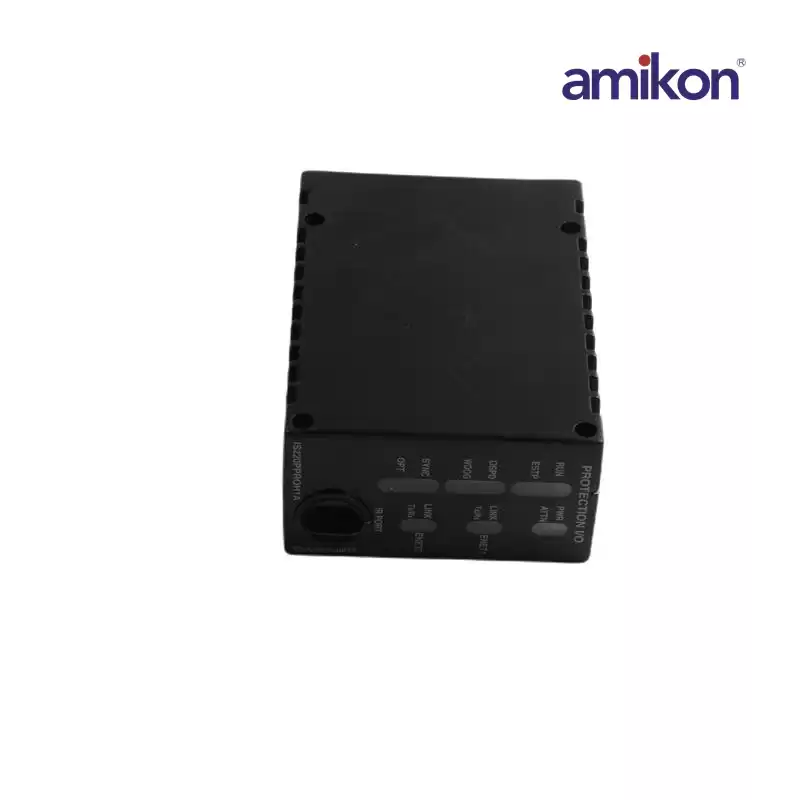

IS220PPRAH1A
|
The IS220PPRAH1A can be used in simplex, duplex, and triple modular redundant applications. This board can support E, J, K, S, and T standard thermocouples as well as mV inputs with a span of -8 to 45 mV. E, J, K, S, and T thermocouples can be either grounded or ungrounded and can be located up to 984 feet from the turbine I/O panel.
The IS220PPRAH1A offers a maximum software error/conformity error of .25 degrees Fahrenheit. Common mode voltage is +/- 5 volts with AC common-mode rejection of 100dB @50/60Hz. Common mode rejection includes filtering for both hardware and software.
|
